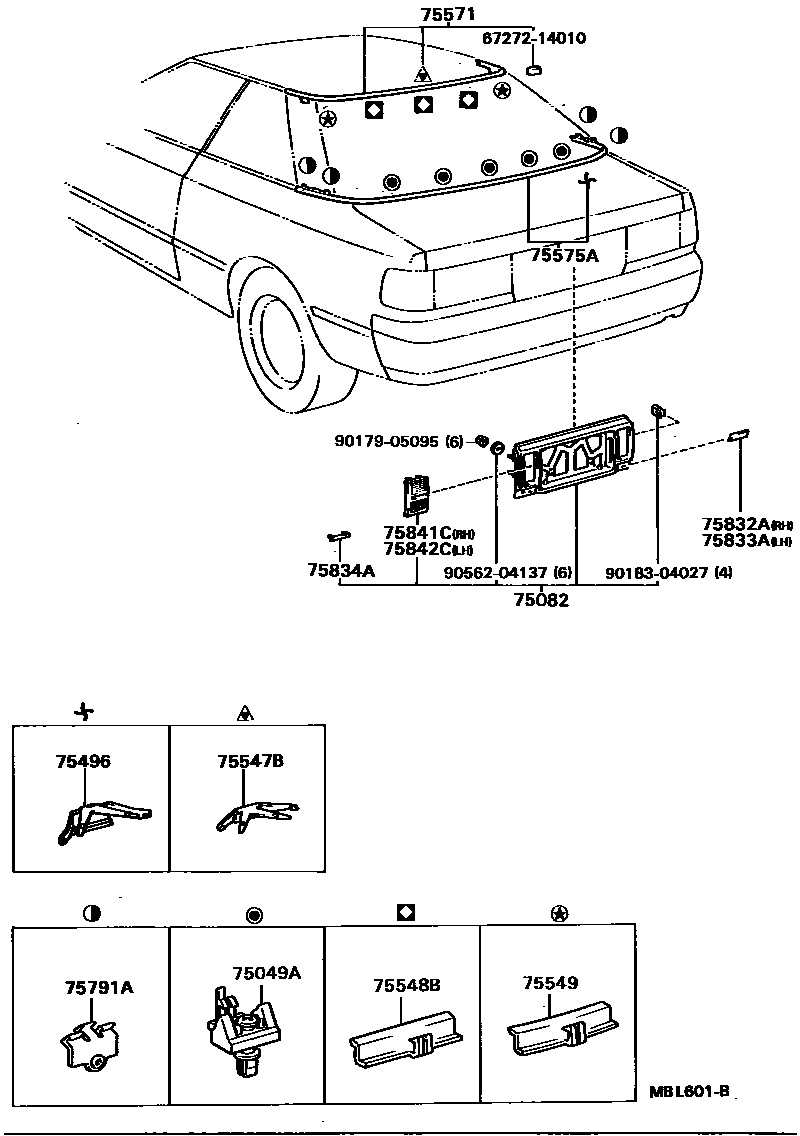

REAR MOULDING
75049ACLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75548BFASTENER, BACK WINDOW OUTSIDE MOULDING
75549FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
EVENT
75575AMOULDING, BACK WINDOW, OUTSIDE LOWER
EVENT
75791ACLIP, BELT MOULDING SIDE
75832APANEL, LOWER BACK FINISH, RH
EVENT,BLACK,202
RED MAICA,3H4
GRAY M,168
B BLUE MAICA M,8E4
SUPER WHITE 2,040
A SILVER M,920
SILVER M,23E
75833APANEL, LOWER BACK FINISH, LH
EVENT,BLACK,202
RED MAICA,3H4
GRAY M,168
B BLUE MAICA M,8E4
SUPER WHITE 2,040
A SILVER M,920
SILVER M,23E
75834AMOULDING, LOWER BACK FINISH PANEL
75841CMOULDING, LOWER BACK PANEL, RH
75842CMOULDING, LOWER BACK PANEL, LH
6727214010DUCT, FRONT DOOR AIR, LH
main67272-14010
9017905095
main90179-05095
9018304027
main90183-04027
9056204137
main90562-04137
18 parts on this diagram · 1 diagram in section
