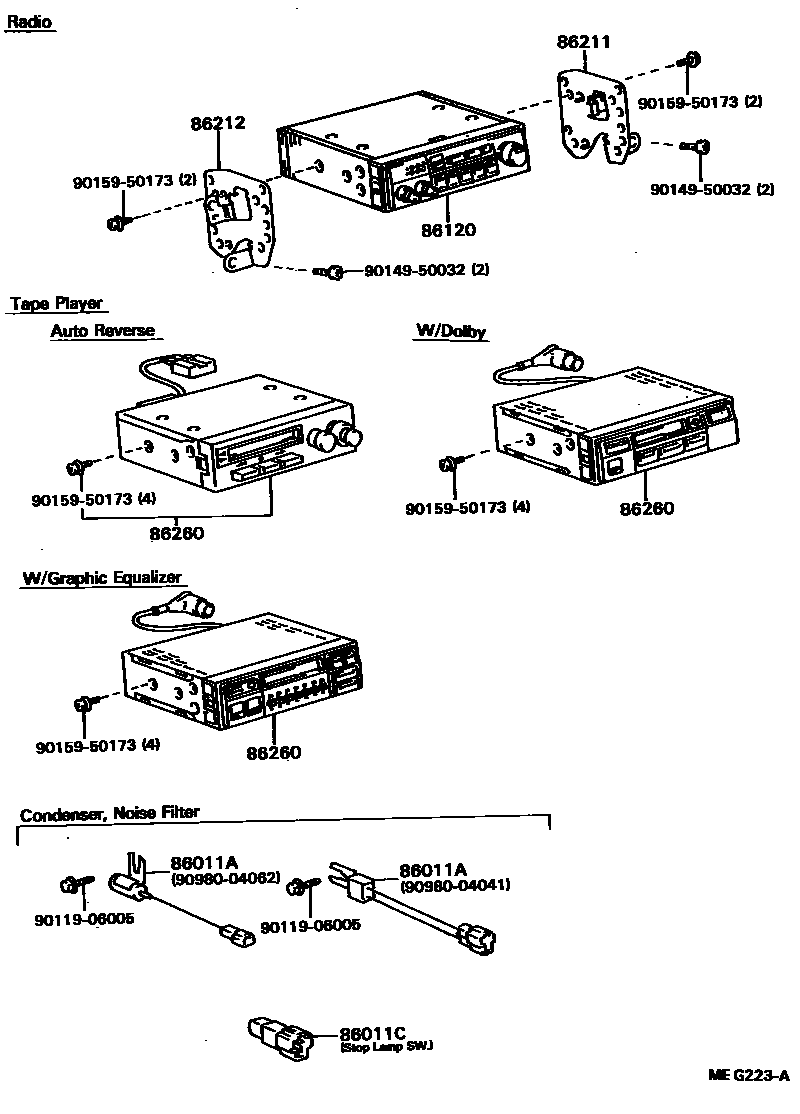

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04041iAT160,ST162198508-198708

IG COIL

main90980-04062iAT160,ST16#198508-198708

DEFOGGER

86011CFILTER, NOISE

main90980-05073iAT160,ST16#198508-198708

STOP LAMP SW

86120RECEIVER ASSY, RADIO

main86120-17020iAT160,ST16#..GT,GX198508-198708

AM/FM MPX 5PB

main86120-20360iAT160,ST16#..EXS,GT198508-198708

*17

main86120-20560iST16#..EXS,GT198508-198708

*20

86211BRACKET, RADIO, NO.1

main86211-20150iAT160,ST16#198508-198708

86212BRACKET, RADIO, NO.2

main86212-20190iAT160,ST16#198508-198708

86260TAPE PLAYER ASSY

main86260-19055iAT160,ST16#..GT,GX198508-198708

AUTO REVERSE

main86260-20140iAT160,ST16#..EXS,GT198508-198708

W/DOLBY

main86260-20150iAT160,ST16#..EXS,GT198508-198708

W/GRAPHIC EQUALIZER

9011906005

main90119-06005

9014950032

main90149-50032

9015950173

main90159-50173

9098004041

main90980-04041

9098004062

main90980-04062

11 parts on this diagram · 1 diagram in section
