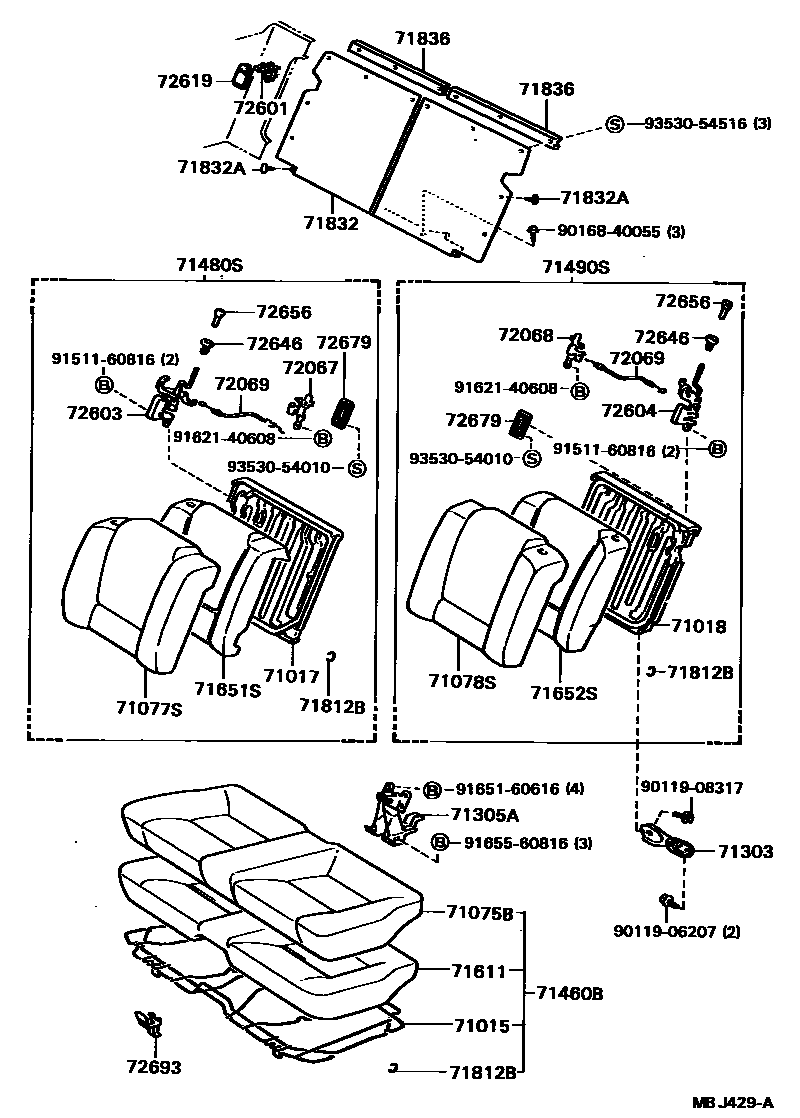

REAR SEAT & SEAT TRACK

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-20190iAT160,ST16#198508-198708

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-20240iAT160,ST16#198508-198708

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-20050iAT160,ST16#198508-198708

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-20340-03iST160..GX198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71065-20340-04iST160..GX198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71065-20350-03iST160..EXS198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71065-20350-04iST160..EXS198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71065-20360-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71065-20360-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2B460-03iST160..EXS198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71077-2B460-04iST160..EXS198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71077-2B470-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71077-2B470-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71077-2B700-03iST160..GX198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71077-2B700-04iST160..GX198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-20190-03iST160..GX198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71078-20190-04iST160..GX198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71078-20200-03iST160..EXS198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71078-20200-04iST160..EXS198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71078-20210-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71078-20210-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-16010×2iAT160,ST16#198508-198708

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20060iAT160,ST16#198508-198708

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-20330-03iST160..GX198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71560-20330-04iST160..GX198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71560-20340-03iST160..EXS198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71560-20340-04iST160..EXS198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71560-20350-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71560-20350-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2B570-03iST160..GX198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71480-2B570-04iST160..GX198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71480-2B580-03iST160..EXS198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71480-2B580-04iST160..EXS198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71480-2B590-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71480-2B590-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-20220-03iST160..GX198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71490-20220-04iST160..GX198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71490-20230-03iST160..EXS198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71490-20230-04iST160..EXS198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71490-20240-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71490-20240-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

71611PAD, REAR SEAT CUSHION

main71611-20340iAT160,ST16#198508-198708

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-20400iST160198508-198708

main71651-20410iAT160,ST162198508-198708

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-20260iST160198508-198708

main71652-20270iAT160,ST162198508-198708

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90468-18071iAT160,ST16#198508-198708

71832CARPET OR MAT, REAR SEATBACK

main71880-20060-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main71880-20060-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

71832ACLIP, REAR SEATBACK CARPET OR MAT

main90467-06016-10×12iAT160,ST16#198508-198708

BLUE,BLUE,TRIM8#

main90467-06016-33×12iAT160,ST16#198508-198708

GRAY,GRAY,TRIM1#

71836PLATE, REAR SEATBACK CARPET OR MAT SUPPORT, UPPER

main58583-20030-03×2iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main58583-20030-04×2iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-20010iAT160,ST16#198508-198708

72068LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

main72068-20010iAT160,ST16#198508-198708

72069CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL

main72069-20010×2iAT160,ST16#198508-198708

72601STRIKER SUB-ASSY, REAR SEAT LOCK

main72610-20010×2iAT160,ST16#198508-198708

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72603-20010iAT160,ST16#198508-198708

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72604-20010iAT160,ST16#198508-198708

72619COVER, REAR SEATBACK LOCK STRIKER

main72615-20010-03×2iAT160,ST16#198508-198708

GRAY,GRAY,TRIM1#

main72615-20010-14×2iAT160,ST16#198508-198708

BLUE,BLUE,TRIM8#

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-20020-03×2iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main72646-20020-04×2iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

72656BUTTON, REAR SEATBACK STOP RELEASE

main72661-12010-03×2iAT160,ST16#198508-198708

GRAY,GRAY,TRIM1#

main72661-12010-14×2iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-16010-04×2iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

main72679-16010-13×2iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20010×2iAT160,ST16#198508-198708

9011906207

main90119-06207

9011908317

main90119-08317

9016840055

main90168-40055

9151160816

main91511-60816

9162140608

main91621-40608

9165160616

main91651-60616

9165560816

main91655-60816

9353054010

main93530-54010

9353054516

main93530-54516

38 parts on this diagram · 1 diagram in section
