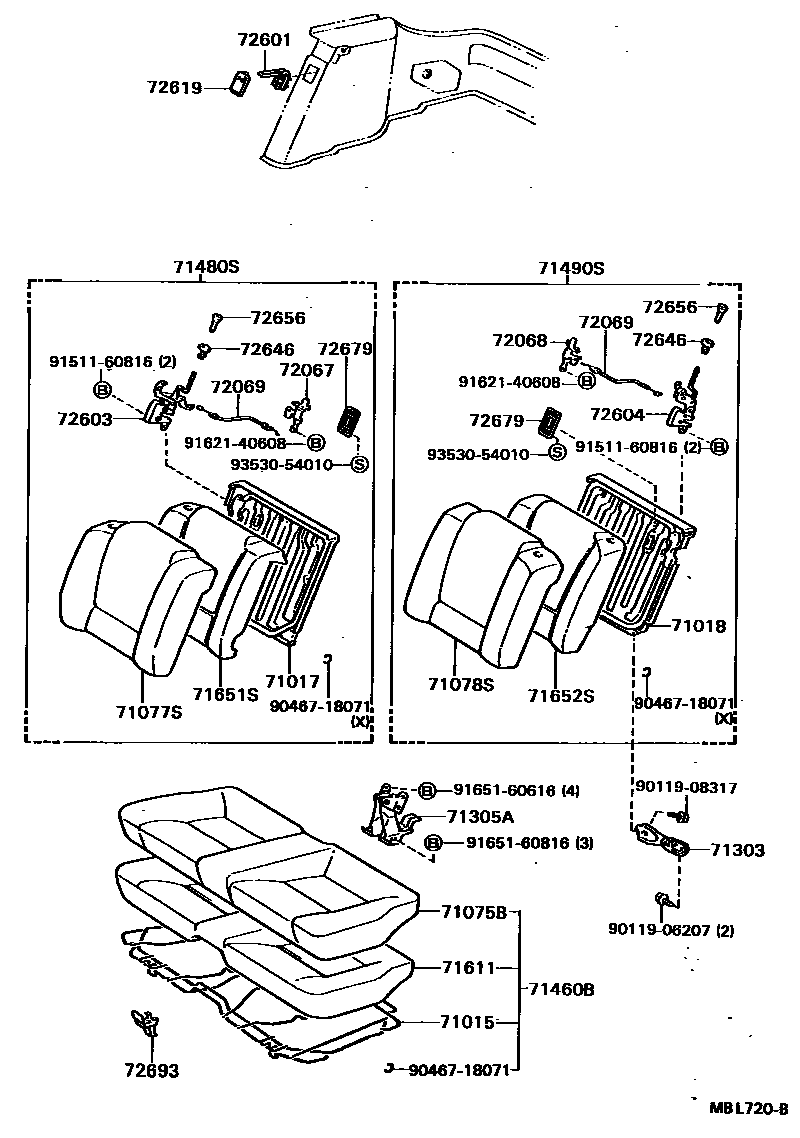

REAR SEAT & SEAT TRACK

0001 1 0002 1

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-20190iST160,162,163..LB198708-198908

main71015-20220iST162..CV198710-198908

main71015-20280iST165198710-198908

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-20240iST16#..LB198708-198908

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-20050iST16#..LB198708-198908

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-20462-03iST162..LB198708-198908

GRAY,TRIM2#

main71065-20462-04iST162..LB198708-198908

DEEP BLUE,TRIM8#

main71065-20522-03iST160,163..SX198708-198908

GRAY,TRIM2#

main71065-20522-04iST160,163..SX198708-198908

DEEP BLUE,TRIM8#

main71065-20541-01iST160,163..ST198708-198908

BLACK,TRIM2#

main71065-20541-04iST160..ST;ST163..4FC..ST198708-198908

DEEP BLUE,TRIM8#

main71065-20590-13iST165198710-198908

GRAY,TRIM2#

main71065-20600-13iST162..CV198710-198808

GRAY,TRIM2#

main71065-20601-03iST162..CV198808-198908

GRAY,TRIM2#

main71075-2B640-03iST162..GT198901-198907

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2B562-03iST162..LB198708-198908

GRAY,TRIM2#

main71077-2B562-04iST162..LB198708-198908

DEEP BLUE,TRIM8#

main71077-2B682-03iST160,163..SX198708-198908

GRAY,TRIM2#

main71077-2B682-04iST160,163..SX198708-198908

DEEP BLUE,TRIM8#

main71077-2B701-01iST160,163..ST198708-198908

BLACK,TRIM2#

main71077-2B701-04iST160..ST;ST163..4FC..ST198708-198908

DEEP BLUE,TRIM8#

main71077-2B750-13iST162..GT198901-198907

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-20272-03iST162..LB198708-198908

GRAY,TRIM2#

main71078-20272-04iST162..LB198708-198908

DEEP BLUE,TRIM8#

main71078-20322-03iST160,163..SX198708-198908

GRAY,TRIM2#

main71078-20322-04iST160,163..SX198708-198908

DEEP BLUE,TRIM8#

main71078-20341-01iST160,163..ST198708-198908

BLACK,TRIM2#

main71078-20341-04iST160..ST;ST163..4FC..ST198708-198908

DEEP BLUE,TRIM8#

main71078-20380-13iST162..GT198901-198907

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-16010×2iST16#198708-198908

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20050iST16#..LB198708-198908

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-20381-01iST160,163..ST198708-198908

BLACK,TRIM2#

main71560-20381-04iST160..ST;ST163..4FC..ST198708-198908

DEEP BLUE,TRIM8#

main71560-20392-03iST160,163..SX198708-198908

GRAY,TRIM2#

main71560-20392-04iST160,163..SX198708-198908

DEEP BLUE,TRIM8#

main71560-20402-03iST162..LB198708-198908

GRAY,TRIM2#

main71560-20402-04iST162..LB198708-198908

DEEP BLUE,TRIM8#

main71560-20531-03iST165198710-198908

GRAY,TRIM2#

main71560-20540-13iST162..CV198710-198808

GRAY,TRIM2#

main71560-20541-03iST162..CV198808-198908

GRAY,TRIM2#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2B631-01iST160,163..ST198708-198908

BLACK,TRIM2#

main71480-2B631-04iST160..ST;ST163..4FC..ST198708-198908

DEEP BLUE,TRIM8#

main71480-2B642-03iST160,163..SX198708-198908

GRAY,TRIM2#

main71480-2B642-04iST160,163..SX198708-198908

DEEP BLUE,TRIM8#

main71480-2B652-03iST162..LB198708-198908

GRAY,TRIM2#

main71480-2B652-04iST162..LB198708-198908

DEEP BLUE,TRIM8#

main71480-2B800-13iST165198710-198908

GRAY,TRIM2#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-20261-01iST160,163..ST198708-198908

BLACK,TRIM2#

main71490-20261-04iST160..ST;ST163..4FC..ST198708-198908

DEEP BLUE,TRIM8#

main71490-20272-03iST160,163..SX198708-198908

GRAY,TRIM2#

main71490-20272-04iST160,163..SX198708-198908

DEEP BLUE,TRIM8#

main71490-20332-03iST162..LB198708-198908

GRAY,TRIM2#

main71490-20332-04iST162..LB198708-198908

DEEP BLUE,TRIM8#

main71490-20370-13iST165198710-198908

GRAY,TRIM2#

71611PAD, REAR SEAT CUSHION

main71611-20340iST160,162,163..LB198708-198908

main71611-20381iST165198710-198908

main71611-20390iST162..CV198710-198908

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-20400iST160,163198708-198908

main71651-20410iST162,165..LB198708-198908

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-20260iST160,163198708-198908

main71652-20270iST162,165..LB198708-198908

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-20010iST16#..LB198708-198908

main72067-20020iST162..CV198710-198908

72068LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

main72068-20010iST16#..LB198708-198908

main72068-20020iST162..CV198710-198908

72069CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL

main72069-20010×2iST16#..LB198708-198908

72601STRIKER SUB-ASSY, REAR SEAT LOCK

main72601-12080×2iST162..CV198710-198908

main72610-20010×2iST16#..LB198708-198908

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72603-20010iST16#..LB198708-198908

main72603-20020iST162..CV198710-198908

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72604-20010iST16#..LB198708-198908

main72604-20020iST162..CV198710-198908

72619COVER, REAR SEATBACK LOCK STRIKER

main72615-20010-01×2iST16#..LB198708-198908

BLACK,TRIM2#

main72615-20010-14×2iST163..4FC;ST160,162..LB;ST163..5F..SX198708-198908

BLUE,TRIM8#

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-20020-01iST16#..LB198708-198908

BLACK,TRIM2#

main72646-20020-04iST163..4FC;ST160,162..LB;ST163..5F..SX198708-198908

DEEP BLUE,TRIM8#

72656BUTTON, REAR SEATBACK STOP RELEASE

main72661-12010-01iST16#..LB198708-198908

BLACK,TRIM2#

main72661-12010-14iST163..4FC;ST160,162..LB;ST163..5F..SX198708-198908

DEEP BLUE,TRIM8#

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-16010-01×2iST16#..LB198708-198908

BLACK,TRIM2#

main72679-16010-04×2iST163..4FC;ST160,162..LB;ST163..5F..SX198708-198908

DEEP BLUE,TRIM8#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-14040×2iST162..CV198710-198908

main72693-20010×2iST16#..LB198708-198908

9011906207

main90119-06207

9011908317

main90119-08317

9046718071

main90467-18071

9151160816

main91511-60816

9162140608

main91621-40608

9165160616

main91651-60616

9165160816

main91651-60816

9353054010

main93530-54010

33 parts on this diagram · 2 diagrams in section
