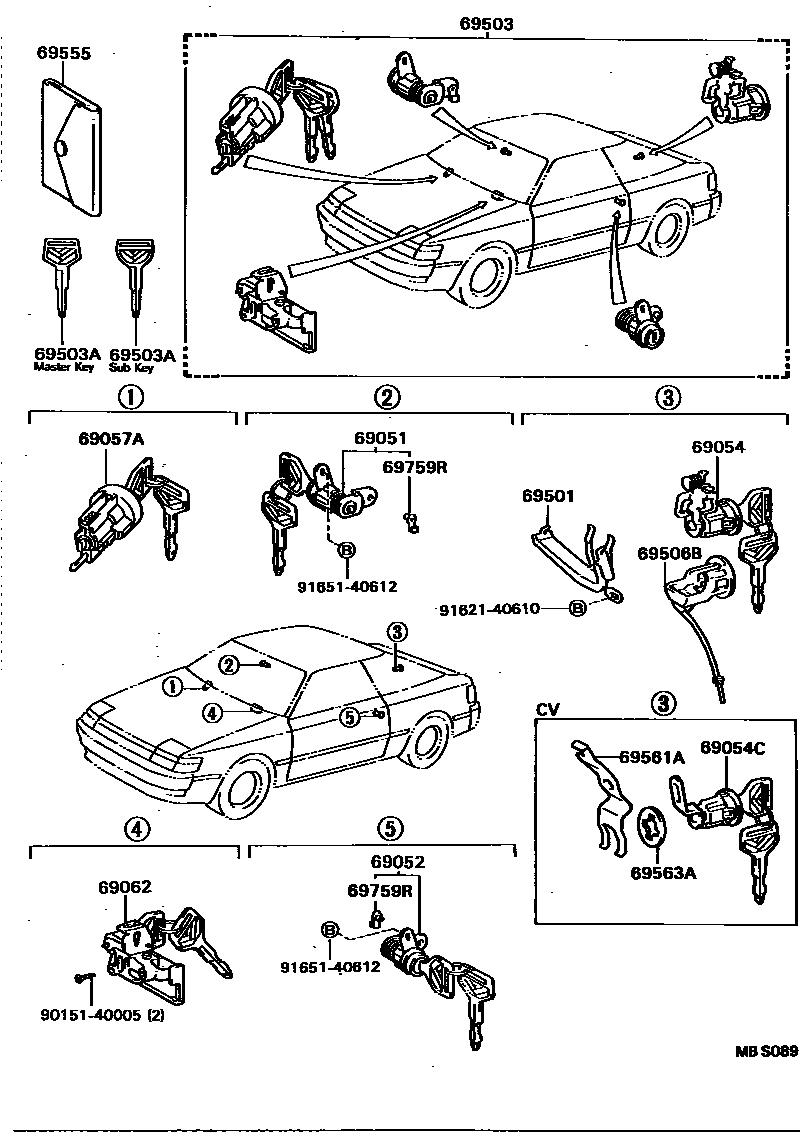

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20130iST16#..LB198708-198908

main69051-20160iST162..CV198710-198908

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20130iST16#..LB198708-198908

main69052-20160iST162..CV198710-198908

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-20181iST16#..LB198708-198908

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-20160iST162..CV198710-198908

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20070iST160,162,163..GT,ST,SX198708-198908

main69057-20080iST160,163..SX; ST162,165..GT4,ZR; ST162..GT198708-198908

main69057-20120iST162..CV198710-198908

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20060iST162..CV198710-198908

main69056-20070iST16#..LB198708-198908

69501RETAINER SUB-ASSY, BACK DOOR CYLINDER

main69501-20030iST16#..LB198708-198908

69503CYLINDER SET, LOCK

main69005-20400iST162..CV198710-198908

main69005-20461iST160,163..SX; ST162,165..GT4,ZR; ST162..GT198708-198908

main69005-20471iST160,162,163..GT,ST,SX198708-198908

69503AKEY, BLANK

main90999-00085iST162..CV198710-198908

main90999-00094iST162..CV198710-198908

main90999-00106iST162..CV198710-198908

main90999-00112iST16#..LB198708-198908

main90999-00113iST16#..LB198708-198908

main90999-00114iST16#..LB198708-198908

69506BHOSE SUB-ASSY, BACK DOOR LOCK CYLINDER

main69506-20010iST16#..LB198708-198908

69555COVER, KEY

main69555-20010iST16#198708-198908

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-20070iST162..CV198710-198908

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-20010iST162..CV198710-198908

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iST16#198708-198908

main69759-30050iST16#198708-198908

9015140005

main90151-40005

9162140610

main91621-40610

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
