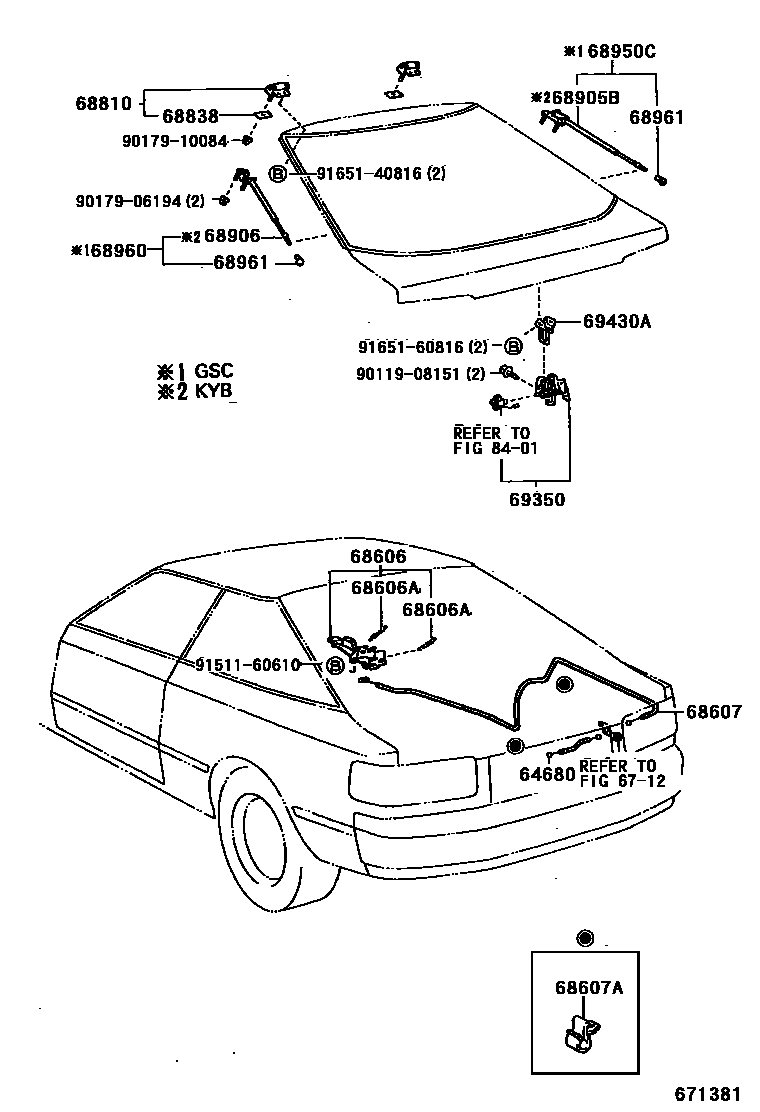

BACK DOOR LOCK & HANDLE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-20010iST16#..LB198708-198908

6712LOCK CYLINDER SET

→ Go to FIG 67-12

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-20070iST16#..LB198708-198908

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004×2iST16#..LB198708-198908

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-20251iST16#..LB198708-198908

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010×2iST16#..LB198708-198908

68810HINGE ASSY, BACK DOOR, UPPER

main68801-20030×2iST16#..LB198708-198808

main68801-20031×2iST16#..LB198810-198908

68838PAD, BACK DOOR HINGE, NO.1

main68838-20010×2iST16#..LB198708-198808

main68838-20011×2iST16#..LB198808-198908

68905BSTAY SUB-ASSY, BACK DOOR, RH

main68905-20011iST160,163..ST198708-198808

main68905-20012iST163..ST198808-198908

main68905-20021iST160,163..ST198708-198808

main68905-20022iST163..ST198808-198908

main68905-20031iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198808

main68905-20032iST16#..GT,GT4,SX,ZR; ST163..ST198808-198908

68906STAY SUB-ASSY, BACK DOOR, LH

main68906-20011iST160,163..ST198708-198808

main68906-20012iST163..ST198808-198908

main68906-20021iST160,163..ST198708-198808

main68906-20022iST163..ST198808-198908

main68906-20031iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198808

main68906-20032iST16#..GT,GT4,SX,ZR; ST163..ST198808-198908

68950CSTAY ASSY, BACK DOOR, RH

main68950-20091iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198808

main68950-20092iST16#..GT,GT4,SX,ZR; ST163..ST198808-198908

68960STAY ASSY, BACK DOOR, LH

main68960-20031iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198808

main68960-20032iST16#..GT,GT4,SX,ZR; ST163..ST198808-198908

68961BOLT, BACK DOOR STAY

main68961-20060×2iST16#..LB198708-198908

69350LOCK ASSY, BACK DOOR

main69350-20030iST16#..LB198708-198908

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-20060iST16#..LB198708-198908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908151

main90119-08151

9017906194

main90179-06194

9017910084

main90179-10084

9151160610

main91511-60610

9165140816

main91651-40816

9165160816

main91651-60816

22 parts on this diagram · 1 diagram in section
