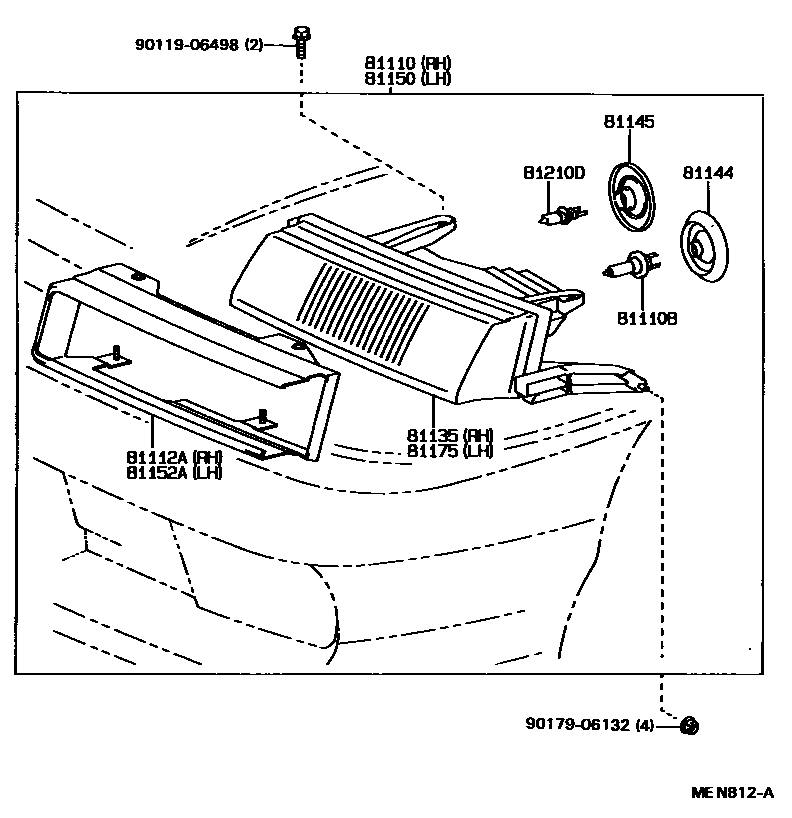

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-2B460iST18#198909-199108

main81110-2B610iST18#199108-199309

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iST18#198909-199309

81112ARIM, HEADLAMP, RH

main81116-2B460iST18#198909-199108

81135UNIT ASSY, HEADLAMP, RH

main81105-2B460iST18#198909-199108

main81105-2B610iST18#199108-199309

81144COVER, HEADLAMP, NO.1

main81139-2B460×2iST18#198909-199309

81145COVER, HEADLAMP, NO.2

main81138-2B460×2iST18#198909-199309

81150HEADLAMP ASSY, LH

main81150-2B460iST18#198909-199108

main81150-2B570iST18#199108-199309

81152ARIM, HEADLAMP, LH

main81156-2B460iST18#198909-199108

81175UNIT ASSY, HEADLAMP, LH

main81106-2B460iST18#198909-199108

main81106-2B570iST18#199108-199309

81210DBULB, FOG LAMP

main90981-13041×2iST18#198909-199309

9011906498

main90119-06498

9017906132

main90179-06132

12 parts on this diagram · 2 diagrams in section
