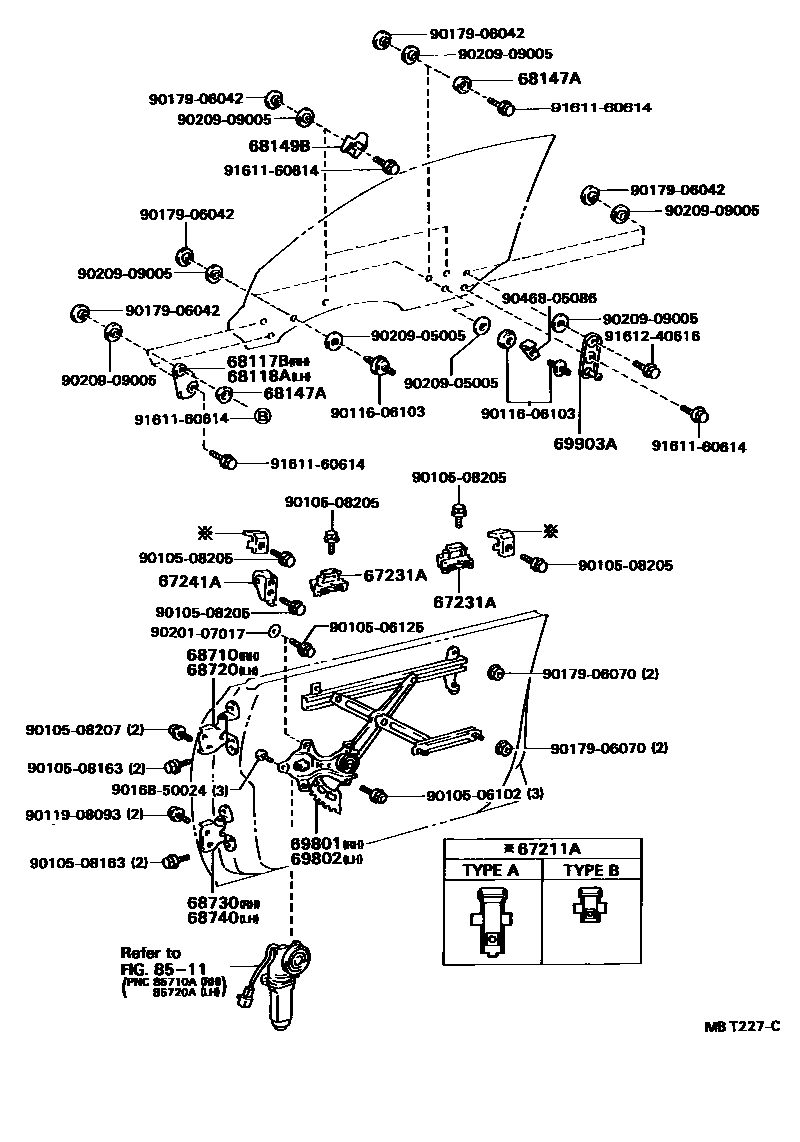

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-20030×2iST18#198909-199008

TYPE A,STUMPED NO.2

main67211-20040×2iST18#199008-199105

TYPE B, STAMPED NO.2

main67211-20050×2iST18#199008-199105

TYPE A, STAMPED NO.1

main67211-20060×2iST18#199008-199105

TYPE A, STAMPED NO.3

main67211-20070×2iST18#198909-199105

TYPE B, STAMPED NO.1

main67211-20080×2iST18#198909-199105

TYPE B, STAMPED NO.3

main67211-20110×2iST18#199105-199309

main67211-20120×2iST18#199105-199309

67231ASUPPORT, FRONT DOOR TRIM

main67231-20080×2iST18#198909-199004

STAMPED NO.1 R

main67231-20081×2iST18#199108-199309

STAMPED NO.1 R

main67231-20090×2iST18#198909-199004

STAMPED NO.2 R

main67231-20091×2iST18#199004-199108

STAMPED 2R

main67231-20100×2iST18#198909-199004

STAMPED NO.3 R

main67231-20101×2iST18#199004-199108

STAMPED 3R

main67232-20030×2iST18#198909-199004

STAMPED NO.1 L

main67232-20031×2iST18#199004-199108

STAMPED 1L

main67232-20040×2iST18#198909-199004

STAMPED NO.2 L

main67232-20041×2iST18#199108-199309

STAMPED NO.2 L

main67232-20050×2iST18#198909-199004

STAMPED NO.3 L

main67232-20051×2iST18#199004-199108

STAMPED 3L

67241ASTABILIZER, DOOR GLASS, INNER

main67241-20040×2iST18#198909-199309

68117BPLATE, FRONT DOOR GLASS, RH

main68117-20040iST18#198909-199309

68118APLATE, FRONT DOOR GLASS, LH

main68118-20040iST18#198909-199309

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-14020×4iST18#198909-199309

68149BSTABILIZER, FRONT DOOR GLASS MALE

main68149-20010×4iST18#198909-199309

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22060iST18#198909-199309

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22050iST18#198909-199309

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20110iST18#198909-199309

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20110iST18#198909-199309

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20190iST18#198909-199309

A51-A54

main69801-20200iST18#199108-199309

A41,A42

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20210iST18#198909-199309

A51-A54

main69802-20220iST18#198909-199108

A41, A42

69903ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH

main69903-20110×2iST18#198909-199309

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506102

main90105-06102

9010506125

main90105-06125

9010508163

main90105-08163

9010508205

main90105-08205

9010508207

main90105-08207

9011606103

main90116-06103

9011908093

main90119-08093

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020107017

main90201-07017

9020905005

main90209-05005

9020909005

main90209-09005

9046805086

main90468-05086

9161160614

main91611-60614

9161240616

main91612-40616

31 parts on this diagram · 1 diagram in section
