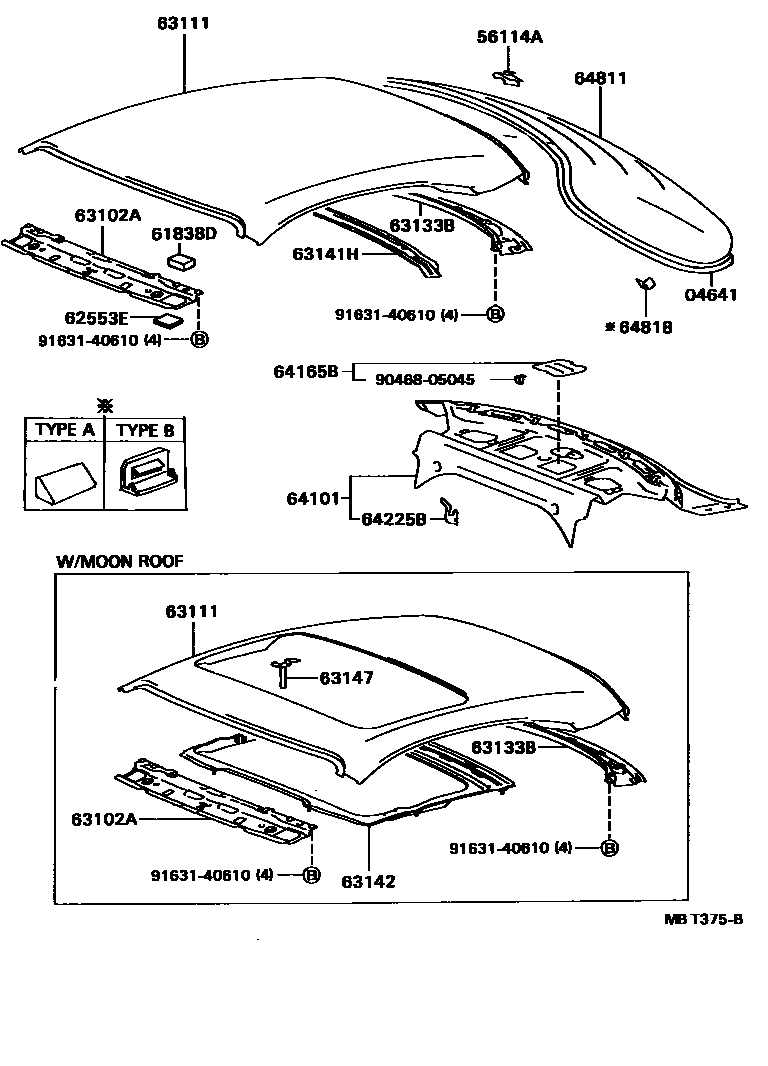

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iST18#198909-199301

56114ARETAINER, BACK WINDOW GLASS

main56114-20020×2iST18#198909-199309

61838DPLATE, NOISE CONTROL, NO.5

main61838-20030×2iST18#198909-199309

62553EPAD, PILLAR, NO.3

main62553-20050×2iST18#198909-199309

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20200iST18#198909-198910

main63102-20210iST18#198909-198910

main63102-20901iST18#198910-199309

main63102-20902iST18#..GLIM,SLIM,X199108-199309

63111PANEL, ROOF

main63111-20430iST18#198909-199309

main63111-20440iST18#198909-199108

63133BFRAME, BACK WINDOW

main63133-20190iST18#198909-199309

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20140iST18#198909-199309

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20070iST18#198909-199108

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-20030×2iST18#..GLIM,SLIM,X199108-199309

64101PANEL SUB-ASSY, UPPER BACK

main64101-20500iST180,181..F,S198909-199309

main64101-20510iST18#..GLIM,SLIM,X198909-199309

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20080×2iST18#198909-199309

64225BHANGER, REAR SEAT CUSHION SUPPORT

main64225-20020iST180..F198909-199309

64811GLASS, BACK WINDOW

main64811-2B230iST180,181..X;ST182,183..GLIM,SLIM198909-199309

main64811-2B240iST180,181..X;ST182,183..GLIM,SLIM; ST182,183..X198909-199309

main64811-2B300iST180,181..F,S198909-199309

main64811-2B310iST180,181..F,S199108-199309

main64811-2B320iST180,181..X;ST182,183..GLIM,SLIM198909-199309

main64811-2B330iST180,181..X;ST182,183..GLIM,SLIM; ST182,183..X198909-199309

main64811-2B340iST180,181..F,S198909-199309

main64811-2B350iST180,181..F,S199108-199309

64818SPACER, BACK WINDOW GLASS

main64818-22060×9iST18#198909-199309

main67272-20010×10iST18#199301-199309

9046805045

main90468-05045

9163140610

main91631-40610

17 parts on this diagram · 2 diagrams in section
