SIDE MEMBER

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-20490iST18#198909-199309

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-20420iST18#198909-199309

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-20060iST18#198909-199309

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-20070iST18#198909-199309

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-20090iST18#198909-199309

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-20090iST18#198909-199309

61231RAIL, ROOF SIDE, INNER RH

main61231-20340iST18#198909-199309

61232RAIL, ROOF SIDE, INNER LH

main61232-20330iST18#198909-199309

61339BSEAL, CENTER BODY PILLAR, INNER NO.1

main61339-20010×2iST18#198909-199309

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-20130iST18#198909-199309

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-20130iST18#198909-199309

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-20060iST18#198909-199309

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-20060iST18#198909-199309

61411PANEL, ROCKER, OUTER RH

main61401-20340iST18#198909-199309

61412PANEL, ROCKER, OUTER LH

main61402-20340iST18#198909-199309

61431PANEL, ROCKER, OUTER REAR RH

main61431-20010iST18#198909-199309

61432PANEL, ROCKER, OUTER REAR LH

main61432-20010iST18#198909-199309

61611PANEL, QUARTER, RH

main61601-2B640iST18#198909-199309

61612PANEL, QUARTER, LH

main61602-2B770iST18#198909-199309

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-20160iST18#198909-199309

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-20160iST18#198909-199309

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-20110iST18#198909-199309

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-20110iST18#198909-199309

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-20250iST18#198909-199309

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20230iST18#198909-199309

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-20916iST18#198909-199309

main61607-20917iST180; ST181,182,183199108-199309

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-20911iST18#198909-199309

main61608-20912iST18#..EFI,TWC198909-199309

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-20080iST18#198909-199309

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-20080iST18#198909-199309

61711PANEL, ROOF SIDE, OUTER RH

main61711-20901iST18#198909-199309

61712PANEL, ROOF SIDE, OUTER LH

main61712-20901iST18#198909-199309

61731BPANEL, ROOF SIDE, INNER RH

main61731-20250iST18#198909-199309

61732BPANEL, ROOF SIDE, INNER LH

main61732-20250iST18#198909-199309

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-20160iST18#198909-199309

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-20150iST18#198909-199309

61817BCOVER, ROOF SIDE, INNER LOWER RH

main61817-20010iST18#198909-199309

61818BCOVER, ROOF SIDE, INNER LWR LH

main61817-20010iST18#198909-199309

61824PLATE, NOISE CONTROL, NO.1

main61824-20120iST18#198909-199309

61825APLATE, NOISE CONTROL, NO.2

main61825-20110iST18#198909-199307

61826APLATE, NOISE CONTROL, NO.3

main61826-20060iST18#198909-199307

61827APLATE, NOISE CONTROL, NO.4

main61827-20020×4iST18#198909-199307

T=2.0

main90333-30002×4iST18#199205-199307

62475BSEAL, ROOF SIDE, INNER

main62475-20230×2iST18#198909-199309

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64225-20020iST18#198909-199309

64226AHANGER, REAR SEAT CUSHION SUPPORT, NO.2

main64226-20050iST18#198909-199309

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-20160iST18#198909-199309

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64315-20150iST18#198909-199309

67865CWEATHERSTRIP, CENTER PILLAR UPPER END, RH

main67865-20010iST18#198909-199309

67866BWEATHERSTRIP, CENTER PILLAR UPPER END, LH

main67866-20010iST18#198909-199309

9009100600

main90091-00600

9017906159

main90179-06159

9033330002

main90333-30002

9095001025

main90950-01025

9095001060

main90950-01060

9095001527

main90950-01527

9095001580

main90950-01580

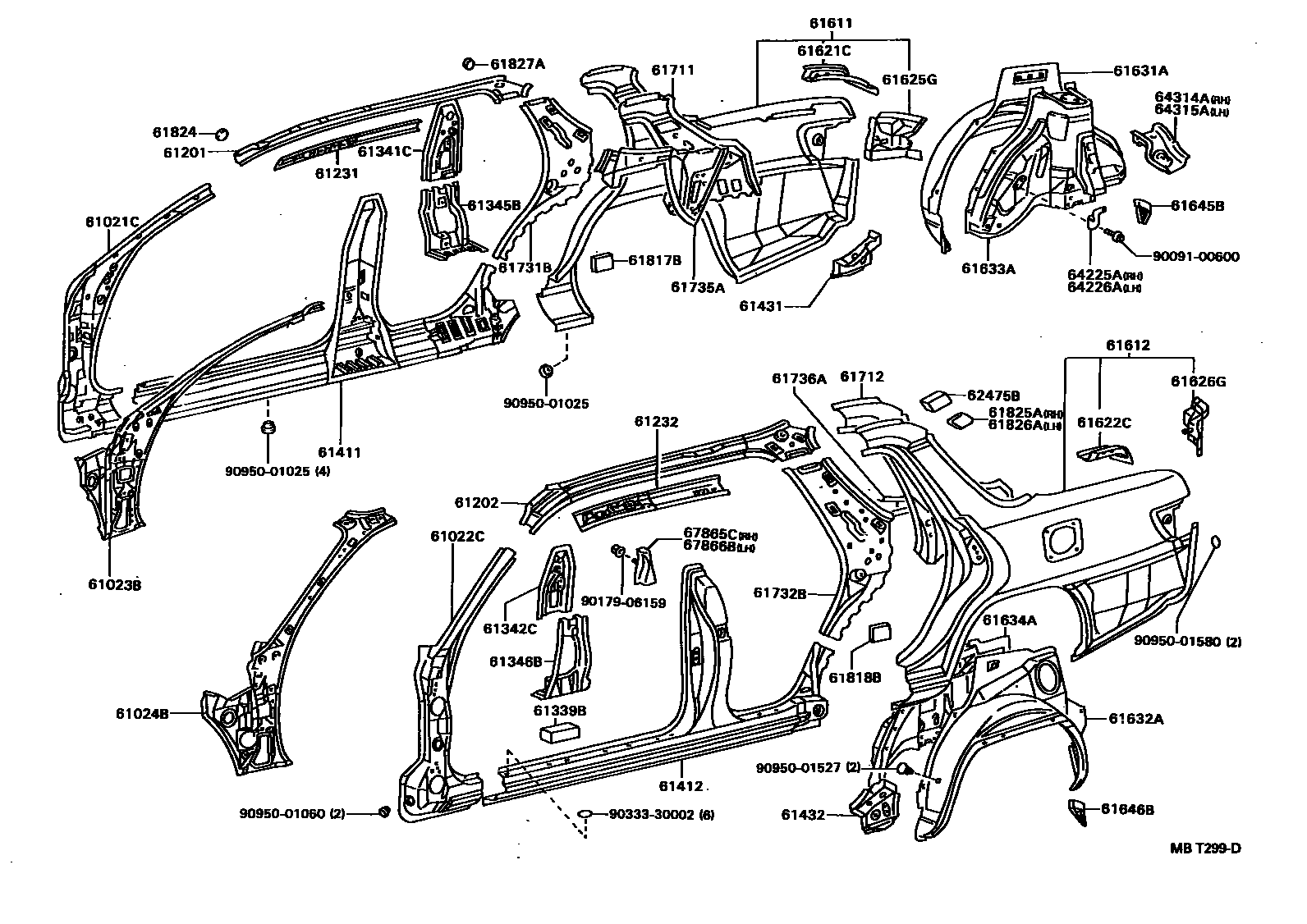

55 parts on this diagram · 1 diagram in section
