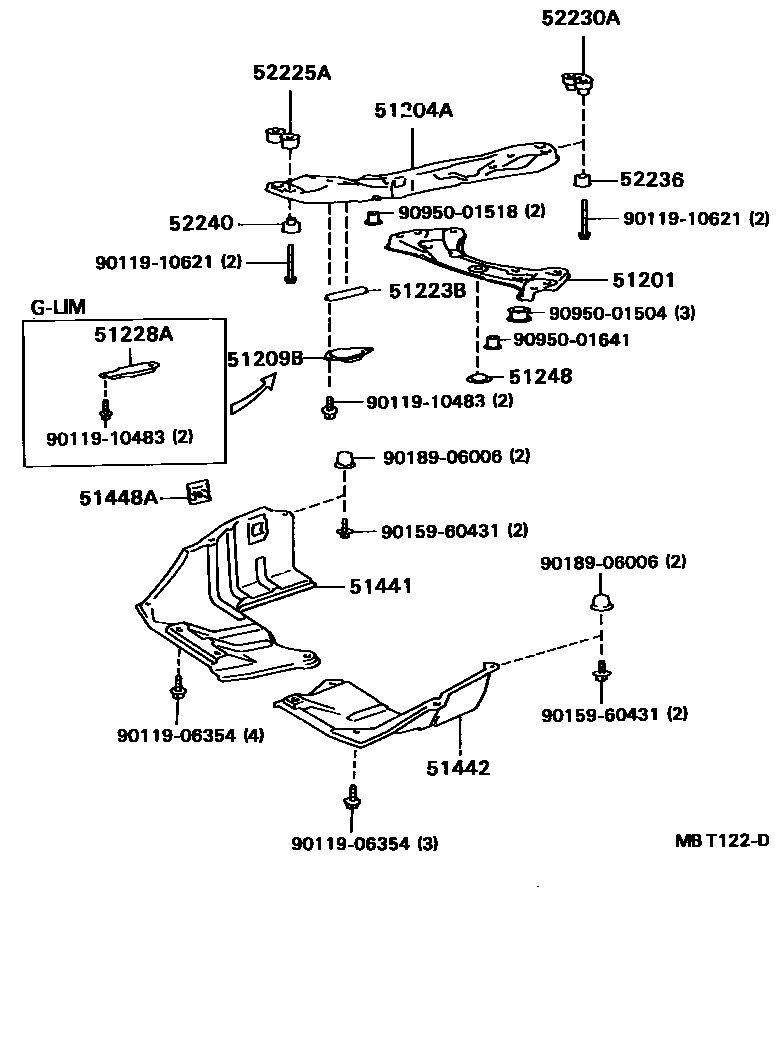

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20240iST18#198909-199309

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20100iST18#198909-199104

main51204-20101iST18#199104-199309

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iST18#..CI,EFI198909-199309

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20020iST18#199108-199208

L=102.5

main51223-20030iST18#198909-199309

L=104

main51223-20030iST18#199208-199309

L=102.5

51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH

main51228-20050iST182,183..TWC198909-199309

51248SPACER, FLAME CROSSMEMBER

main51248-32010iST18#198909-199309

51441COVER, ENGINE UNDER, NO.1

main51441-20260iST18#198909-199309

51442COVER, ENGINE UNDER, NO.2

main51442-20270iST18#..MTM198909-199309

main51442-20280iST18#..ATM198909-199309

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iST18#198909-199309

52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER

main52225-20040iST18#198909-199309

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-20050iST18#198909-199309

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-20040iST18#198909-199309

52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER

main52240-20040iST18#198909-199309

9011906354

main90119-06354

9011910483

main90119-10483

9011910621

main90119-10621

9015960431

main90159-60431

9018906006

main90189-06006

9095001504

main90950-01504

9095001518

main90950-01518

9095001641

main90950-01641

21 parts on this diagram · 2 diagrams in section
