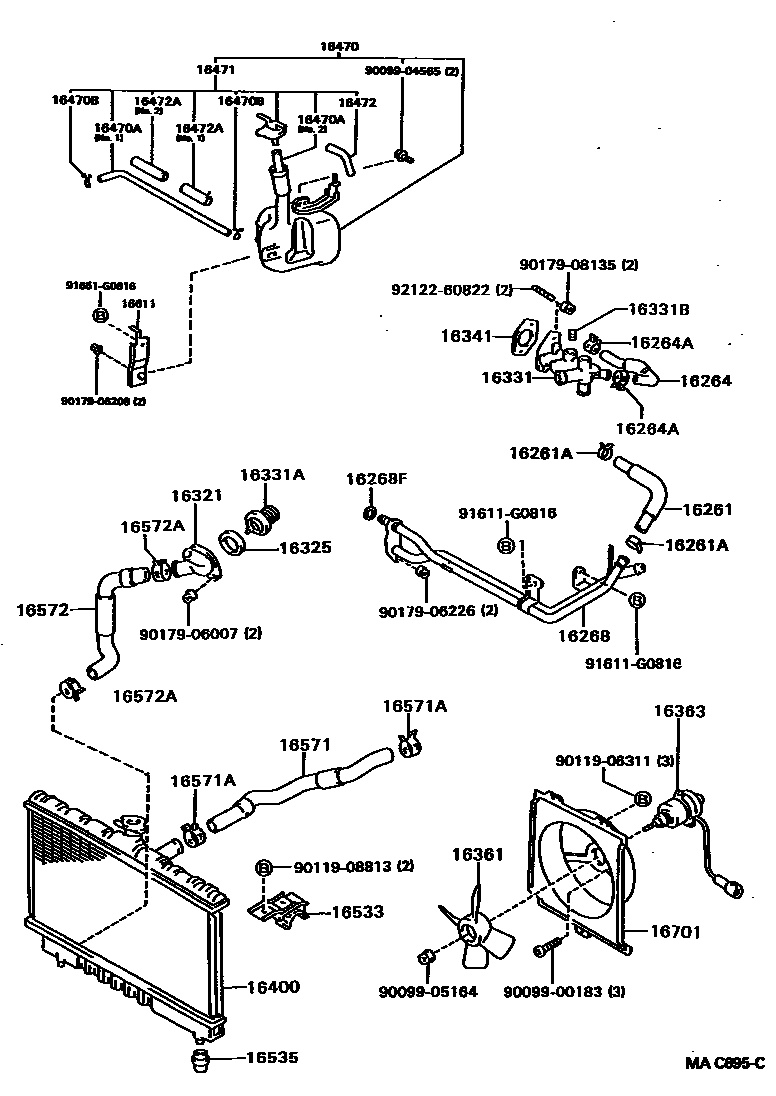

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16261HOSE, WATER BY-PASS

main16261-74010i3SFE,4SFE..ST18#198909-199309

main16261-74040i4SFI..ST180,181198909-199008

main16261-88361i3SGE..ST182,183198909-199309

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-22003×2i3S#,4SF#..ST18#198909-199309

16264HOSE, WATER BY-PASS, NO.2

main16264-74040i4SFI..ST180,181198909-199008

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-22003×2i4SFI..ST180,181198909-199008

16268PIPE, WATER BY-PASS, NO.1

main16268-74010i3SFE,4SFE..ST18#198909-199108

main16268-74050i4SFI..ST180,181198909-199008

main16268-74100i3SGE..ST182,183..ATM198909-199107

main16268-74101i3SGE..ST182,183..ATM199107-199309

main16268-74120i3SGE..ST182,183..MTM198909-199107

main16268-74121i3SGE..ST182,183..MTM199107-199309

main16268-74150i3SFE,4SFE..ST18#199108-199204

main16268-74151i3SFE,4SFE..ST18#199204-199308

main16268-74152i3SFE,4SFE..ST18#199308-199309

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24017i3S#,4SF#..ST18#198909-199309

16321INLET, WATER

main16321-74030i4SFI..ST180,181199001-199008

main16321-88381i3S#,4SFI..ST18#198909-199001

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i3S#,4SFI..ST18#198909-199001

main16325-63010i3SFE,4SFE..ST18#199008-199301

main16325-63011i3SFE,4SFE..ST18#199301-199309

16331OUTLET, WATER

main16304-74051i4SFI..ST180,181198909-199008

main16304-74061i4SFI..ST180,181198909-199008

main16304-74110i3SFE,4SFE..ST18#198909-199108

main16304-74120i3SGE..ST182,183198909-199107

main16304-74121i3SGE..ST182,183199107-199309

main16331-74180i3SFE,4SFE..ST18#199203-199309

16331ATHERMOSTAT

main90916-03046i4SFI..ST180,181199001-199008

main90916-03060i3SFE,4SFE..ST18#199106-199309

main90916-03075i3SGE..ST182,183199008-199309

16331BPLUG(FOR WATER OUTLET)

main90345-53009i3SFE..ST182,183;4SF#..ST180,181..MTM; 4SF#..ST180,181..ATM198909-199009

16341GASKET, WATER OUTLET

main16341-63011i3SFE,4SF#..ST18#198909-199309

main16341-74030i3SGE..ST182,183198909-199309

16361FAN

main16361-64010i3SFE,4SF#..ST18#; 3SGE..ST182,183198909-199309

main16361-74040i3SGE..ST182,183198909-199309

16363MOTOR, COOLING FAN

main16363-74020i3S#,4SF#..ST18#198909-199309

main16363-74050i3SGE..ST182,183198909-199309

NO.2

16400RADIATOR ASSY

main16400-74500i3SFE,4SFE..ST18#..ATM199101-199309

main16400-74510i3SGE,4SF#..ST18#..MTM198909-199309

main16400-74520i3SGE..ST182,183..ATM198909-199008

main16400-74540i3SFE..ST182,183..MTM198909-199309

16470TANK ASSY, RADIATOR RESERVE

main16470-74110i3S#,4SF#..ST18#198909-199309

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-74110i3S#,4SF#..ST18#198909-199309

main90445-12078i3S#,4SF#..ST18#198909-199309

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i3S#,4SF#..ST18#198909-199309

16471CAP SUB-ASSY, RESERVE TANK

main16405-74120i3S#,4SF#..ST18#198909-199309

16472HOSE, BREATHER

main85338-74040i3S#,4SF#..ST18#198909-199309

16472APROTECTOR, HOSE

main16477-74110i3S#,4SF#..ST18#198909-199309

main85338-70070i3S#,4SF#..ST18#198909-199108

16533SUPPORT, RADIATOR, UPPER

main16533-74120×2i3SGE..ST182,183;3SFE,4SFI..ST18#..MTM198909-199008

main16533-74130×2i3S#,4SFE..ST18#..ATM199008-199101

16535SUPPORT, RADIATOR, LOWER

main16535-74090×2i3SGE..ST182,183;3SFE,4SFI..ST18#..MTM198909-199007

main16535-74091×2i3SFE,4SF#..ST18#..MTM; 3SGE..ST182,183199007-199101

main16535-74100×2i3SFE,4SFI..ST18#..ATM199006-199007

main16535-74101×2i3SFE,4SFE..ST18#..ATM199008-199101

16571HOSE, RADIATOR, INLET

main16571-74120i3S#,4SF#..ST18#198909-199108

main16571-74210i3S#,4SFE..ST18#199108-199309

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33003×2i3S#,4SF#..ST18#198909-199011

16572HOSE, RADIATOR, OUTLET

main16572-74100i3S#,4SF#..ST18#198909-199309

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002×2i3SGE..ST182,183199011-199012

main90467-33003i3SGE..ST182,183199012-199309

WATER INLET SIDE

16611BRACKET, RADIATOR RESERVE TANK

main16611-74070i3S#,4SF#..ST18#198909-199309

16701SHROUD SUB-ASSY, FAN

main16711-74200i3SFE,4SF#..ST18#; 3SGE..ST182,183198909-199010

main16711-74250i3SGE..ST182,183198909-199309

main16711-74400i3SFE,4SFE..ST18#; 3SGE..ST182,183199010-199309

9009900183

main90099-00183

9009904565

main90099-04565

9009905164

main90099-05164

9011906311

main90119-06311

9011908813

main90119-08813

9017906007

main90179-06007

9017906208

main90179-06208

9017906226

main90179-06226

9017908135

main90179-08135

91611G0816

main91611-G0816

91651G0616

main91651-G0616

9212260822

main92122-60822

41 parts on this diagram · 5 diagrams in section
