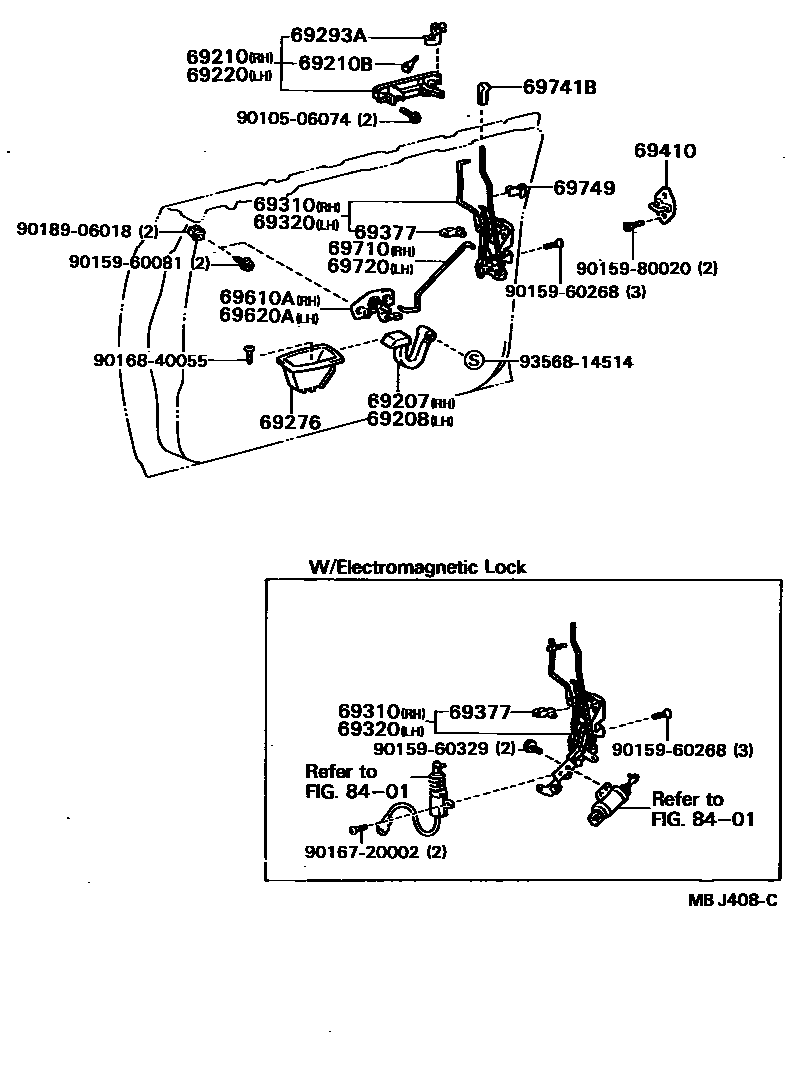

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69271-20090-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main69271-20090-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69272-20060-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main69272-20060-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20120iST16#198508-198708

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×2iST16#198508-198708

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20120iST16#198508-198708

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-20020-03iST16#198508-198708

RH,GRAY,SHADOW GRAY,TRIM1#

main69277-20020-06iST16#198508-198708

RH,BROWN,BROWN,TRIM1#,4#

main69278-20020-03iST16#198508-198708

LH,GRAY,SHADOW GRAY,TRIM1#

main69278-20020-06iST16#198508-198708

LH,BROWN,BROWN,TRIM1#,4#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-16010iST16#198508-198708

RH

main69293-16020iST16#198508-198708

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-20260iST16#..F,G,S,X198605-198708

W/*EL

main69310-20290iST16#..G,L,S198508-198708

W/O *EL

69320LOCK ASSY, FRONT DOOR, LH

main69320-20260iST16#..F,G,X198508-198605

W/*EL

main69320-20290iST16#..G,L,S198508-198708

W/O *EL

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20150iST16#198508-198512

LH

main69759-20160iST16#198508-198512

RH

main69759-20190iST16#198512-198708

RH

main69759-20200iST16#198512-198708

LH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12050×2iST16#198508-198708

69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH

main69610-20080iST16#198508-198708

69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH

main69620-20050iST16#198508-198708

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-20090iST16#198508-198708

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-20090iST16#198508-198708

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-20040-03×2iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main69741-20040-06×2iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20020×2iST16#198508-198708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506074

main90105-06074

9015960081

main90159-60081

9015960268

main90159-60268

9015960329

main90159-60329

9015980020

main90159-80020

9016720002

main90167-20002

9016840055

main90168-40055

9018906018

main90189-06018

9356814514

main93568-14514

27 parts on this diagram · 1 diagram in section
