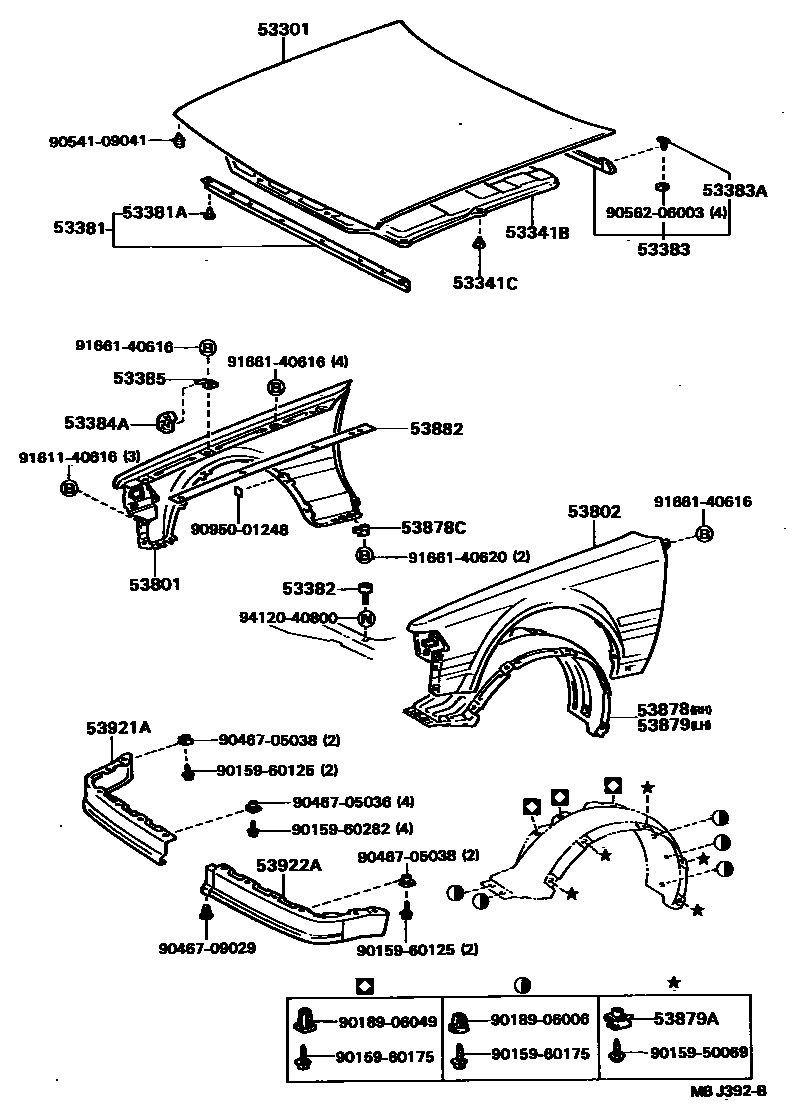

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-20210iST16#198508-198708

53341BINSULATOR, HOOD

main53341-20090iST162..5F198508-198708

main53341-20100iST162..4FC198508-198708

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008×11iST162198508-198603

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20080iST16#198508-198708

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iST16#198508-198708

53382BUMPER, HOOD, FRONT

main53382-20011×2iST16#198508-198511

main53382-90A00×2iST16#198511-198708

53383SEAL, HOOD TO COWL TOP

main53383-20090iST16#198508-198708

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08044×7iST16#198508-198708

53384ABUMPER, FENDER TO HOOD

main53384-24010×2iST16#198508-198708

53385RETAINER, HOOD, BUMPER

main53385-14010iST16#198508-198708

RH

main53386-14010iST16#198508-198708

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-20760iST16#198508-198708

W/*DM

main53801-20820iST16#198508-198708

W/*FM

53802FENDER SUB-ASSY, FRONT LH

main53802-20510iST16#198508-198708

W/*DM

main53802-20820iST16#198508-198708

W/*FM

53878LINER, FRONT FENDER, RH

main53875-20100iST16#198508-198708

53878CSPACER, FRONT FENDER

main53878-20030×2iST16#198508-198708

53879LINER, FRONT FENDER, LH

main53876-20110iST16#198508-198708

53879ARETAINER, FRONT FENDER LINER

main53879-14010×10iST16#198508-198708

53882PACKING, FRONT FENDER MAIN

main53882-20060×2iST16#198508-198708

53921APANEL, FRONT VALANCE, RH

main53921-20030iST16#198508-198708

53922APANEL, FRONT VALANCE, LH

main53922-20020iST16#198508-198708

9015950069

main90159-50069

9015960125

main90159-60125

9015960175

main90159-60175

9015960282

main90159-60282

9018906006

main90189-06006

9018906049

main90189-06049

9046705036

main90467-05036

9046705038

main90467-05038

9046709029

main90467-09029

9054109041

main90541-09041

9056206003

main90562-06003

9095001248

main90950-01248

9161140616

main91611-40616

9166140616

main91661-40616

9166140620

main91661-40620

9412040800

main94120-40800

35 parts on this diagram · 1 diagram in section
