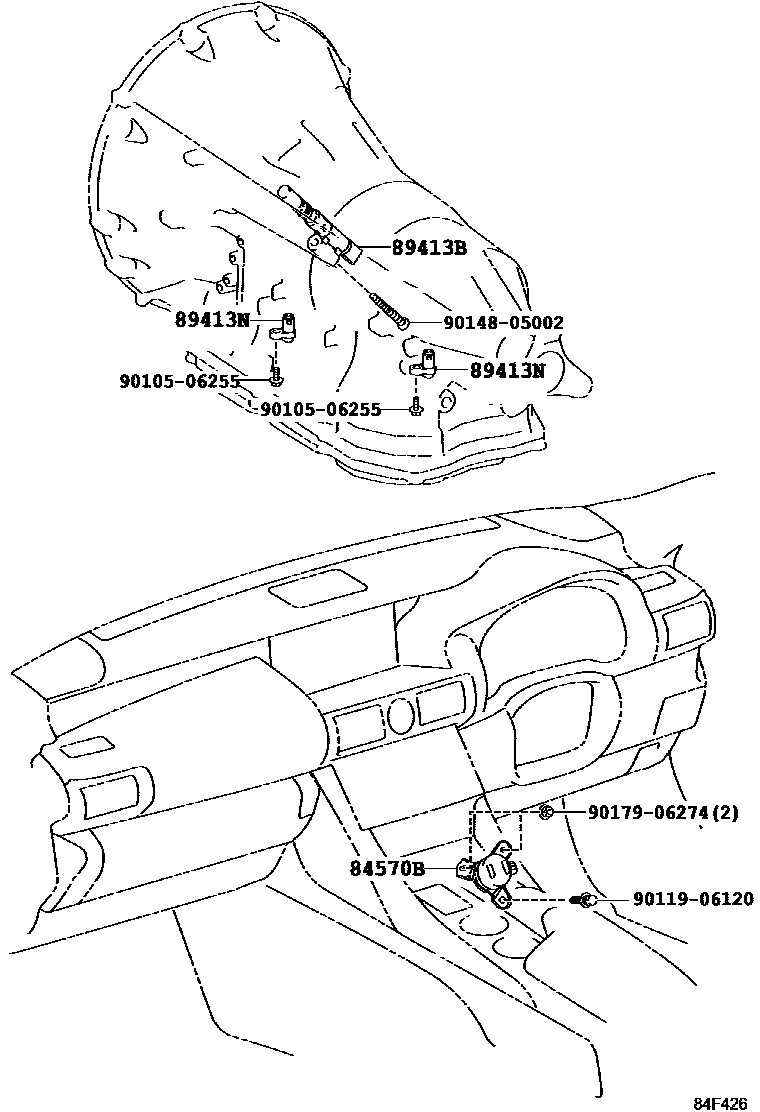

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84570BSWITCH ASSY, KICK DOWN

main84570-30090iUSC10201409-201902

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-50010iUSC10201409-201902

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-50020iUSC10201409-201902

9010506255

main90105-06255

9011906120

main90119-06120

9014805002

main90148-05002

9017906274

main90179-06274

7 parts on this diagram · 1 diagram in section
