TELEPHONE & MAYDAY

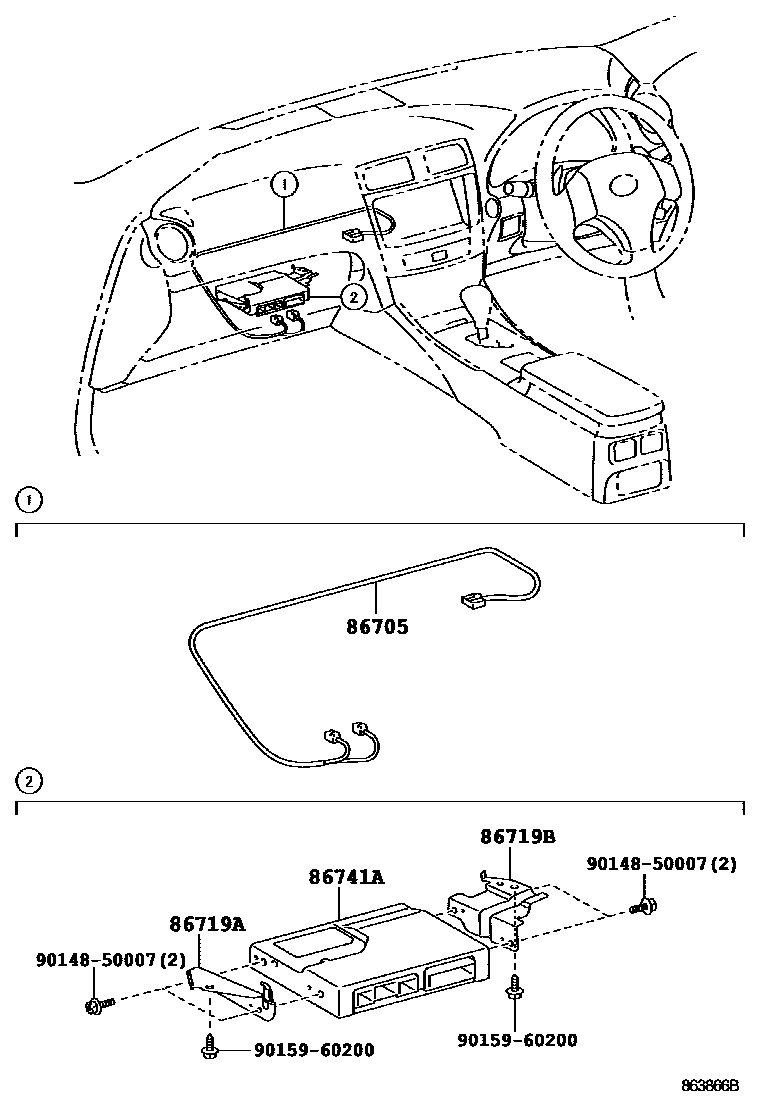

Parts diagram

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-53030i200904-201208

86719ABRACKET, TELEPHONE NO.1

main86719-30250i201208-201408

main86719-53060i200904-201208

86719BBRACKET, TELEPHONE NO.2

main86719-53010i201208-201408

main86719-53070i200904-201208

86741ATRANSCEIVER, TELEMATICS

main86741-30040i200904-201202

main86741-30041i201202-201208

main86741-30110i201208-201210

main86741-30111i201211-201408

9014850007

main90148-50007

9015960200

main90159-60200

6 parts on this diagram · 2 diagrams in section
