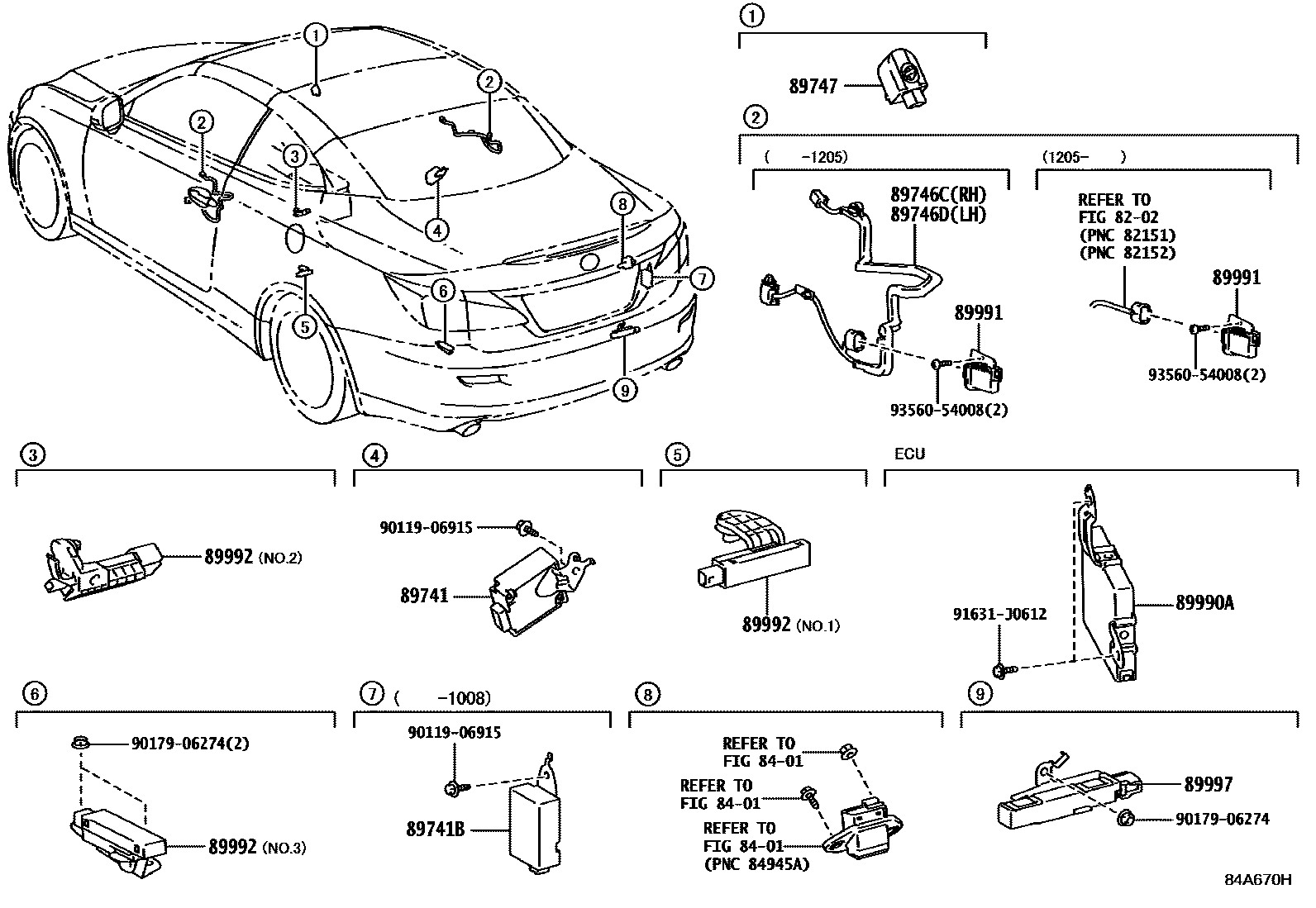

WIRELESS DOOR LOCK

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89741RECEIVER, DOOR CONTROL

main89740-53111iGSE2#200904-201408

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-53120iGSE20200904-201008

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-53030iGSE2#200904-201205

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-53040iGSE2#200904-201205

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iGSE2#200904-201408

89990ACOMPUTER ASSY, SMART KEY

main89990-53061iGSE2#200904-201105

main89990-53062iGSE2#201106-201408

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iGSE2#200904-201408

main89991-30050iGSE2#200904-201408

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-53020iGSE2#200904-201408

main89992-53040iGSE2#200904-201408

main89992-53050iGSE2#200904-201408

89997ANTENNA, ELECTRICAL KEY

main89997-53020iGSE2#200904-201408

9011906915

main90119-06915

9017906274

main90179-06274

91631J0612

main91631-J0612

9356054008

main93560-54008

15 parts on this diagram · 1 diagram in section
