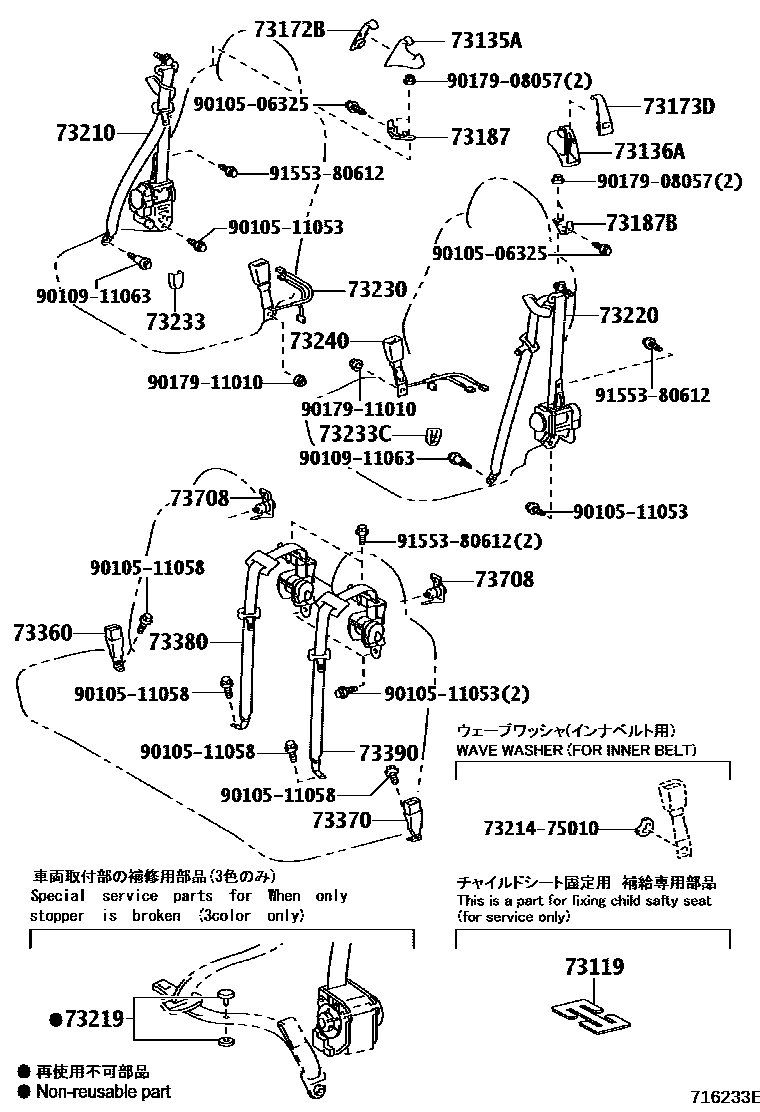

SEAT BELT & CHILD RESTRAINT SEAT

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iGSE2#201008-201408

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-53040-A0iGSE20200904-201408

MELLOW WHITE,TRIM00,01,02,03,06,07

main73135-53040-C0iGSE21201008-201408

BLACK,TRIM1#,2#,3#,4#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73136-53030-A0iGSE21201008-201408

MELLOW WHITE,TRIM0#

main73136-53030-C0iGSE20200904-201408

BLACK,TRIM04,05,08,1#,2#,3#,4#

73172BCAP, FRONT SHOULDER BELT HANGER, RH

main73172-53020iGSE2#200908-201408

main73172-53020-A0iGSE20200904-200908

MELLOW WHITE,TRIM00,01,02,03,06,07

main73172-53020-C0iGSE20200904-200908

BLACK,TRIM04,05,08,2#,3#

73173DCAP, FRONT SHOULDER BELT HANGER, LH

main73173-53020iGSE2#200908-201408

main73173-53020-A0iGSE20200904-200908

MELLOW WHITE,TRIM00,01,02,03,06,07

main73173-53020-C0iGSE20200904-200908

BLACK,TRIM04,05,08,2#,3#

73187GUIDE, FRONT SEAT SHOULDER BELT

main73187-53010iGSE2#200908-201408

main73187-53010-A0iGSE20200904-200908

MELLOW WHITE,TRIM00,01,02,03,06,07

main73187-53010-C0iGSE20200904-200908

BLACK,TRIM04,05,08,2#,3#

73187BGUIDE, FRONT SEAT SHOULDER BELT

main73187-53020iGSE2#200908-201408

main73187-53020-A0iGSE20200904-200908

MELLOW WHITE,TRIM00,01,02,03,06,07

main73187-53020-C0iGSE20200904-200908

BLACK,TRIM04,05,08,2#,3#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-53270-A0supersedes 73210-53260-A0iGSE20200904-201007

main73210-53270-C0supersedes 73210-53260-C0iGSE20200904-201007

main73210-53271-A0supersedes 73210-53263-A0iGSE2#201008-201302

main73210-53271-C0supersedes 73210-53263-C0iGSE2#201008-201302

main73210-53272-A0supersedes 73210-53263-A0iGSE2#201303-201408

main73210-53272-C0supersedes 73210-53263-C0iGSE2#201303-201408

73219STOPPER, TONGUE PLATE

main73219-33010iGSE2#200904-201408

main73219-33020iGSE2#200904-201408

main73219-33030iGSE2#200904-201408

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-53200-A0supersedes 73220-53190-A0iGSE20200904-201007

main73220-53200-C0supersedes 73220-53190-C0iGSE20200904-201007

main73220-53201-A0supersedes 73220-53193-A0iGSE2#201008-201302

main73220-53201-C0supersedes 73220-53193-C0iGSE2#201008-201302

main73220-53202-A0supersedes 73220-53193-A0iGSE2#201303-201408

main73220-53202-C0supersedes 73220-53193-C0iGSE2#201303-201408

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-53260-A1iGSE21201008-201408

MELLOW WHITE,TRIM0#

main73230-53260-C1iGSE21201008-201408

BLACK,TRIM1#,2#,3#,4#

main73230-53400-A0iGSE20200904-201408

MELLOW WHITE,TRIM0#

main73230-53400-C0iGSE20200904-201408

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-A5iGSE20200904-201408

MELLOW WHITE,TRIM0#,30,31,32

main73233-52010-C0iGSE20200904-201408

BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#

73233CCOVER, LAP BELT OUTER ANCHOR, LH

main73233-52010-A5iGSE20200904-201408

MELLOW WHITE,TRIM0#,30,31,32

main73233-52010-C0iGSE21201008-201408

BLACK,TRIM1#,2#,3#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-53250-A2iGSE20200904-201408

MELLOW WHITE,TRIM0#

main73230-53250-C2iGSE20200904-201408

BLACK,TRIM2#

main73230-53350-A0iGSE21201008-201408

MELLOW WHITE,TRIM0#

main73230-53350-C0iGSE21201008-201408

BLACK,TRIM1#,2#,3#,4#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73380-53040-A0iGSE2#201008-201408

MELLOW WHITE,TRIM0#

main73380-53040-C0iGSE20200904-201008

BLACK,TRIM1#,2#,33,34,35,4#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73480-53030-A0iGSE2#201008-201408

MELLOW WHITE,TRIM0#

main73480-53030-C0iGSE20200904-201008

BLACK,TRIM1#,2#,33,34,35,4#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73360-53160-A0iGSE20200904-201008

MELLOW WHITE,TRIM0#,30,31,32

main73360-53160-C0iGSE20200904-201008

BLACK,TRIM1#,2#,33,34,35,4#

main73360-53190-A0iGSE2#201008-201307

MELLOW WHITE,TRIM0#

main73360-53190-C0iGSE2#201008-201307

BLACK,TRIM1#,2#,3#,4#

main73360-53191-A0iGSE2#201308-201408

MELLOW WHITE,TRIM0#

main73360-53191-C0iGSE2#201308-201408

BLACK,TRIM1#,2#,3#,4#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73370-53080-A0iGSE20200904-201008

MELLOW WHITE,TRIM0#,30,31,32

main73370-53080-C0iGSE20200904-201008

BLACK,TRIM1#,2#,33,34,35,4#

main73370-53110-A0iGSE2#201008-201307

MELLOW WHITE,TRIM0#

main73370-53110-C0iGSE2#201008-201307

BLACK,TRIM1#,2#,3#,4#

main73370-53111-A0iGSE2#201308-201408

MELLOW WHITE,TRIM0#

main73370-53111-C0iGSE2#201308-201408

BLACK,TRIM1#,2#,3#,4#

73708BRACKET SET, TETHER ANCHOR

main73708-53030×2iGSE2#200904-201408

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010506325

main90105-06325

9010511053

main90105-11053

9010511058

main90105-11058

9010911063

main90109-11063

9017908057

main90179-08057

9017911010

main90179-11010

9155380612

main91553-80612

27 parts on this diagram · 1 diagram in section
