IGNITION COIL & SPARK PLUG / GLOW PLUG

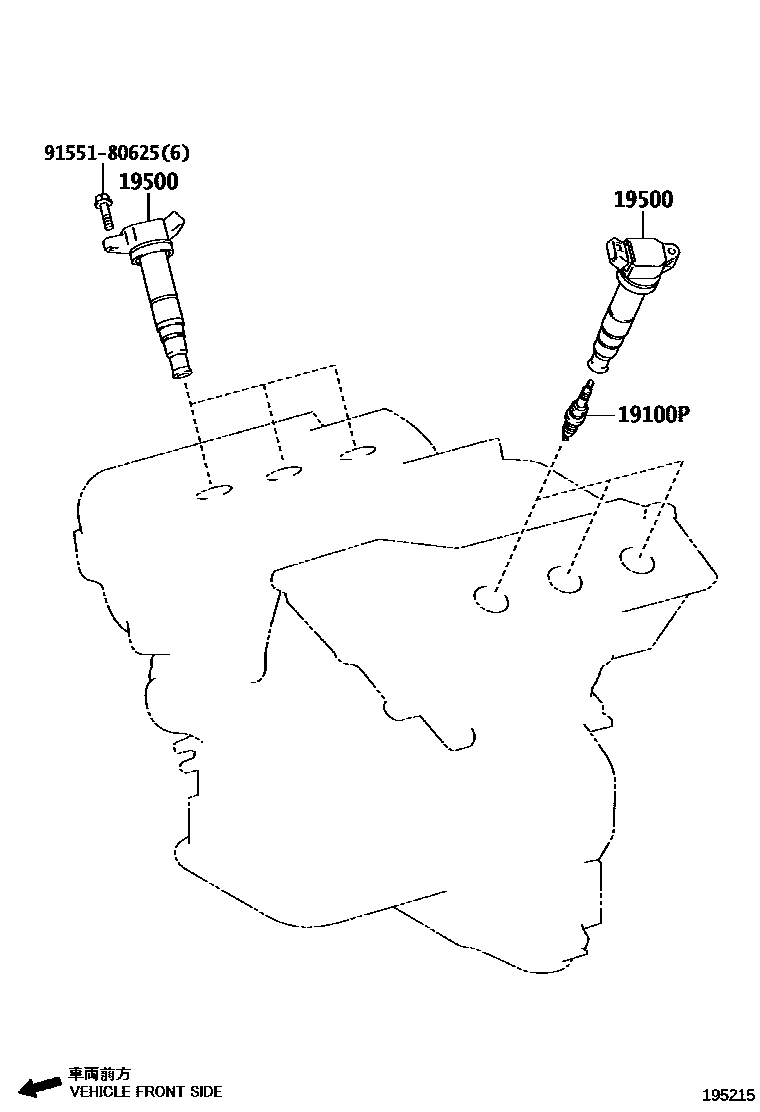

Parts diagram

19100PPLUG, SPARK

main90919-01249×6i200904-201408

19500COIL ASSY, IGNITION

main90919-02250×6i200904-200908

main90919-02256×6i200908-201408

9155180625

main91551-80625

3 parts on this diagram · 1 diagram in section
