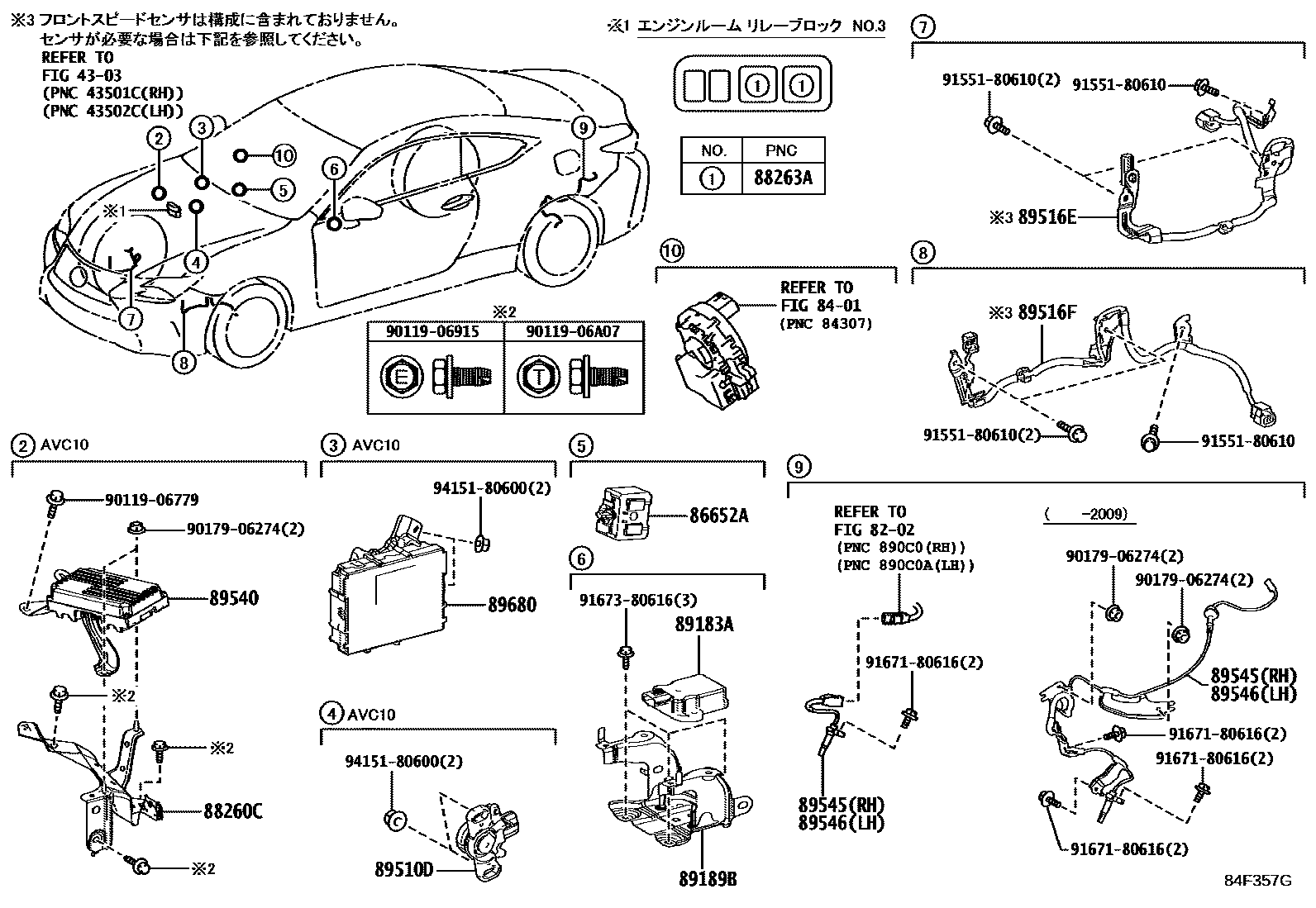

ABS & VSC

4303FRONT AXLE HUB

→ Go to FIG 43-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iASC10,AVC10,GSC10201711-201810

88260CBRACKET ASSY, SKID CONTROL COMPUTER

main88260-30040iAVC10201409-201510

88263ARELAY, SKID CONTROL

main88263-21010×2iAVC10201409-201510

89183ASENSOR, YAWRATE

main89183-48020iAVC10,GSC10201409-201510

89189BBRACKET, YAWRATE SENSOR

main89189-53010iAVC10,GSC10201409-201510

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iAVC10201409-201510

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-30220iAVC10,GSC10201409-201510

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-30170iAVC10,GSC10201409-201510

89540COMPUTER ASSY, SKID CONTROL

main895B0-24020supersedes 895B0-24010iAVC10201409-201510

main895B0-24040supersedes 895B0-24030iAVC10201510-201711

main895B0-24140supersedes 895B0-24130iAVC10201711-201810

main895B0-24200supersedes 895B0-24190iAVC10201810-202009

main895B0-24240supersedes 895B0-24190iAVC10201810-202009

main895B0-24290supersedes 895B0-24280iAVC10202009-202301

main895B0-24291supersedes 895B0-24010iAVC10202501

89545SENSOR, SPEED, REAR RH

main89545-30080iAVC10,GSC10201409-201510

main89545-53010iASC10,AVC10,GSC10202009

89546SENSOR, SPEED, REAR LH

main89546-30080iAVC10,GSC10201409-201510

main89546-53010iASC10,AVC10,GSC10202009

89680SUPPLY ASSY, BRAKE CONTROL POWER

main896C0-53020iAVC10201409-201510

9011906779

main90119-06779

9011906915

main90119-06915

9011906A07

main90119-06A07

9017906274

main90179-06274

9155180610

main91551-80610

9167180616

main91671-80616

9167380616

main91673-80616

9415180600

main94151-80600

23 parts on this diagram · 1 diagram in section
