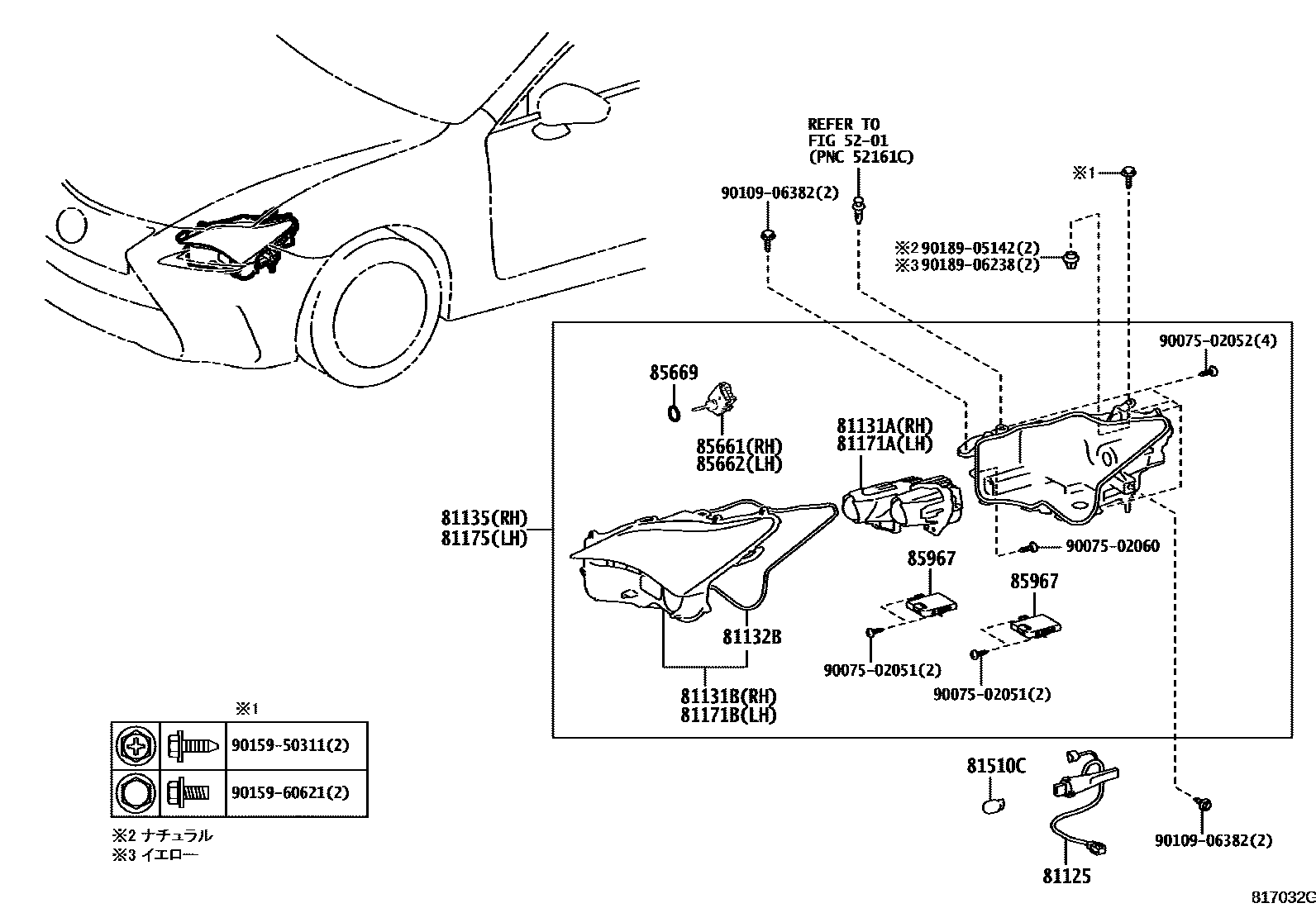

HEADLAMP

0001 1LED(��������) 0002 1LED(�������LED) 0003 1LED(��������) 0004 1LED(�������LED)

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81125CORD, HEADLAMP

main81125-24200iAVC10,GSC10201409-201810

81131AUNIT, HEADLAMP, RH

main81130-24200iAVC10,GSC10201409-201810

81131BHEAD LAMP LENS, RH

main81131-24200iAVC10,GSC10201409-201810

main81131-24320iASC10,AVC10,GSC10201810

81132BGASKET, HEADLAMP LENS

main81132-30E40iASC10,AVC10,GSC10201810

main81132-52180iASC10,AVC10,GSC10201409-201810

81135UNIT ASSY, HEADLAMP, RH

main81105-24200iAVC10,GSC10201409-201810

main81145-24320iASC10,AVC10,GSC10201810-202309

main81145-24321iASC10,AVC10,GSC10202309

81171AUNIT, HEADLAMP, LH

main81170-24200iASC10,AVC10,GSC10201409-201810

81171BHEAD LAMP LENS, LH

main81171-24200iAVC10,GSC10201409-201810

main81171-24320iASC10,AVC10,GSC10201810

81175UNIT ASSY, HEADLAMP, LH

main81106-24200iAVC10,GSC10201409-201810

main81185-24320iASC10,AVC10,GSC10201810-202309

main81185-24321iASC10,AVC10,GSC10202309

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iAVC10,GSC10201409-201810

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020iAVC10,GSC10201409-201810

main85661-48050iASC10,AVC10,GSC10201810

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020iAVC10,GSC10201409-201810

main85661-48050iASC10,AVC10,GSC10201810

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iAVC10,GSC10201409-201810

85967COMPUTER, LIGHT CONTROL

main85967-12010iAVC10,GSC10201409-201810

9007502051

main90075-02051

9007502052

main90075-02052

9007502060

main90075-02060

9010906382

main90109-06382

9015950311

main90159-50311

9015960621

main90159-60621

9018905142

main90189-05142

9018906238

main90189-06238

22 parts on this diagram · 4 diagrams in section
