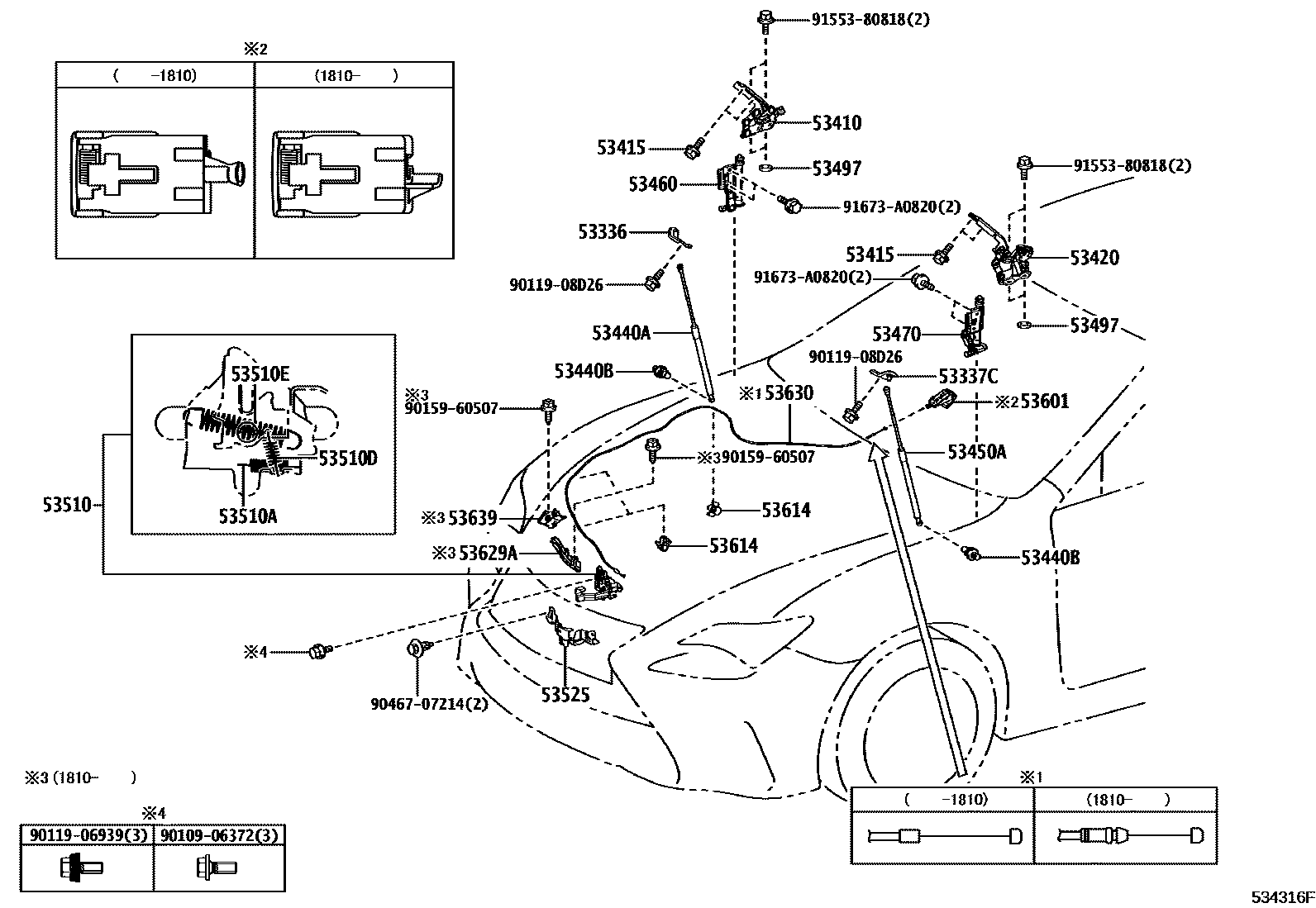

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-24021iAVC10,GSC10201409-201510

53337CBRACKET, HOOD STAY, LH

main53337-24021iAVC10,GSC10201409-201510

53410HINGE ASSY, HOOD, RH

main53410-24080iAVC10,GSC10201409-201510

53415BOLT, HOOD HINGE

main91551-A0814×4iAVC10,GSC10201409-201510

53420HINGE ASSY, HOOD, LH

main53420-24080iAVC10,GSC10201409-201510

53440ASUPPORT ASSY, HOOD, RH

main53440-0W290iAVC10,GSC10201409-201503

main53440-0W291iAVC10,GSC10201504-201510

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051×2iAVC10,GSC10201409-201510

53450ASUPPORT ASSY, HOOD, LH

main53450-0W250iAVC10,GSC10201409-201503

main53450-0W251iAVC10,GSC10201504-201510

53460LIFTER ASSY, POP UP HOOD, RH

main53460-24030iAVC10,GSC10201409-201510

main53460-24031iASC10,AVC10,GSC10201604-201810

main53460-24032iASC10,AVC10,GSC10202208

53470LIFTER ASSY, POP UP HOOD, LH

main53470-24030iAVC10,GSC10201409-201510

main53470-24031iASC10,AVC10,GSC10201604-201810

main53470-24032iASC10,AVC10,GSC10202208

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iAVC10,GSC10201409-201411

main53497-42010×4iAVC10,GSC10201409-201411

main53497-50020×4iAVC10,GSC10201412-201510

53510LOCK ASSY, HOOD

main53510-24090iAVC10,GSC10201409-201510

main53510-24091iASC10,AVC10,GSC10201907

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAVC10,GSC10201409-201510

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAVC10,GSC10201409-201510

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iAVC10,GSC10201409-201510

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-30080iAVC10,GSC10201409-201510

main53525-30130iASC10,AVC10,GSC10201510-201810

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30090-C0iAVC10,GSC10201409-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

main53601-30090-C1iASC10,AVC10,GSC10201701-201810

BLACK,TRIM1#,2#,3#,4#,5#

main53601-30110-C0iASC10,AVC10,GSC10201810

BLACK,TRIM0#,2#,3#,4#,5#

53614CLAMP, HOOD LOCK CONTROL CABLE

main90959-01369×3iAVC10,GSC10201409-201510

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-30100iASC10,AVC10,GSC10201810

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-24130iAVC10,GSC10201409-201510

main53630-24131iASC10,AVC10,GSC10201810

53639COVER, HOOD LOCK CONTROL CABLE, NO.2

main53639-24050iASC10,AVC10,GSC10201810

9010906372

main90109-06372

9011906939

main90119-06939

9011908D26

main90119-08D26

9015960507

main90159-60507

9046707214

main90467-07214

9155380818

main91553-80818

91673A0820

main91673-A0820

28 parts on this diagram · 1 diagram in section
