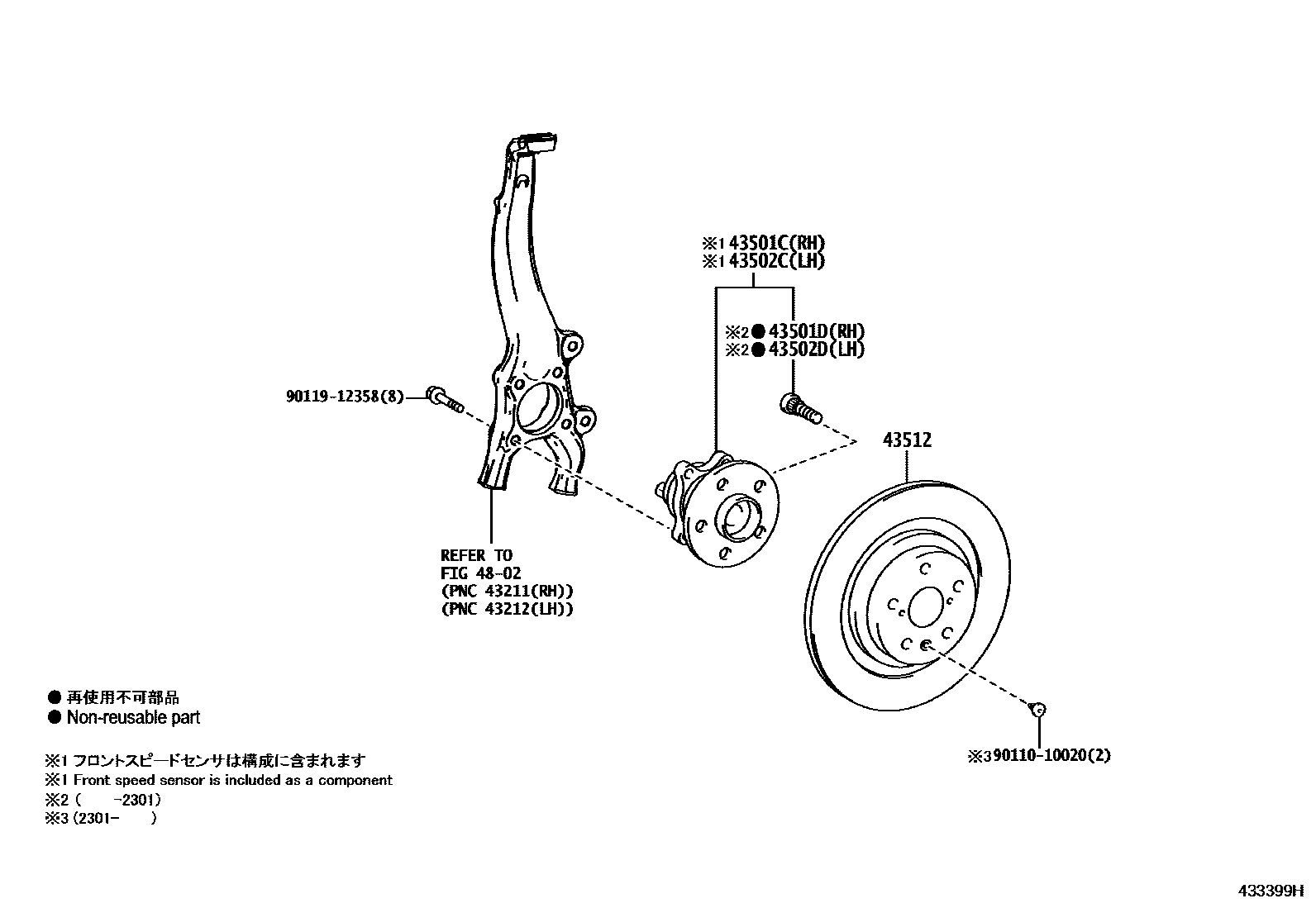

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30050iAVC10,GSC10201409-201504

main43550-30051iAVC10,GSC10201505-201510

main43550-53020iASC10,AVC10,GSC10202301

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAVC10,GSC10201505-201510

main90942-02070×5iAVC10,GSC10201409-201504

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-30050iAVC10,GSC10201409-201504

main43550-30051iAVC10,GSC10201505-201510

main43550-53020iASC10,AVC10,GSC10202301

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iAVC10,GSC10201505-201510

main90942-02070×5iAVC10,GSC10201409-201504

43512DISC, FRONT

main43512-30350iAVC10,GSC10201409-201510

main43516-30040iAVC10,GSC10201409-201510

main43512-22260iAVC10201510-201810

main43512-30371iASC10,AVC10,GSC10; ASC10,GSC10201810-202009

main43512-53050iASC10,GSC10202108

main43516-22010iAVC10201810-202008

main43516-30061iASC10,AVC10,GSC10; ASC10,GSC10201810-202009

main43516-53030supersedes 43516-30040iASC10,AVC10,GSC10202501

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011010020

main90110-10020

9011912358

main90119-12358

8 parts on this diagram · 1 diagram in section
