STARTER

0001 112V 1.3KW,1.7KW 0002 112V 1.3KW, 1.7KW 0003 112V 1.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i2GRF..GSC10201409-201810

main28021-36140i8ARFTS..ASC10201510-201810

28100STARTER ASSY

main28100-31081i2GRF..GSC10201409-201711

main28100-31210i2GRF..GSC10201711-201810

main28100-36140i8ARFTS..ASC10201510-201810

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i2GRF..GSC10201409-201711

main28110-31210i2GRF..GSC10201711-201810

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i2GRF..GSC10201409-201810

28120YOKE ASSY, STARTER

main28120-28080i2GRF..GSC10201409-201810

main28120-36140i8ARFTS..ASC10201510-201810

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31080i2GRF..GSC10201409-201810

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRF..GSC10201409-201810

28160ARMATURE ASSY, STARTER

main28160-21060i2GRF..GSC10201409-201810

main28160-36110i8ARFTS..ASC10201701-201810

main28160-37100i8ARFTS..ASC10201510-201701

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRF..GSC10201409-201810

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i2GRF..GSC10201409-201810

main28226-37100i8ARFTS..ASC10201510-201810

28255GEAR, PLANET

main28255-28040i2GRF..GSC10201409-201810

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9010510592

main90105-10592

9017908204

main90179-08204

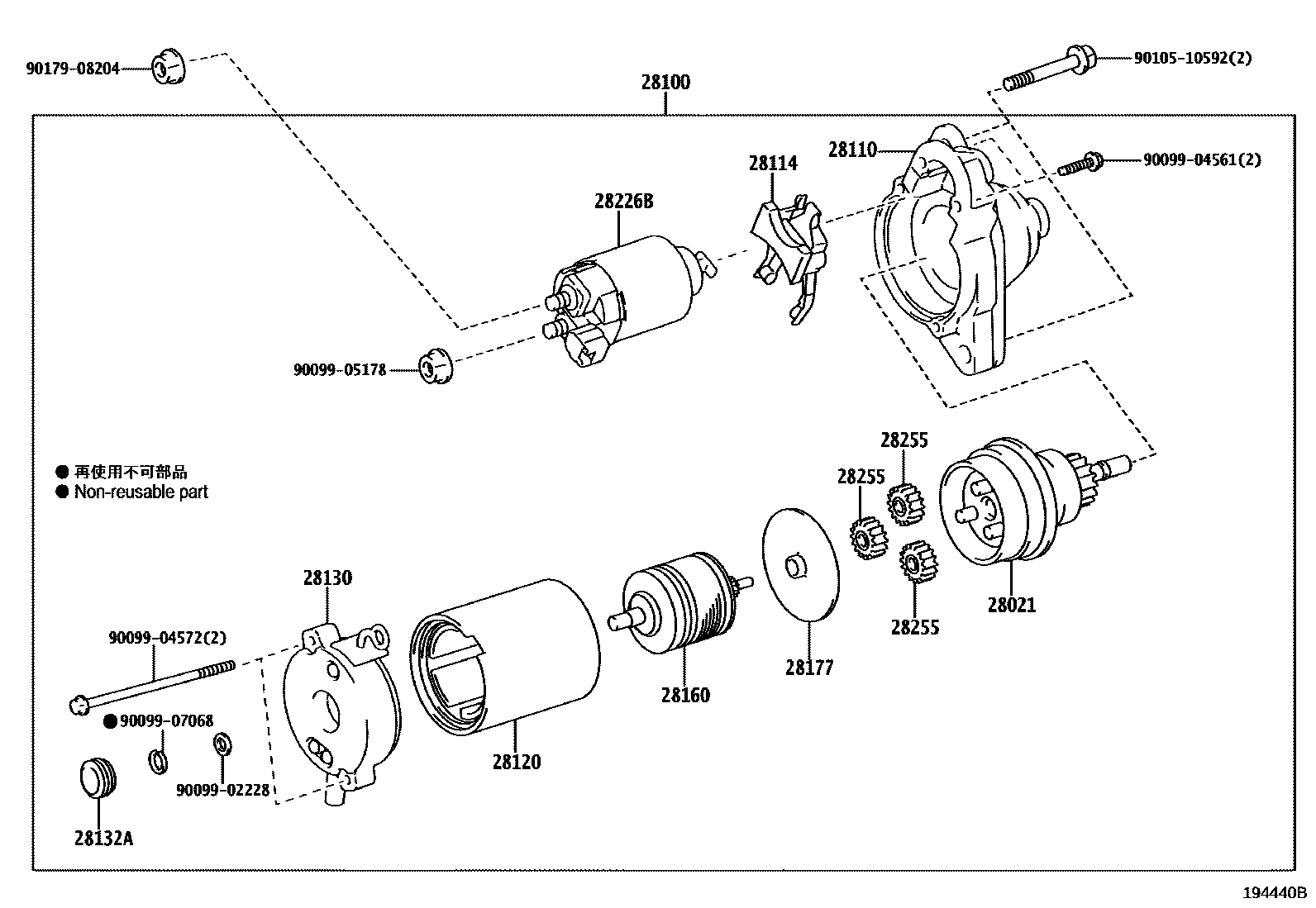

18 parts on this diagram · 3 diagrams in section
