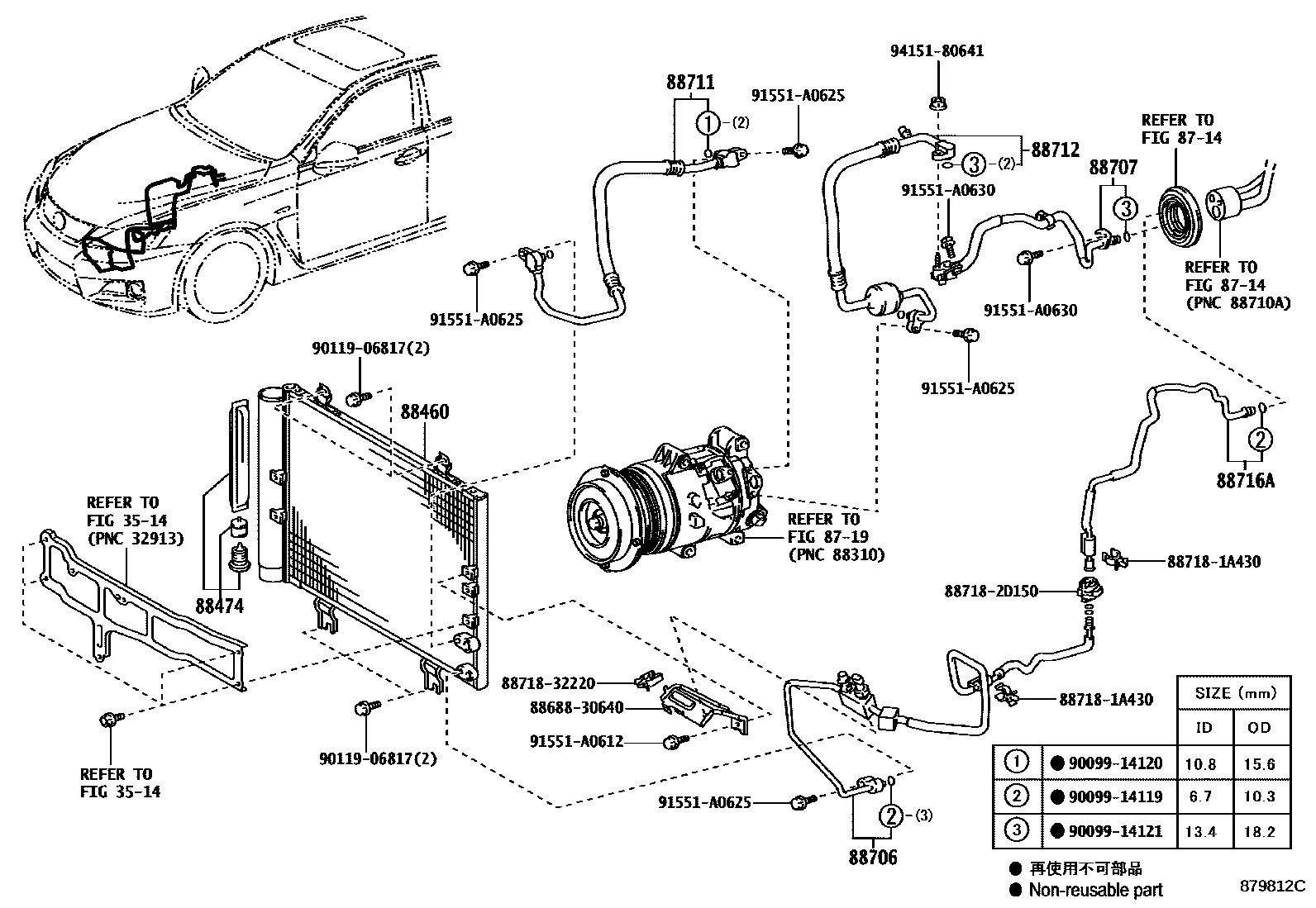

HEATING & AIR CONDITIONING - COOLER PIPING

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-53060iUSE20200712-201408

88474DRYER, COOLER

main88474-17010iUSE20200712-201111

88706PIPE SUB-ASSY, LIQUID

main88706-53100iUSE20200712

88707PIPE SUB-ASSY, SUCTION

main88707-53090iUSE20200712

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-53110iUSE20200712

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-53140iUSE20200712

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-53030iUSE20200712

8868830640BRACKET, COOLER DIAPHRAGM

main88688-30640

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

22 parts on this diagram · 1 diagram in section
