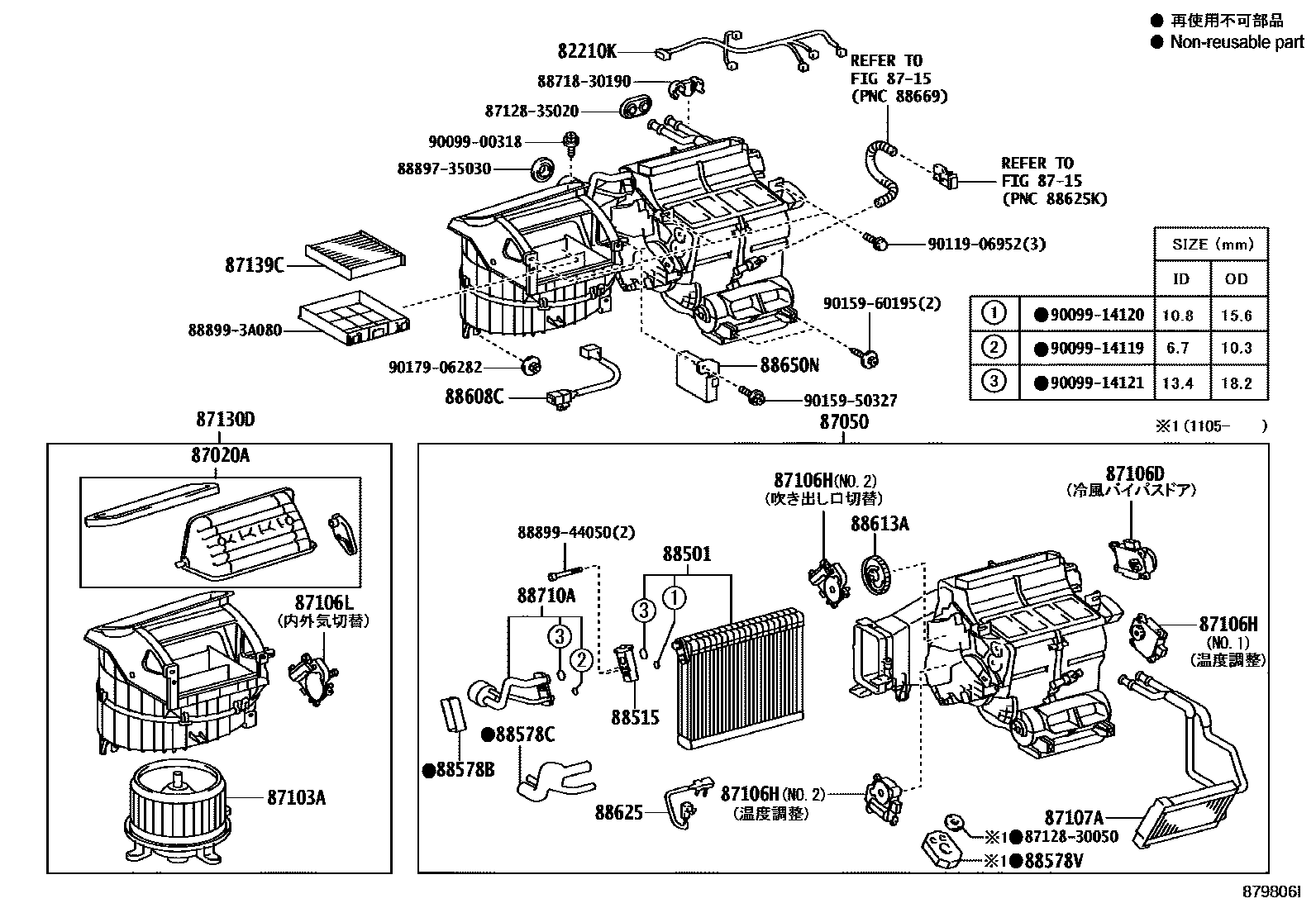

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-30013iUSE20200712-201408

87020ADAMPER ASSY, HEATER AIR

main87020-30010iUSE20200712

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30160iUSE20200712-200801

main87050-30210iUSE20200801-201105

main87050-30211iUSE20201105-201312

main87050-30212iUSE20201312

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-30400iUSE20200712-201010

main87103-30401iUSE20201011

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-30440iUSE20200712

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-30430iUSE20200712

main87106-30450×2iUSE20200712

87106LSERVO SUB-ASSY, DAMPER

main87106-30470iUSE20200712

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30560iUSE20200712-201408

87130DBLOWER ASSY

main87130-30790iUSE20200712-200806

main87130-30791iUSE20200806

87139CFILTER, CLEAN AIR

main87139-30040iUSE20200712-201208

main87139-50060iUSE20200712-201204

main87139-50100iUSE20201205-201408

main87139-52040iUSE20201208-201408

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A110iUSE20200712-200801

main88501-3A160iUSE20200801-201105

main88501-3A161iUSE20201105

88515VALVE, COOLER EXPANSION

main88515-28180iUSE20200712-201105

main88515-30780iUSE20201105

88578BPACKING, COOLING UNIT, NO.1

main88578-30830iUSE20200712

88578CPACKING, COOLING UNIT, NO.2

main88578-30840iUSE20200712-200801

88578VPACKING, COOLING UNIT, NO.3

main88578-30870iUSE20201105

88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-3A170iUSE20200712

88613ALEVER, COOLER CONTROL, NO.1

main88613-30010iUSE20200712-200801

88625THERMISTOR, COOLER, NO.1

main88620-30020iUSE20200712

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-53290iUSE20200908-201003

main88650-53291iUSE20201004-201008

main88650-53330iUSE20201008-201101

main88650-53490iUSE20201208

main88650-53180supersedes 88650-53331iUSE20200712-200802

main88650-53181supersedes 88650-53171iUSE20200802-200808

main88650-53220supersedes 88650-53210iUSE20200808-200908

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A260iUSE20200712-201105

main88710-3A420iUSE20201105-201408

8712830050GROMMET, HEATER

main87128-30050

8712835020GROMMET, HEATER

main87128-35020

8871830190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30190

8889735030VALVE, COOLER MAGNET

main88897-35030

888993A080COVER, EVAPORATOR

main88899-3A080

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015950327

main90159-50327

9015960195

main90159-60195

9017906282

main90179-06282

35 parts on this diagram · 1 diagram in section
