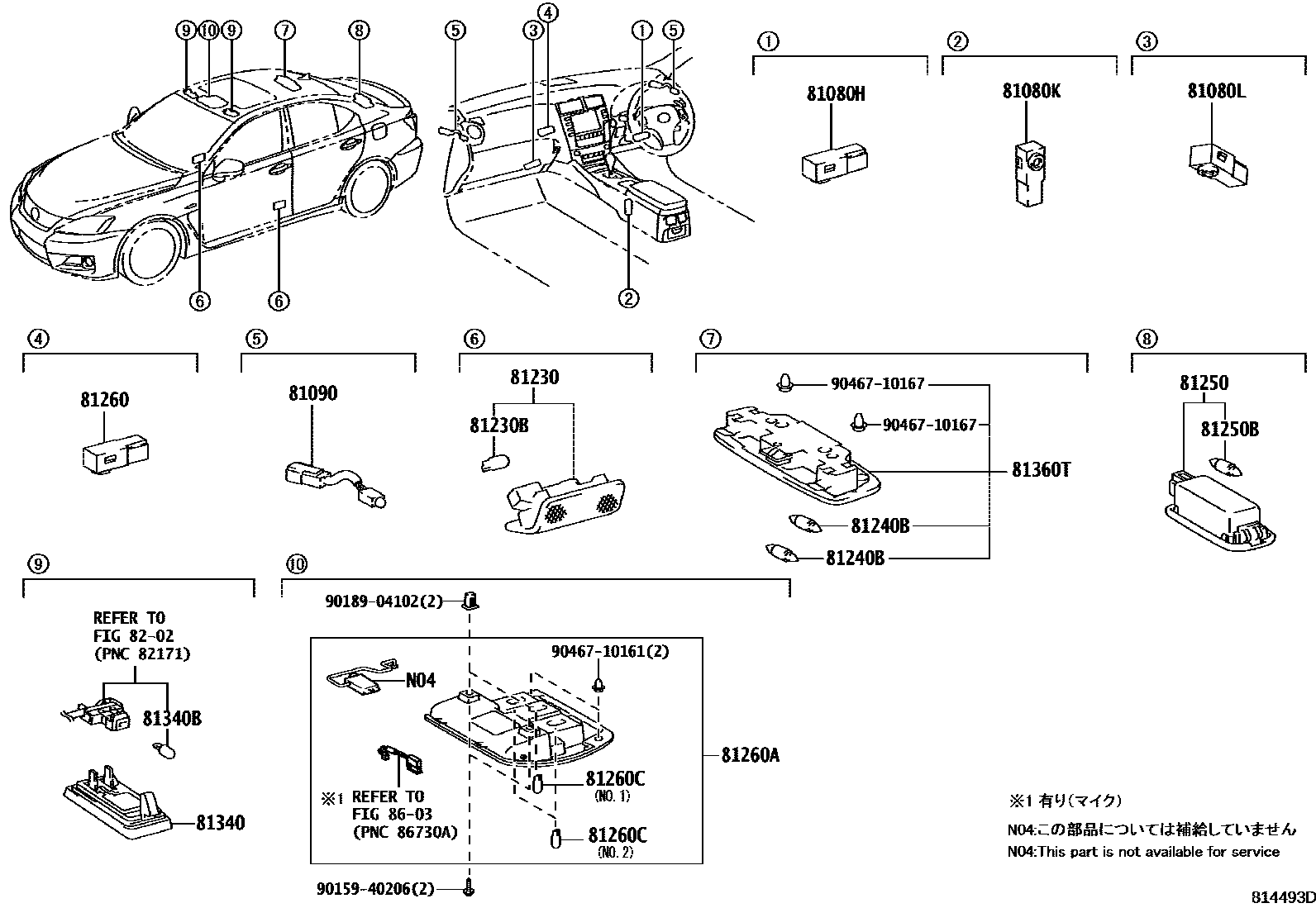

INTERIOR LAMP

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-22040iUSE20200712-201408

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-22040iUSE20200712

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-22040iUSE20200712-201408

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-53011×2iUSE20200712-201408

81230LAMP ASSY, COURTESY

main81230-30200×2iUSE20201309

main81230-47010×2iUSE20201008-201308

main81230-53020×2iUSE20200712-201008

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iUSE20200712-201408

81240BBULB, ROOM LAMP, NO.1

main90981-14001×2iUSE20200712-201408

81250LAMP ASSY, ROOM, NO.2

main81250-48010iUSE20200712

81250BBULB, ROOM LAMP, NO.2

main99132-13050iUSE20200712-201408

81260LAMP ASSY, GLOVE BOX

main81080-30010iUSE20200712-201408

81260ALAMP ASSY, MAP

main81260-53220-C0supersedes 81260-53111-C0iUSE20200712-200808

main81260-53380-C0supersedes 81260-53350-C0iUSE20200808-200809

main81260-53381-C0supersedes 81260-53351-C0iUSE20200810-200903

main81260-53382-C0supersedes 81260-53352-C0iUSE20200904-200908

main81260-53A20-C0supersedes 81260-53890-C0iUSE20200908-201408

81260CBULB(FOR MAP LAMP)

main90981-11020iUSE20200712-201408

main99132-12050×2iUSE20200712-201408

81340LAMP ASSY, VANITY

main81340-30100-C0×2iUSE20200712-201206

BLACK,TRIM2#

main81340-30110×2iUSE20201206-201408

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iUSE20200712-201408

81360TLAMP ASSY, SPOT

main81360-53010-C0iUSE20200712-201408

BLACK,TRIM2#

8202WIRING & CLAMP

→ Go to FIG 82-02

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

9015940206

main90159-40206

9018904102

main90189-04102

9046710161

main90467-10161

9046710167

main90467-10167

21 parts on this diagram · 1 diagram in section
