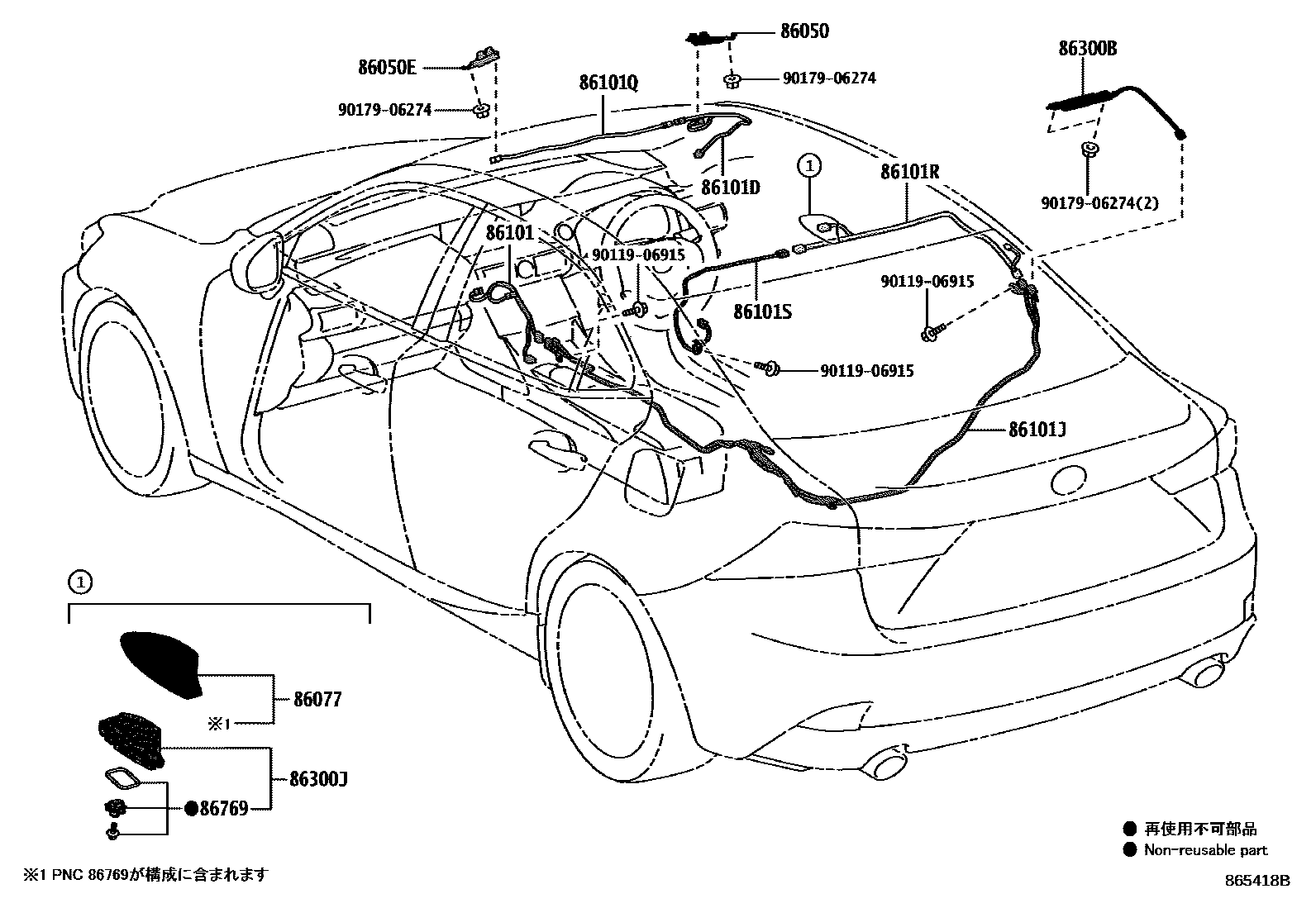

ANTENNA

0001 1 0002 1

86050ANTENNA ASSY, TELEVISION

main86050-53180iASE30,AVE3#,GSE3#201508-201610

86050EANTENNA ASSY, TELEVISION

main86050-53190iASE30,AVE3#,GSE3#201508-201610

86077COVER KIT, ANTENNA

main86077-53010-A0iAVE30,GSE3#201304-201508

WHITE PEARL CS.,077

main86077-53010-A1iASE30,AVE3#,GSE3#201508-201610

WHITE NOVA GF.,083

main86077-53010-A2iASE30,AVE3#,GSE3#201508-201610

SONIC QUARTZ,085

main86077-53010-B0iASE30,AVE3#,GSE3#201508-201610

MERCURY GRAY MC.,1H9

main86077-53010-B1iASE30,AVE3#,GSE31201610-201809

PLATINUM SILVER ME.,1J4

main86077-53010-B2iASE30,AVE3#,GSE31201610-202009

SONIC TITANIUM,1J7

main86077-53010-B3iASE30,AVE3#,GSE31201809-202009

SONIC SILVER,1J2

main86077-53010-B6iASE30,AVE3#,GSE31201909-202009

MANGANESE LUSTER,1K2

main86077-53010-C0iASE30,AVE3#,GSE31201610-202009

BLACK,212

main86077-53010-C1iAVE30,GSE3#201304-201508

STARLIGHT BLACK GF.,217

main86077-53010-C3iASE30,AVE3#,GSE31201610-202009

GRAPHITE BLACK GF.,223

main86077-53010-D0iAVE30,GSE3#201304-201508

RED MC.CS.,3R1

main86077-53010-D1iASE30,AVE3#,GSE31201809-202009

RED,3T5

main86077-53010-D3iASE30,AVE3#,GSE31201610-202009

MADDER RED,3T2

main86077-53010-J0iAVE30,GSE3#201304-201508

BLUE ME.,8U1

main86077-53010-J1iAVE30,GSE3#201304-201508

LAPIS LAZULI MC.,8V3

main86077-53010-J2iASE30,AVE3#,GSE31201610-202009

BLUE,8X1

main86077-53010-J4iASE30,AVE3#,GSE31201610-201909

DEEP BLUE MC.,8X5

main86077-53030-A0iASE30,AVE3#,GSE31202009-202110

WHITE NOVA GF.,083

main86077-53030-A1iASE30,AVE3#202111

SONIC QUARTZ,085

main86077-53030-B0iASE30,AVE3#,GSE31202009-202110

SONIC TITANIUM,1J7

main86077-53030-B1iASE30,AVE3#,GSE31,USE30202111

SONIC CHROME,1L1

main86077-53030-B2iASE30,AVE3#,GSE31202009-202110

SONIC IRIDIUM,1L2

main86077-53030-B5iASE30,AVE3#,GSE31,USE30202209

TITANIUM CARBIDE GRAY,1L8 ,2YX

main86077-53030-C0iASE30,AVE3#,GSE31,USE30202111

GRAPHITE BLACK GF.,223

main86077-53030-C1iASE30,AVE3#,GSE31,USE30202209-202411

BLACK,2YX

main86077-53030-D0iASE30,AVE3#202009-202110

RED MC.CS.,3R1

main86077-53030-D1iASE30,AVE3#,GSE31,USE30202111

RADIANT RED CONTRAST LAYE,3T5

main86077-53030-J0iASE30,AVE3#,GSE31202009-202110

HEAT BLUE CONTRAST LAYERI,8X1

main86077-53030-J1iASE30,AVE3#,GSE31,USE30202111-202411

CELESTIAL BLUE GF.,8Y6

86101CORD SUB-ASSY, ANTENNA

main86101-53840iAVE30,GSE3#201304-201508

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-53C20iAVE30,GSE3#201304-201508

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-53D20iAVE30,GSE3#201304-201508

main86101-53K00iASE30,AVE3#,GSE31202009-202110

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-53C30iAVE30,GSE3#201304-201508

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-53D60iAVE30,GSE3#201304-201508

main86101-53D61iASE30,AVE3#,GSE31201610-202009

main86101-53J30iASE30,AVE3#,GSE31202009-202110

86101SCORD SUB-ASSY, ANTENNA

main86101-53E90iASE30,AVE3#,GSE3#201508-201610

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-33410iASE30,AVE3#,GSE31,USE30202111

main86300-53250iASE30,AVE3#,GSE31201610-202009

86300JANTENNA ASSY, ROOF

main86760-53100iAVE30,GSE3#201304-201508

main86760-62030iASE30,AVE3#,GSE31202009-202110

86769HOUSING, ROOF ANTENNA

main86769-53010iAVE30,GSE3#201304-201508

main86769-62010iASE30,AVE3#,GSE31202009-202110

9011906915

main90119-06915

9017906274

main90179-06274

14 parts on this diagram · 2 diagrams in section
