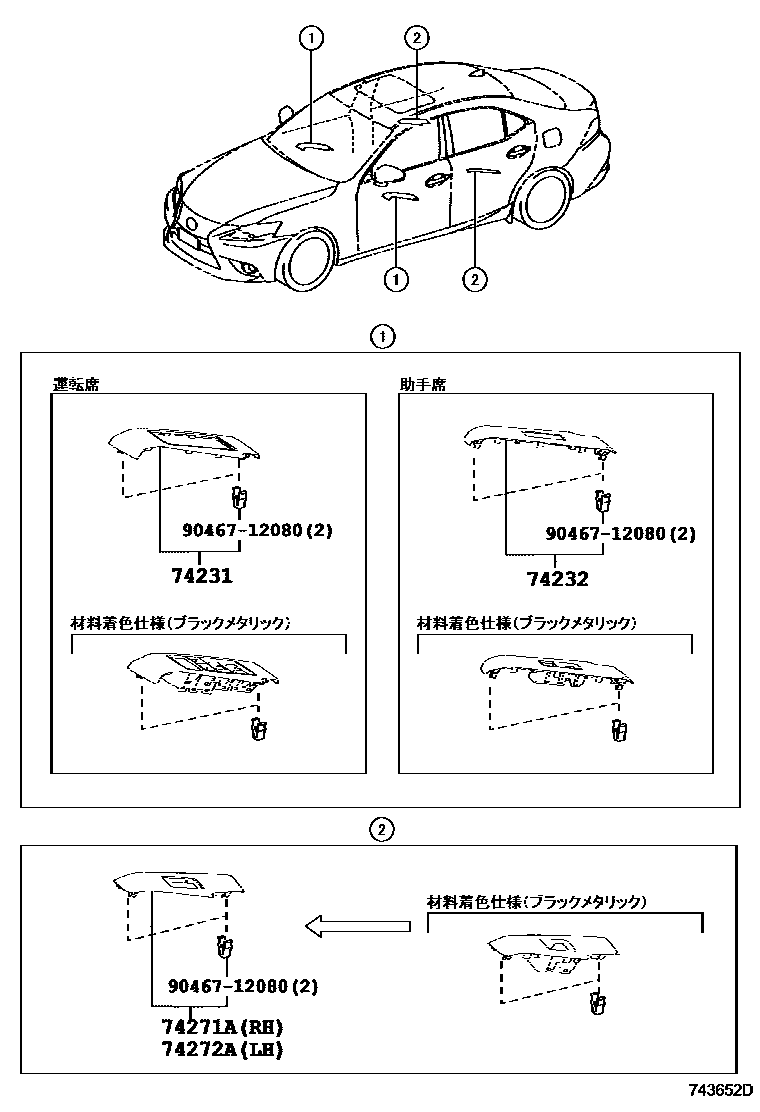

ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
BLACK ME. 21BK25,TRIM0#,1#,2#,3#,5#
BLACK METALLIC,TRIM0#,1#,2#
74232PANEL, FRONT ARMREST BASE, UPPER LH
BLACK ME. 21BK25,TRIM0#,1#,2#,3#,5#
BLACK METALLIC,TRIM0#,1#,2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
BLACK ME. 21BK25,TRIM0#,1#,2#,3#,5#
BLACK METALLIC,TRIM0#,1#,2#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
BLACK ME. 21BK25,TRIM0#,1#,2#,3#,5#
BLACK METALLIC,TRIM0#,1#,2#
9046712080
main90467-12080
5 parts on this diagram · 2 diagrams in section
