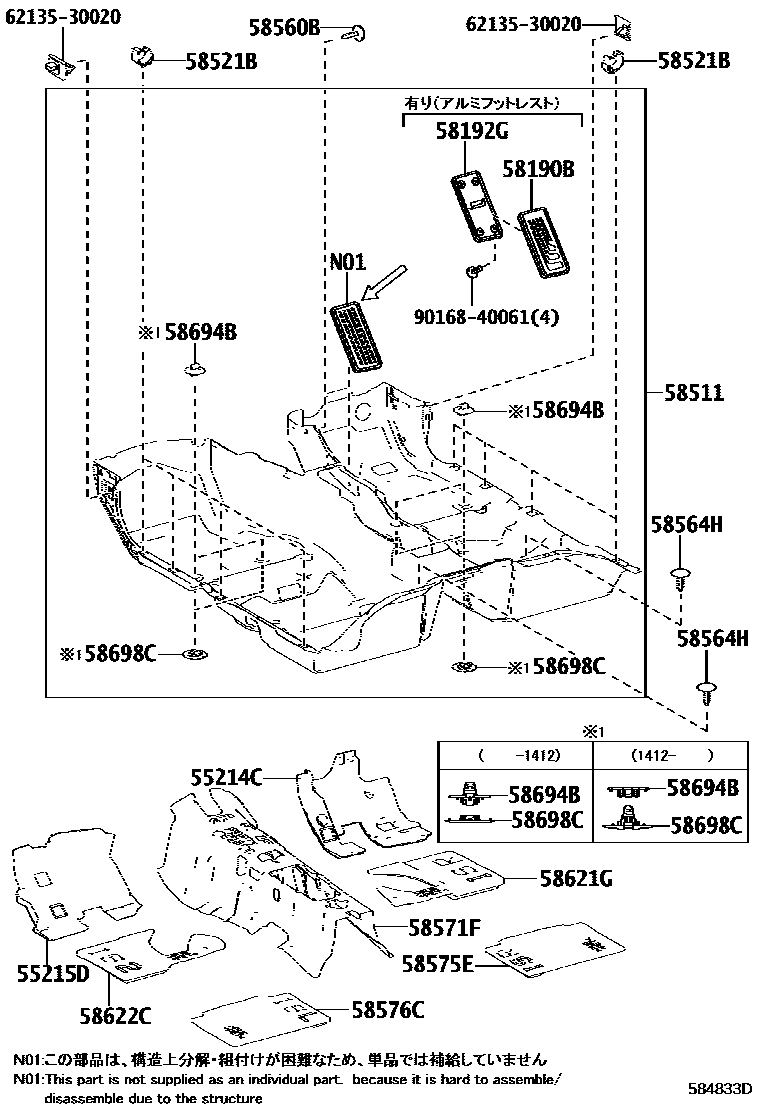

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58190BREST ASSY, FRONT FLOOR FOOT
58192GPANEL, FOOTREST, NO.2
58511MAT, FLOOR, FRONT
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
58521BHOOK, FLOOR CARPET
58560BCLIP(FOR FLOOR CARPET, REAR)
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,1#,2#,3#,5#
58564HCLIP(FOR REAR FLOOR CARPET)
LT.GRAY
58571FPAD, FRONT FLOOR, FRONT
58575EPAD, FRONT FLOOR, REAR NO.1
58576CPAD, FRONT FLOOR, REAR NO.2
58621GPAD, FRONT FLOOR SILENCER, RH
58622CPAD, FRONT FLOOR SILENCER, LH
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
6213530020FRAME, REAR SIDE WINDOW
main62135-30020
9016840061
main90168-40061
17 parts on this diagram · 2 diagrams in section
