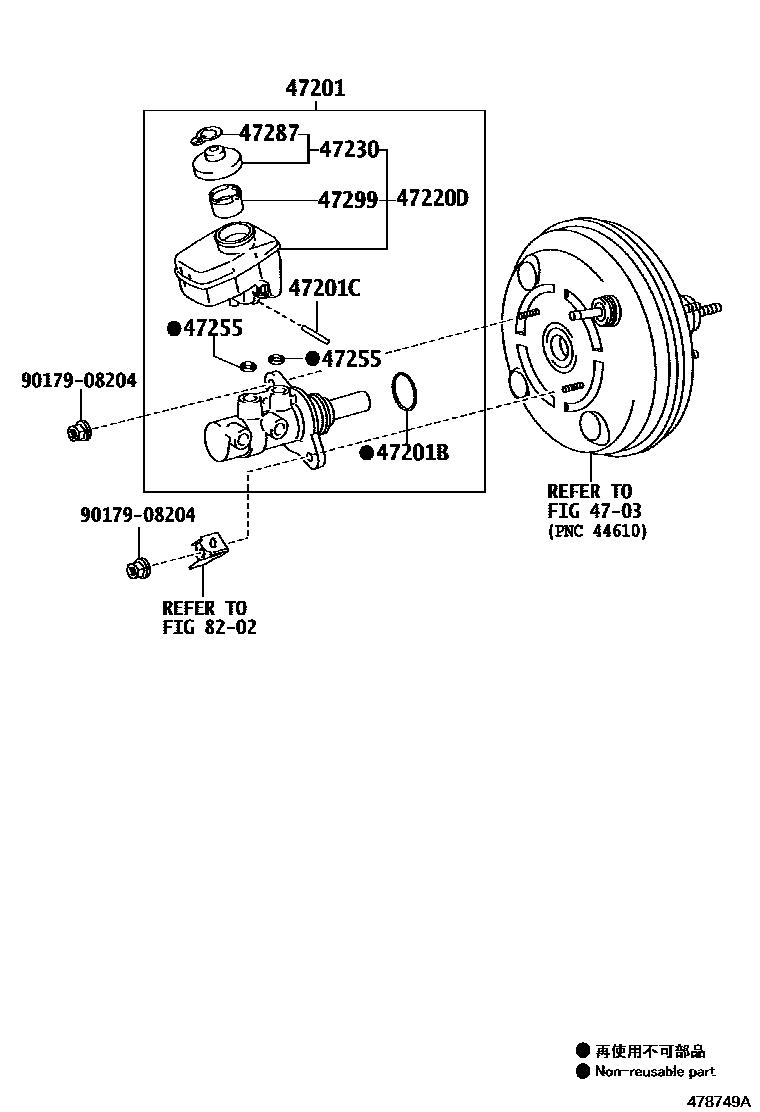

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30792iGSE3#201508-201610

main47201-30830iAVE30201304-201508

main47201-30860iGSE31201610-201710

main47201-30880iGSE31201710-202009

main47201-53300iASE30201508-201610

main47201-53310iASE30,GSE31,USE30202111

main47201-53330iAVE3#202204

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASE30,GSE31201610-202009

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAVE30,GSE3#201304-201508

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-30210iGSE3#201304-201508

main47220-30230iAVE30201304-201508

main47220-53090iAVE3#202204

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-11020iAVE3#202204

main47230-20140iAVE30,GSE3#201304-201508

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iAVE30,GSE3#201304-201508

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iAVE3#202203-202204

main47287-20010iAVE30,GSE3#201304-201508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASE30,GSE31201610-202009

main47299-30190iAVE3#201610-202009

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908204

main90179-08204

11 parts on this diagram · 3 diagrams in section
