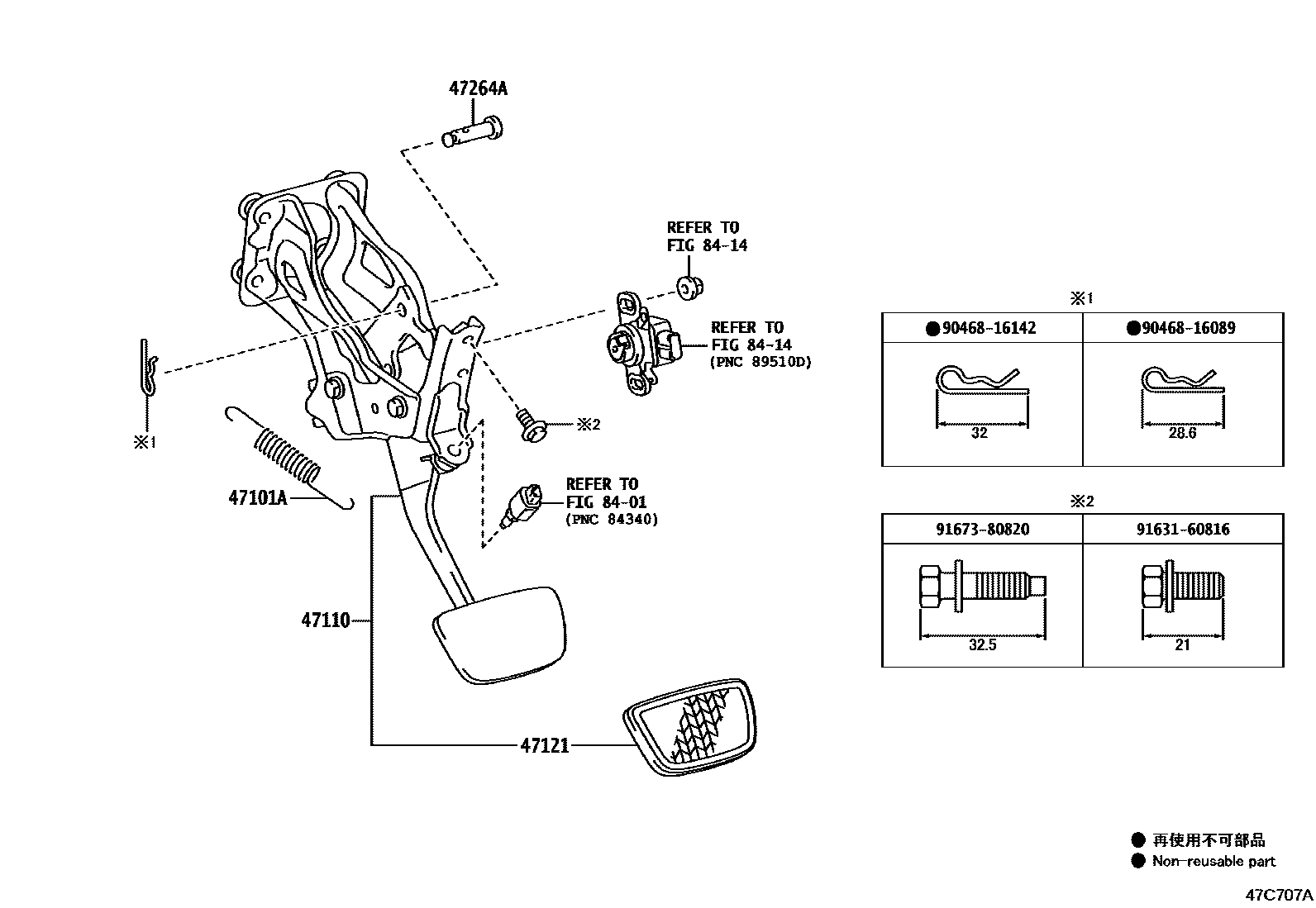

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-11005iAVE3#202111

main90507-12045iASE30,AVE3#,GSE3#201508-201610

main90507-13009iASE30,GSE31202009-202110

main90507-15015iASE30,GSE31,USE30202111

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24300supersedes 47110-53360iASE30; GSE31202009-202110

main47110-53370iASE30; GSE31,USE30202111

main47110-24110iASE30201603-201610

main47110-24130supersedes 47110-24120iAVE3#201603-201610

main47110-24340supersedes 47110-24331iAVE3#202009-202108

main47110-24341supersedes 47110-24331iAVE3#202109-202110

main47110-30570supersedes 47110-30560iGSE3#201412-201508

main47110-30610supersedes 47110-30600iAVE30201304-201508

47121PAD, BRAKE PEDAL

main47121-11020supersedes 47121-62010iASE30,AVE3#; GSE31202009-202110

main47121-30090iASE30,AVE3#201603-201610

main47121-48020iASE30,AVE3#,GSE31201902-201909

47264APIN(FOR PUSH ROD)

main90249-06180iASE30,GSE3#201508-201610

main90249-08308iASE30,GSE31,USE30202111

main90249-10199iAVE3#201508-201610

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9046816089

main90468-16089

9046816142

main90468-16142

9163160816

main91631-60816

9167380820

main91673-80820

10 parts on this diagram · 2 diagrams in section
