IGNITION COIL & SPARK PLUG / GLOW PLUG

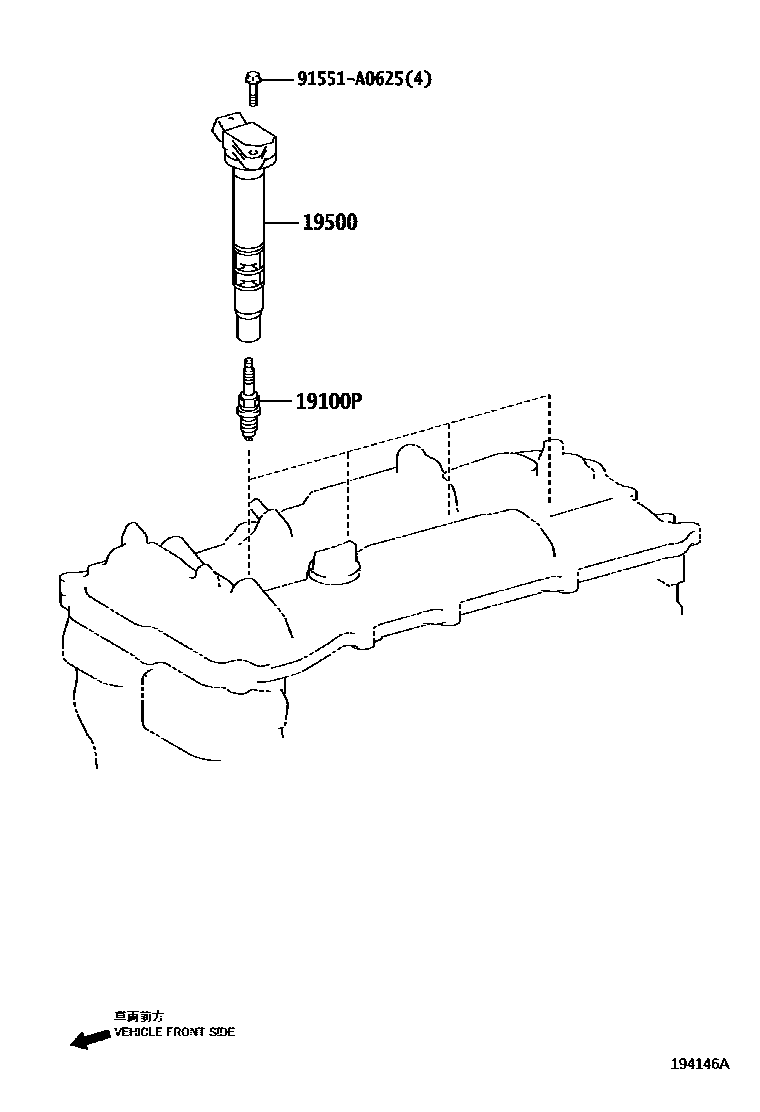

Parts diagram

19100PPLUG, SPARK

main90919-01249×6i201304-201508

main90919-01263×4i201610-202009

main90919-01276×4i201508-201610

main90919-01279×8i202209

19500COIL ASSY, IGNITION

main90919-02256×6i201508-201604

main90919-02260×8i202209

main90919-02269×4i201610-202009

main90919-02273×6i201710-202009

91551A0625

main91551-A0625

3 parts on this diagram · 5 diagrams in section
