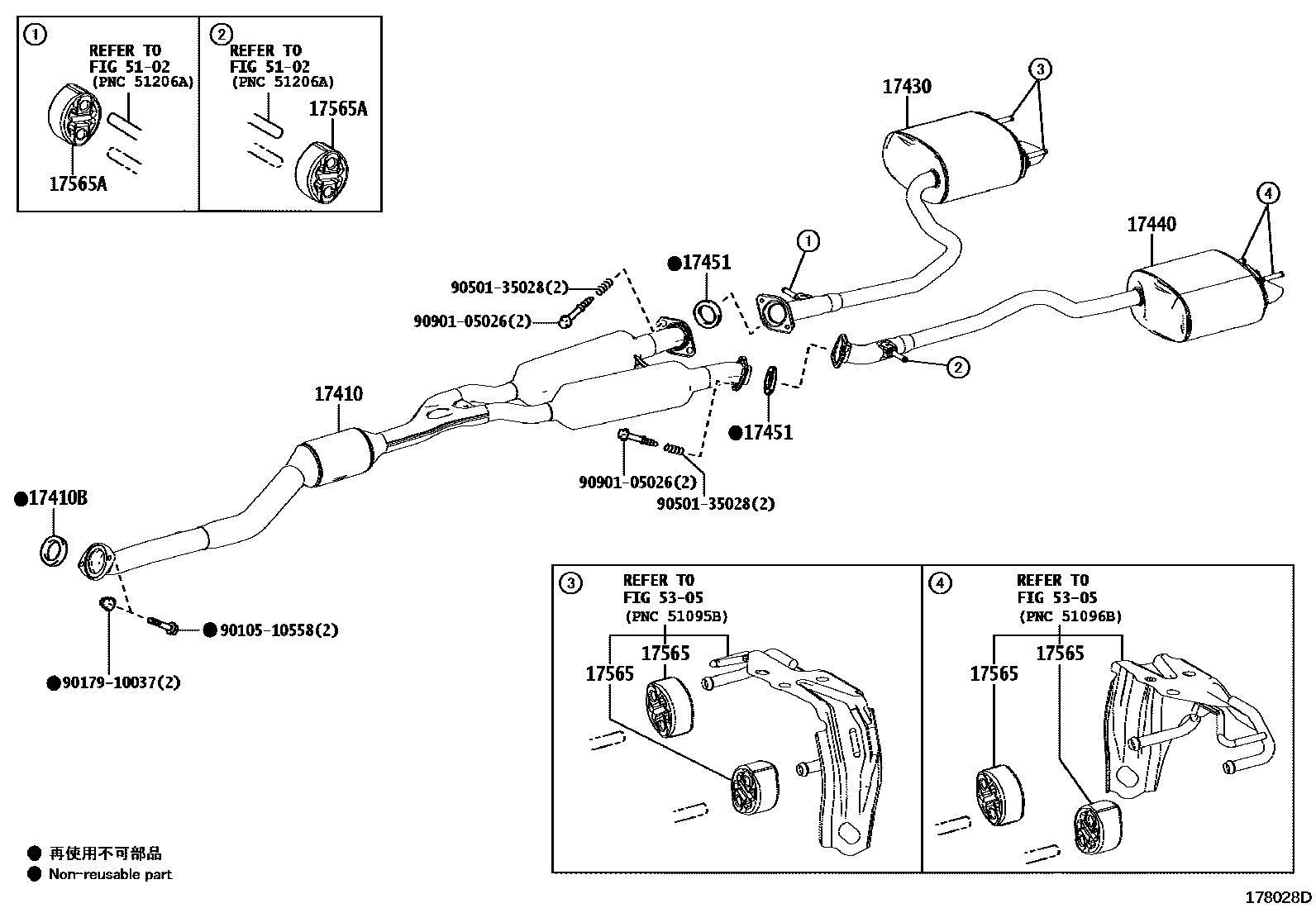

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31G00i2GRF..GSE31201610-201710

main17410-31G20i4GRFSE..GSE30201304-201508

main17410-31G40i4GRFSE..GSE35201508-201610

main17410-31M20i2GRFKS..GSE31202111

main17410-36370i2ARFSE..AVE30201610-202009

main17410-36500i8ARFTS..ASE30201610-202009

main17410-36510i2ARFSE..AVE35201508-201610

main17410-38651i2URGSE..USE30202209

17410BGASKET, EXHAUST PIPE

main90917-06070×2i2URGSE..USE30202209

main90917-06078i2ARFSE..AVE3#; 2GRFKS..GSE31202111

main90917-06090i8ARFTS..ASE30202009-202110

17430PIPE ASSY, EXHAUST, TAIL

main17430-31C90i2GRF..GSE31201508-201610

main17430-31D00i4GRFSE..GSE35201508-201610

main17430-31D50i2GRF..GSE31201610-202009

main17430-31G30i2GRFKS..GSE31202009-202110

main17430-36230i8ARFTS..ASE30201610-202009

main17430-36250i2ARFSE..AVE3#201508-201610

main17430-36450i8ARFTS..ASE30201508-201610

main17430-38780i2URGSE..USE30202209

main17430-36310supersedes 17430-36450i8ARFTS..ASE30202111

main17430-36630supersedes 17430-36621i2ARFSE..AVE3#202009-202110

main17430-36631supersedes 17430-36621i2ARFSE..AVE3#202302

17440PIPE, EXHAUST TAIL, LH

main17440-31170i2GRF..GSE31201508-201610

main17440-31180i4GRFSE..GSE30,35201304-201508

main17440-31210i2GRF..GSE31201610-202009

main17440-31330i2GRFKS..GSE31202009-202110

main17440-36020i2ARFSE..AVE3#201508-201610

main17440-36090i8ARFTS..ASE30201508-201610

main17440-36110i8ARFTS..ASE30201610-202009

main17440-38150i2URGSE..USE30202209

main17440-36130supersedes 17440-36090i8ARFTS..ASE30202009-202110

main17440-36170supersedes 17440-36161i2ARFSE..AVE3#202111-202301

main17440-36171supersedes 17440-36161i2ARFSE..AVE3#202302

17451GASKET, EXHAUST PIPE

main17451-28022×2i2URGSE..USE30202209

main17451-28032×2i2ARFSE,8ARFTS,2GRF..ASE30,AVE3#,GSE31201610-202009

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×4i2ARFSE,2GRF,4GRFSE..AVE30,GSE3#201304-201508

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×2i2ARFSE,2GRF,4GRFSE..AVE30,GSE3#201304-201508

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9010510558

main90105-10558

9017910037

main90179-10037

9050135028

main90501-35028

9090105026

main90901-05026

13 parts on this diagram · 9 diagrams in section
