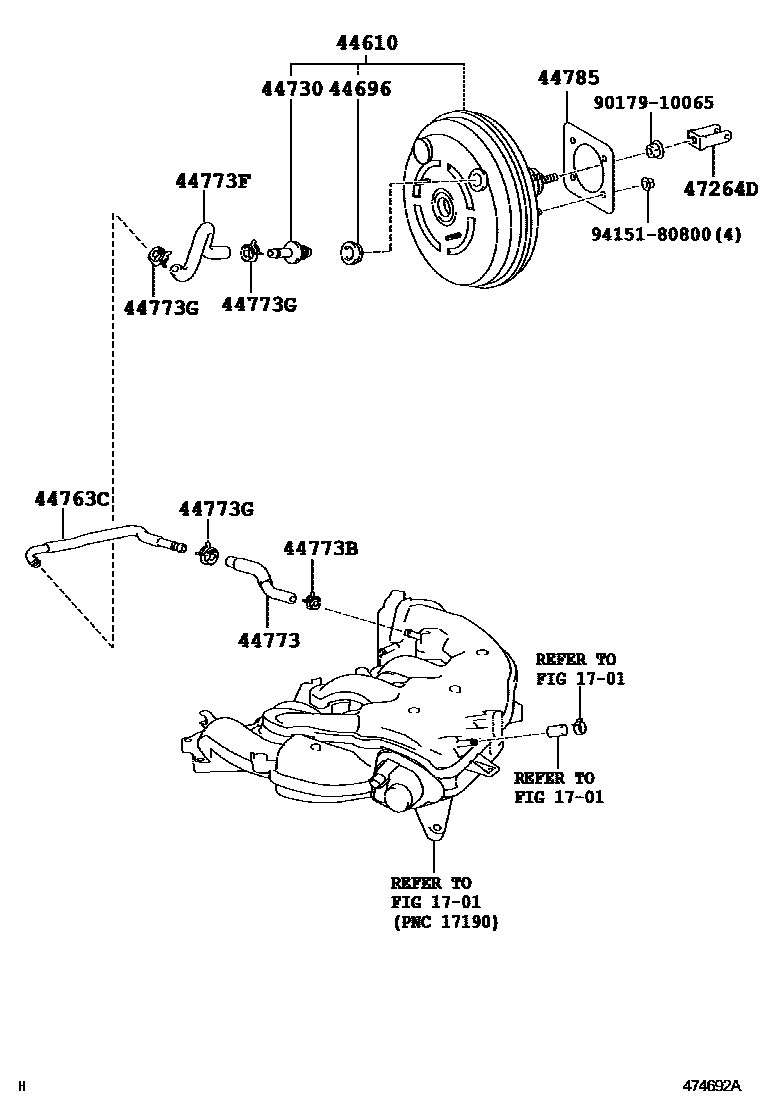

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-53250iGSE20,25200808-200902

main44610-53251iGSE20,25201008-201304

main44610-53260iGSE21201008-201304

44696GROMMET, CHECK VALVE

main90480-24015iGSE21200808-201008

main90480-24439iGSE20,25200808-201008

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iGSE20,25200808-201008

main44730-22150iGSE20,25200508-200608

main44730-28030iGSE21200808-201008

44763CTUBE, HOSE TO HOSE, NO.2

main44763-53020iGSE2#200508-200808

44773HOSE, VACUUM, NO.2

main44773-53050iGSE2#200508-200808

44773BCLIP, NO.2(FOR VACUUM HOSE, NO.2)

main90467-16014iGSE2#200508-200808

44773FHOSE, UNION TO CHECK VALVE

main44773-53040iGSE2#200508-200808

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main96133-41500×3iGSE2#200508-200808

44785GASKET, BRAKE BOOSTER

main44785-47010iGSE2#200508-200808

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGSE2#200508-200808

9017910065

main90179-10065

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
