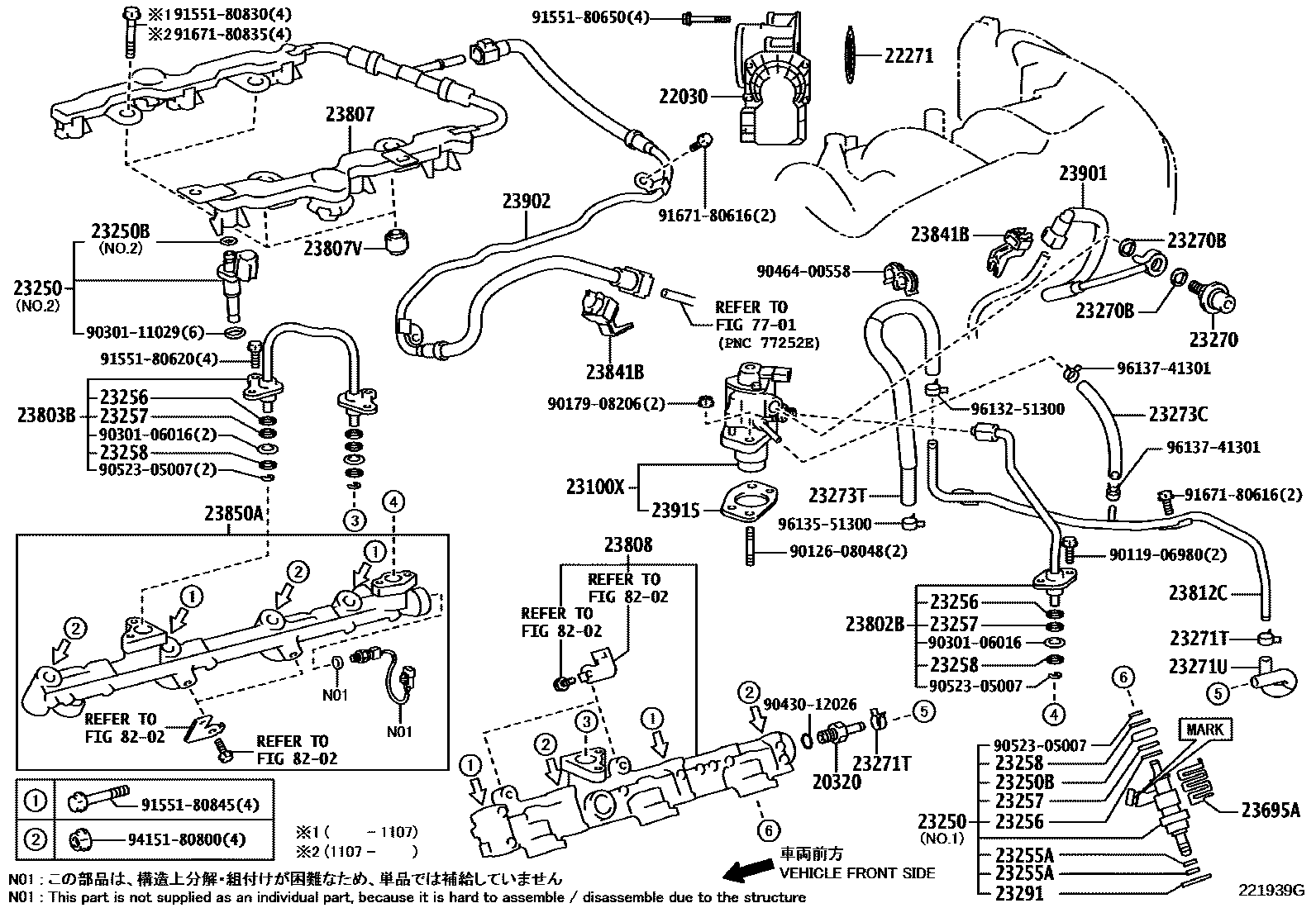

FUEL INJECTION SYSTEM

0001 1 0002 1

20320VALVE ASSY, FUEL RELIEF

main20320-31010i2GRFSE,4GRFSE..GSE2#201008

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i4GRFSE..GSE20,25201008

main22030-31040i2GRFSE..GSE21200808-201008

22271GASKET, THROTTLE BODY

main22271-31020i2GRFSE..GSE21200508-200808

main22271-31030i4GRFSE..GSE20,25200808-201008

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-39615i2GRFSE,4GRFSE..GSE2#200508-200601

main23100-39617i2GRFSE,4GRFSE..GSE2#200601-200808

main23100-39618i2GRFSE,4GRFSE..GSE2#200909-201008

main23100-39645i2GRFSE,4GRFSE..GSE2#201108

23250INJECTOR ASSY, FUEL

main23209-31070×6i2GRFSE..GSE21200808-201008

main23209-39057-A0×6i4GRFSE..GSE20,25200808-201008

MARK BLACK

main23209-39057-B0×6i4GRFSE..GSE20,25201008

MARK BROWN

main23209-39105-A0×6i2GRFSE..GSE21200508-200608

main23209-39105-B0×6i2GRFSE..GSE21200508-200608

main23209-39155-A0×6i2GRFSE..GSE21201008

main23209-39155-B0×6i2GRFSE..GSE21200608-200808

main23209-39155-C0×6i2GRFSE..GSE21201008

main23209-39155-D0×6i2GRFSE..GSE21200608-200808

23250BRING, O(FOR FUEL INJECTOR)

main90301-06017×6i2GRFSE..GSE21201008

main90301-06018×6i2GRFSE..GSE21; 4GRFSE..GSE20,25200808-201008

23255ASEAL, FUEL INJECTOR

main23255-31010×12i2GRFSE,4GRFSE..GSE2#200508-200808

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010×9i2GRFSE,4GRFSE..GSE2#200508-200808

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010×9i2GRFSE,4GRFSE..GSE2#200508-200808

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011×9i2GRFSE,4GRFSE..GSE2#200508-200808

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-31010i2GRFSE,4GRFSE..GSE2#200508-200808

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010×2i2GRFSE,4GRFSE..GSE2#200508-200808

23271TCLAMP OR CLIP(FOR FUEL HOSE)

main96137-51501×2i2GRFSE,4GRFSE..GSE2#200508-200808

23271UHOSE, FUEL, NO.1

main23271-31060i2GRFSE,4GRFSE..GSE2#200508-200808

23273CHOSE, FUEL, NO.2

main23273-31050i2GRFSE,4GRFSE..GSE2#200808-201008

23273THOSE, FUEL, NO.3

main23273-31060i2GRFSE,4GRFSE..GSE2#200508-200808

23291INSULATOR, INJECTOR VIBRATION

main23291-31011×6i2GRFSE,4GRFSE..GSE2#200508-200808

23695ACLAMP, NOZZLE HOLDER

main23695-31010×6i2GRFSE,4GRFSE..GSE2#200508-200808

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31042i2GRFSE,4GRFSE..GSE2#200508-200611

main23802-31043i2GRFSE,4GRFSE..GSE2#200611-200808

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-31012i2GRFSE,4GRFSE..GSE2#200508-200611

main23803-31013i2GRFSE,4GRFSE..GSE2#201008

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31060i2GRFSE..GSE21200508-200512

main23807-31061i2GRFSE..GSE21200512-200808

main23807-31062i2GRFSE..GSE21201111

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08023×4i2GRFSE..GSE21200508-200808

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-31010i4GRFSE..GSE20,25200508-200808

main23808-31020i2GRFSE..GSE21200508-200808

main23808-31070i2GRFSE..GSE21201008

23812CPIPE, FUEL, NO.2

main23812-31020i2GRFSE,4GRFSE..GSE2#200508-200808

main23812-31050i2GRFSE,4GRFSE..GSE2#201110

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2GRFSE..GSE21; 4GRFSE..GSE20,25200705-200808

main23841-28010×2i2GRFSE..GSE21; 4GRFSE..GSE20,25200508-200606

23850APIPE ASSY, FUEL DELIVERY W/SENSOR, RH

main23850-31010i2GRFSE..GSE21201008

main23850-31020i4GRFSE..GSE20,25201008

23901TUBE SUB-ASSY, FUEL

main23901-31011i2GRFSE,4GRFSE..GSE2#200808-201008

main23901-31140i4GRFSE..GSE20,25201008-201110

main23901-31310i4GRFSE..GSE20,25201110

23902TUBE SUB-ASSY, FUEL

main23902-31010i2GRFSE..GSE21200508-200512

main23902-31011i2GRFSE..GSE21201008-201111

main23902-31012i2GRFSE..GSE21201111

23915INSULATOR, FUEL PUMP

main23915-46011i2GRFSE,4GRFSE..GSE2#201008

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906980

main90119-06980

9012608048

main90126-08048

9017908206

main90179-08206

9030106016

main90301-06016

9030111029

main90301-11029

9043012026

main90430-12026

9046400558

main90464-00558

9052305007

main90523-05007

9155180620

main91551-80620

9155180650

main91551-80650

9155180830

main91551-80830

9155180845

main91551-80845

9167180616

main91671-80616

9167180835

main91671-80835

9415180800

main94151-80800

9613251300

main96132-51300

9613551300

main96135-51300

9613741301

main96137-41301

49 parts on this diagram · 2 diagrams in section
