MANIFOLD

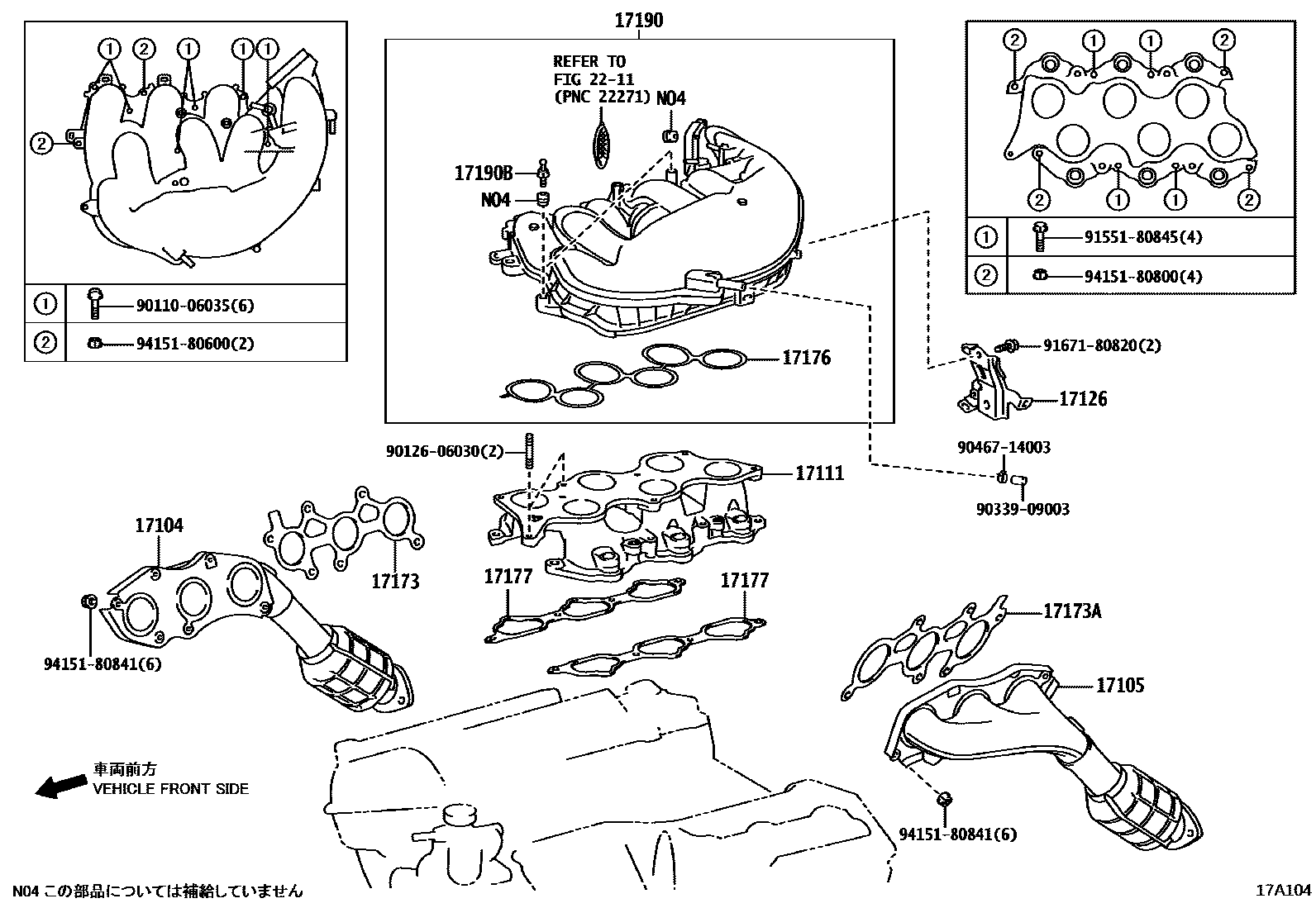

Parts diagram

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-31030i200508-200802

main17140-31040i200808-201008

main17140-31120i200508-200805

main17140-31330i200802-200808

main17140-31340i200808-200908

main17140-31570i201008

main17140-31580i201008

main17140-31640i201008

main17140-31670i200908-201008

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-31030i200808-201008

main17150-31040i200508-200803

main17150-31120i200508-200808

main17150-31450i200803-200808

main17150-31570i201008

main17150-31640i201008

main17150-31670i200908-201008

main17150-31700i201008

17111MANIFOLD, INTAKE

main17111-31170i200508-200808

main17111-31171i201107

main17120-31020i200808-201008

17126STAY, SURGE TANK, NO.2

main17126-31020i201008

main17126-31050i200808-201008

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i200508-200808

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i200808-201008

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31050×3i200508-200808

main17176-31060i200508-200808

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31020×2i200808-201008

main17177-31021×2i201110

main17177-31060×2i201008-201107

main17177-31061×2i201107

17190TANK ASSY, INTAKE AIR SURGE

main17190-31040i200508-200808

main17190-31100i201008-201304

17190BBRACKET, INTAKE AIR SURGE TANK, NO.2

main11254-31020×2i200508-200808

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011006035

main90110-06035

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9155180845

main91551-80845

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

20 parts on this diagram · 2 diagrams in section
