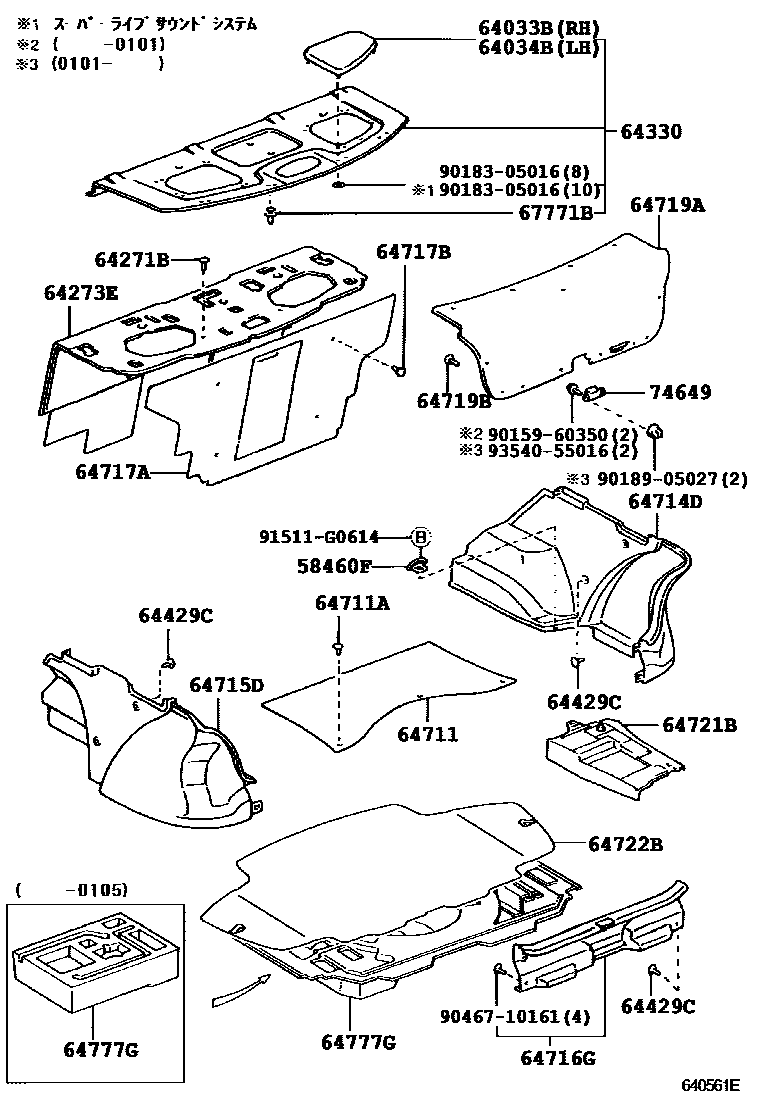

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58460FSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33010×4iGXE10,SXE10..SED200105-200507

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-53010-C0iGXE10; SXE10199904-200005

main64383-53010-A0iSXE10;GXE10..SED..MTM200105-200308

IVORY,TRIM0#

main64383-53010-C0iGXE10,SXE10..SED200105

BLACK,TRIM2#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-53010-C0iGXE10; SXE10199904-200005

main64384-53010-A0iGXE10,SXE10200005-200105

IVORY,TRIM0#

main64384-53010-C0iGXE10,SXE10199810-200105

BLACK,TRIM2#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-05020-22×2iGXE10..SED..ATM; SXE10..ATM; SXE10;GXE10..MTM200308

64273EPAD, ROOM PARTITION

main64273-53010iGXE10;SXE10..MTM199810-200105

main64273-53030iSXE10..ATM199810-200105

main64273-53031iSXE10..ATM200307

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-53010-A0iGXE10199904-200005

main64330-53010-C0iGXE10,SXE10..SED200105

main64330-53020-A0iGXE10199904-200005

main64330-53020-C0iGXE10,SXE10..SED200105

main64330-53050-A0iSXE10..MTM200105-200308

main64330-53050-C0iSXE10..MTM199810-200105

main64330-53070-A0iSXE10;GXE10..SED..MTM200105-200308

main64330-53070-C0iGXE10,SXE10..SED200105

main64330-53080-A0iGXE10,SXE10..SED200105-200308

main64330-53080-C0iGXE10,SXE10..SED200105

main64330-53090-A0iSXE10..MTM200105-200308

IVORY,TRIM0#

main64330-53090-C0iSXE10..MTM200105-200308

BLACK,TRIM2#

64429CCLIP(FOR LUGGAGE COMPARTMENT SIDE TRAY)

main90467-08186-C0×13iGXE10,SXE10..SED200105-200308

BLACK,TRIM0#,2#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-53010-C0iGXE10; SXE10199904-200005

BLACK,TRIM0#,2#; BLACK,TRIM2#

64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)

main90467-08186-C0×3iGXE10,SXE10199810-200005

BLACK,TRIM2#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-53010-C0iGXE10; SXE10199904-200005

BLACK,TRIM0#,2#; BLACK,TRIM2#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-53010-C0iGXE10,SXE10199810-199904

BLACK,TRIM2#

main64715-53011-C0iSXE10;GXE10..SED..MTM200105-200308

BLACK,TRIM0#,2#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-53010-C0iGXE10,SXE10199810-199904

BLACK,TRIM2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-53010-C0iGXE10; SXE10199904-200005

main64717-53011-C0iGXE10,SXE10..SED200212-200307

main64717-53012-C0iGXE10..SED..ATM; SXE10;GXE10..SED..MTM200307-200507

main64717-53020-C0iGXE10,SXE10199810-199904

BLACK,TRIM2#

main64717-53021-C0iSXE10200308-200507

BLACK,TRIM2#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08186-C0×4iGXE10,SXE10199810-200005

BLACK,TRIM2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-53020-C0iGXE10; SXE10199904-200005

BLACK,TRIM0#,2#; BLACK,TRIM2#

main64719-53030-C0iSXE10199904-200005

main64719-53031-C0iSXE10;GXE10..SED..MTM200212-200308

BLACK,TRIM0#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×14iGXE10,SXE10200005-200105

BLACK,TRIM0#,2#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-53010iGXE10,SXE10199810-200105

64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2

main64722-53010-C0iGXE10,SXE10200005-200105

BLACK,TRIM0#,2#

main64722-53030-C0iGXE10,SXE10200005-200105

main64722-53040-C0iSXE10;GXE10..SED..MTM200105-200308

BLACK,TRIM0#,2#

main64722-53050-C0iGXE10,SXE10..SED200105-200307

main64722-53051-C0iGXE10,SXE10..SED200307-200507

64777GCUSHION, SPARE WHEEL

main64777-53010iGXE10,SXE10199810-200105

main64779-53070iGXE10,SXE10..SED200105-200212

main64779-53071iGXE10,SXE10..SED200212-200507

67771BRETAINER, PACKAGE TRAY TRIM

main67771-26010iGXE10,SXE10199810-200105

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-30010iGXE10,SXE10199810-200105

9015960350

main90159-60350

9018305016

main90183-05016

9018905027

main90189-05027

9046710161

main90467-10161

91511G0614

main91511-G0614

9354055016

main93540-55016

27 parts on this diagram · 1 diagram in section
