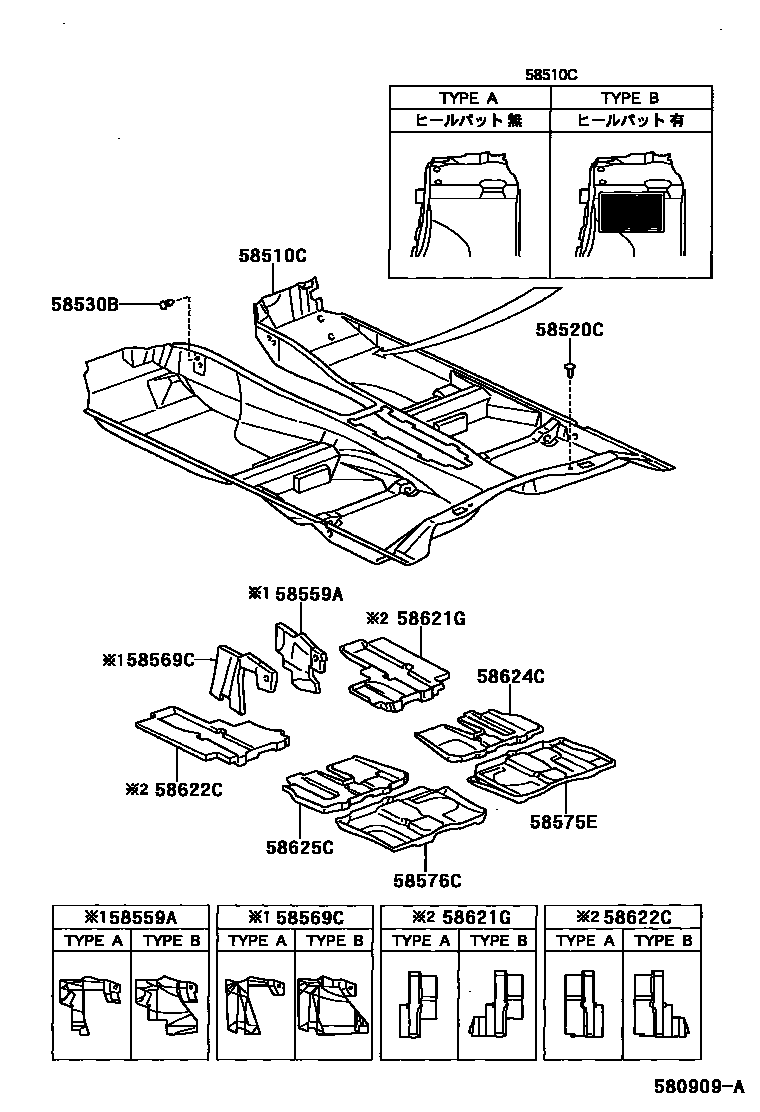

MAT & CARPET

0001 1 0002 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-53010-A0iGXE15,JCE15200106-200208

IVORY,TRIM0#

main58510-53010-C0iGXE15,JCE15200106-200208

BLACK,TRIM2#

main58510-53020-A0iGXE10..WG200106-200208

IVORY,TRIM0#

main58510-53020-C0iGXE10..WG200106-200208

BLACK,TRIM2#

main58510-53050-A0iGXE10,SXE10200005-200103

IVORY,TRIM0#

main58510-53050-C0iGXE10; SXE10199904-200005

BLACK,TRIM0#,2#; BLACK,TRIM2#

main58510-53060-A1iGXE10199904-200005

main58510-53060-C0iGXE10199904-200005

main58510-53080-A0iGXE10,SXE10200005-200103

main58510-53080-C0iGXE10; SXE10199904-200005

main58510-53120-A0iGXE10,SXE10..SED200105-200208

IVORY,TRIM0#

main58510-53120-C0iGXE10,SXE10..SED200105-200208

BLACK,TRIM2#

main58510-53150-A0iGXE10,SXE10..SED200105-200208

main58510-53150-C0iGXE10,SXE10..SED200105-200208

main58510-53190-A0iGXE10..WG..ATM; JCE10200106-200208

main58510-53190-C0iGXE10..WG..ATM; JCE10200106-200208

main58510-53200-A0iGXE10,SXE10200103-200105

IVORY,TRIM0#

main58510-53200-C0iGXE10,SXE10200103-200105

BLACK,TRIM2#

main58510-53220-A0iGXE10,SXE10200103-200105

main58510-53220-C0iGXE10,SXE10200103-200105

main58510-53230-A0iGXE10..SED..ATM200208

IVORY,TRIM0#

main58510-53230-C0iGXE10,SXE10..SED200208

BLACK,TRIM2#

main58510-53240-A0iSXE10;GXE10..SED..MTM200208-200308

main58510-53240-C0iGXE10,SXE10..SED200208

main58510-53250-A0iGXE15200208

IVORY,TRIM0#

main58510-53250-C0iGXE15,JCE15200208

BLACK,TRIM2#

main58510-53260-A0iGXE10..WG200208

IVORY,TRIM0#

main58510-53260-C0iGXE10..WG200208

BLACK,TRIM2#

main58510-53270-A0iGXE10..WG..ATM; JCE10200208-200308

main58510-53270-C0iGXE10..WG..ATM; JCE10200208

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-A1×2iGXE1#,JCE10..WG;GXE10..SED..ATM200105

IVORY,TRIM0#

main90467-06016-C0×2iGXE1#,JCE1#,SXE10200105

BLACK,TRIM2#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09118×2iGXE10,SXE10199810-200105

58559APAD, FRONT FLOOR SIDE, RH

main58559-53010iGXE15,JCE15200106

main58559-53030iGXE10,SXE10199810-200105

main58559-53040iGXE10,SXE10..SED200105

58569CPAD, FRONT FLOOR SIDE, LH

main58569-53010iGXE15,JCE15200106

main58569-53040iGXE10,SXE10199810-200105

main58569-53050iGXE10,SXE10..SED200105

58575EPAD, FRONT FLOOR, REAR NO.1

main58673-53010iGXE10,SXE10199810-200105

main58673-53020iGXE15,JCE15200106

58576CPAD, FRONT FLOOR, REAR NO.2

main58674-53010iGXE10,SXE10199810-200105

main58674-53020iGXE15,JCE15200106

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-53010iGXE10,SXE10199810-200105

main58621-53020iGXE10,SXE10199810-200105

main58621-53030iGXE15,JCE15200106

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-53010iGXE10,SXE10..SED200105

main58622-53020iGXE10,JCE10,SXE10200105

main58622-53030iGXE15,JCE15200106

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-53010iGXE10,SXE10199810-200105

main58624-53020iGXE15,JCE15200106

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-53010iGXE10,SXE10199810-200105

11 parts on this diagram · 2 diagrams in section
