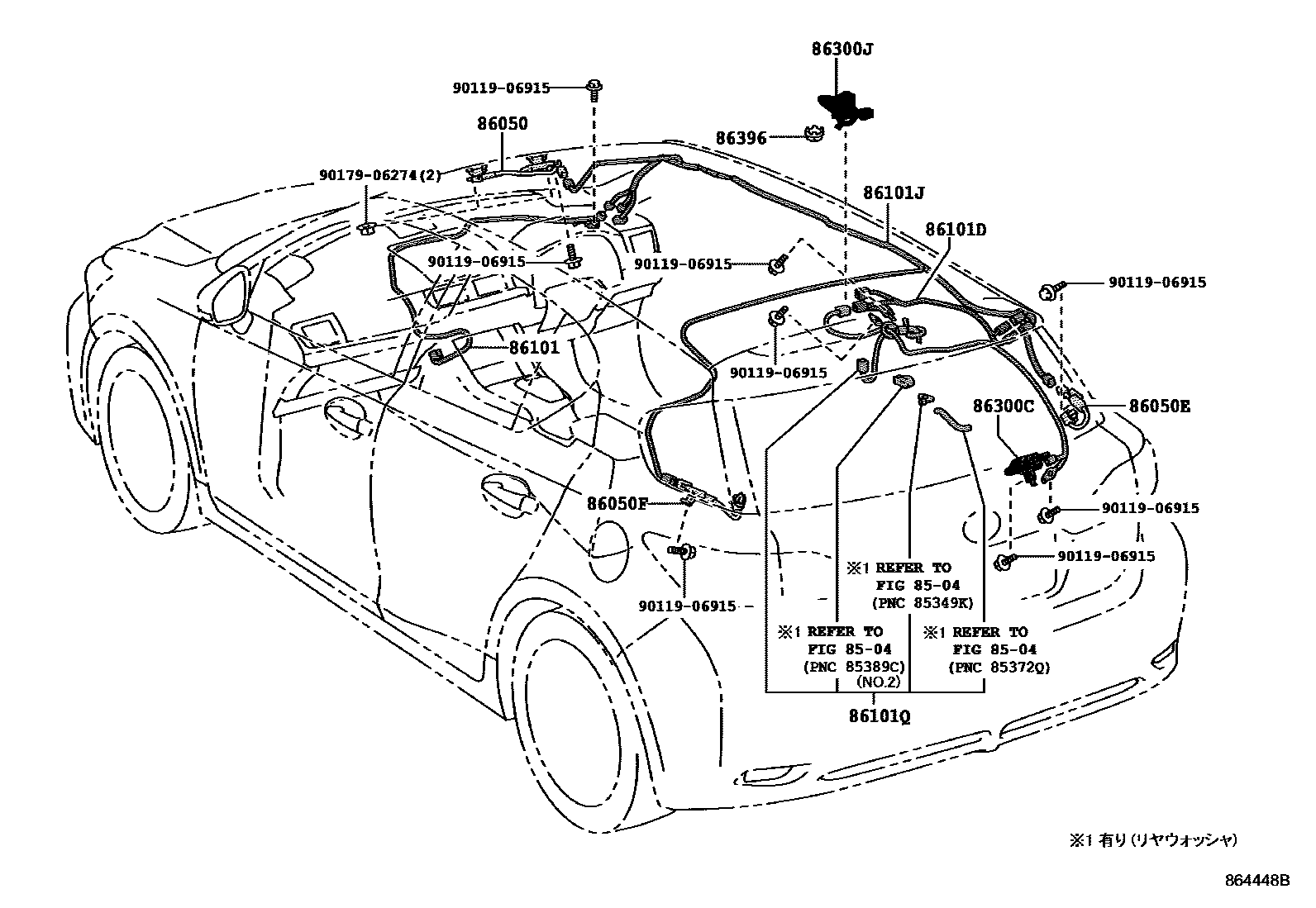

ANTENNA

8504REAR WASHER

→ Go to FIG 85-04

86050ANTENNA ASSY, TELEVISION

main86050-76040i201208-201312

main86050-76070i201708

main86050-76010i201012-201208

86050EANTENNA ASSY, TELEVISION

main86050-76060i201208-201312

main86050-76030i201012-201208

86050FANTENNA ASSY, TELEVISION

main86050-76050i201208-201312

main86050-76020i201012-201208

86101CORD SUB-ASSY, ANTENNA

main86101-76020i201012-201112

main86101-76021i201201-201312

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-76311supersedes 86101-76301i201208-201312

main86101-76310supersedes 86101-76470i201012-201111

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-76350i201208-201312

main86101-76160supersedes 86101-76350i201012-201106

main86101-76161supersedes 86101-76101i201107-201208

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-76281supersedes 86101-76291i201312

main86101-76280supersedes 86101-76290i201012-201109

main86101-76290supersedes 86101-76281i201012-201109

main86101-76291i201110-201208

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-76010i201012-201208

main86300-76060i201208-201312

86300JANTENNA ASSY, ROOF

main86760-76060-A0i201012-201312

WHITE PEARL CS.,077

main86760-76060-A1i201208-201312

WHITE NOVA GF.,083

main86760-76060-B0i201012-201208

SILVER M.M.,1G1

main86760-76060-B1i201108-201312

MERCURY GRAY MC.,1H9

main86760-76060-B3i201208-201312

PLATINUM SILVER ME.,1J4

main86760-76060-C0i201012-201312

BLACK,212

main86760-76060-C1i201012-201312

BLACK OPAL MC.,214

main86760-76060-D0i201012-201312

RED MC.CS.,3R1

main86760-76060-E0i201012-201312

FIRE AGATE M.M.,4V3

main86760-76060-F0i201012-201312

FLARE YELLOW M.M.,5B1

main86760-76060-J0i201012-201312

BLUE ME.,8U1

main86760-76060-J1i201012-201208

SILVERY BLUE ME.,8U9

main86760-76100i201312

main86760-76060-C2i201210-201312

86396NUT, ANTENNA

main86396-47010i201012-201312

9011906915

main90119-06915

9017906274

main90179-06274

13 parts on this diagram · 4 diagrams in section
