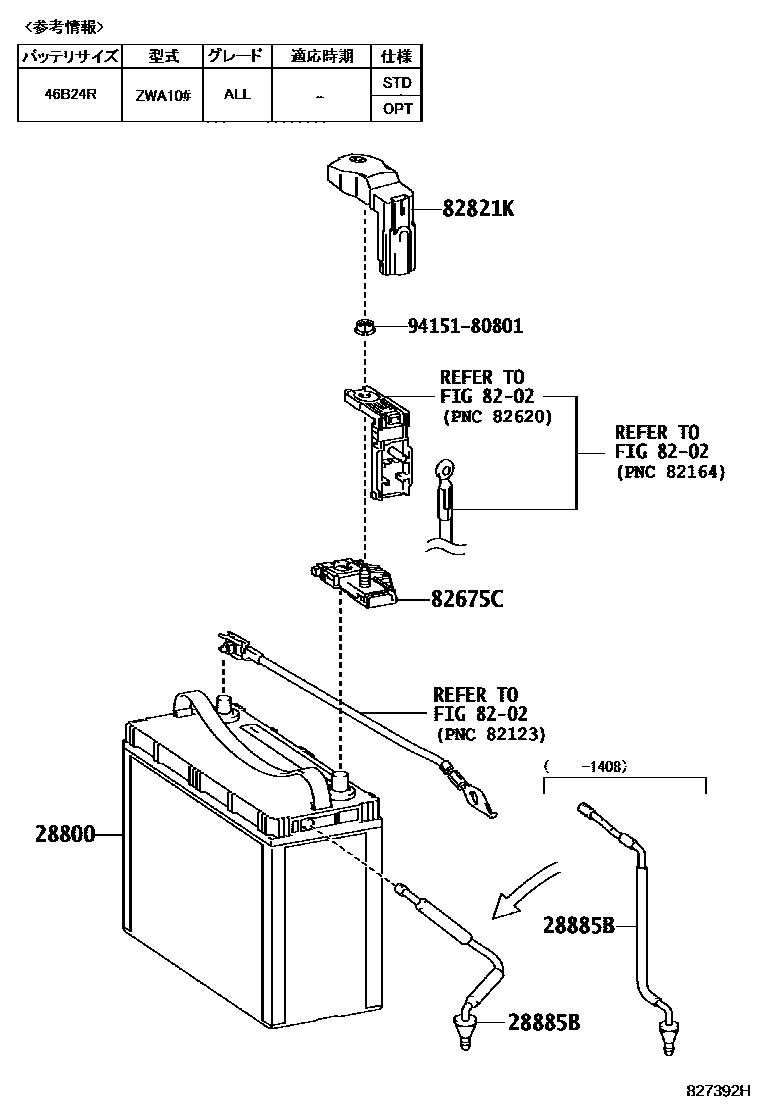

BATTERY & BATTERY CABLE

0001 112V����� 0002 1HV����� 0003 1HV����� 0004 1HV�����

28800BATTERY

main28800-37070i2ZRFXE..ZWA10201012-202312

28885BHOSE, BATTERY

main28885-37020i2ZRFXE..ZWA10201012-201408

main28885-37090i2ZRFXE..ZWA10201408

8202WIRING & CLAMP

→ Go to FIG 82-02

82675CTERMINAL, JUNCTION

main82675-76010iZWA10201012-201312

82821KCOVER, CONNECTOR

main82821-47110iZWA10201012-201408

main82821-76050iZWA10201408

9415180801

main94151-80801

6 parts on this diagram · 4 diagrams in section
