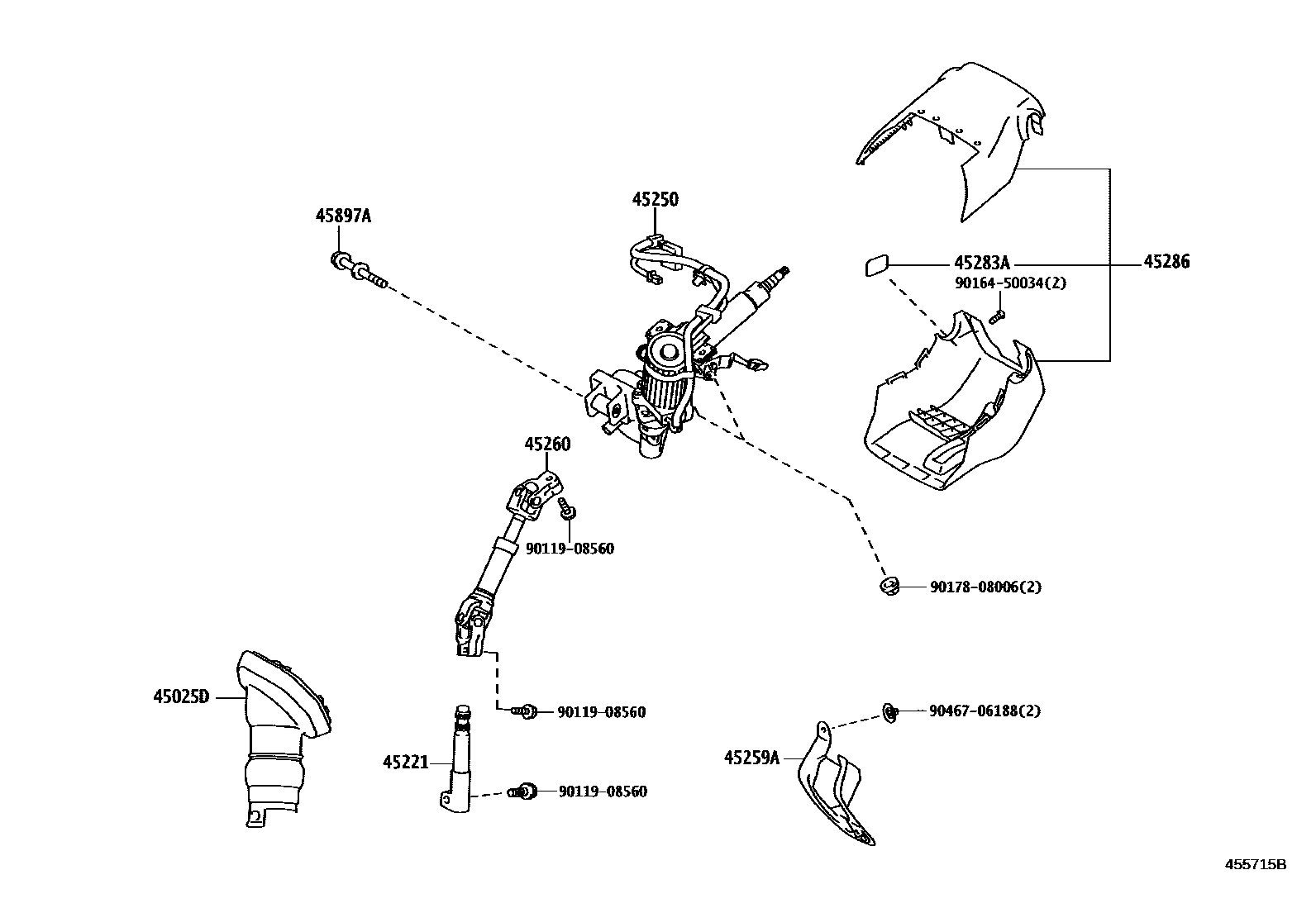

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12280iZWA10201012-201312

45221SHAFT, STEERING INTERMEDIATE

main45221-12330iZWA10201012-201312

45250COLUMN ASSY, STEERING

main45250-76060iZWA10201012-201312

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12050iZWA10201012-201312

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-76010iZWA10201012-201207

main45260-76020iZWA10201208-201312

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iZWA10201012-201312

45286COVER, STEERING COLUMN

main45024-76901iZWA10201012-201208

main45024-76901-C0iZWA10201208-201312

BLACK,TRIM0#,2#,3#,4#,8#

main45286-76901-C0iZWA10..B; ZWA10..E201902

BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,3#,4#,8#

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZWA10201012-201209

main90119-10980iZWA10201210-201312

9011908560

main90119-08560

9016450034

main90164-50034

9017808006

main90178-08006

9046706188

main90467-06188

12 parts on this diagram · 1 diagram in section
