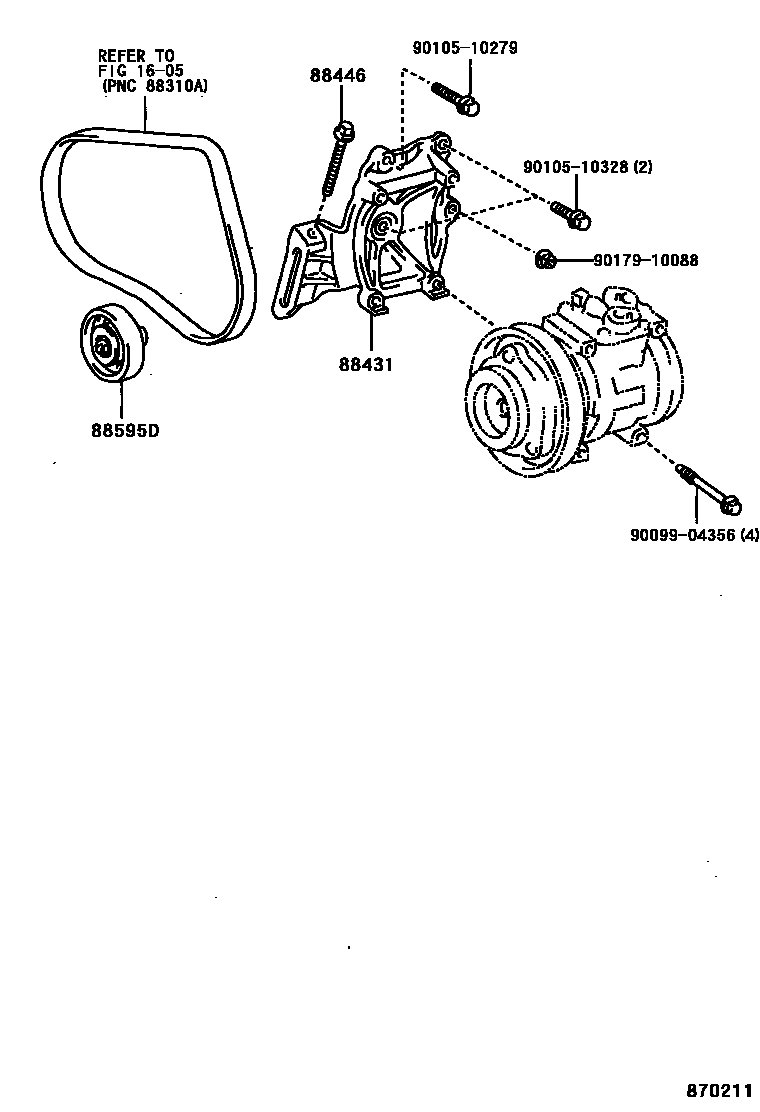

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

1605V-BELT

→ Go to FIG 16-05

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-20340iAT210199608

main88431-20390iAT211,212199608

88446BOLT, IDLE PULLEY

main88446-12030iAT211,212199609

main88446-35010iAT210199608

main88446-36010iAT211,212199608-199609

88595DPULLEY ASSY, IDLE

main88440-20160iAT211,212199608-199709

main88440-20170iAT211,212199710

main88440-32030iAT210199608

9009904356

main90099-04356

9010510279

main90105-10279

9010510328

main90105-10328

9017910088

main90179-10088

8 parts on this diagram · 5 diagrams in section
