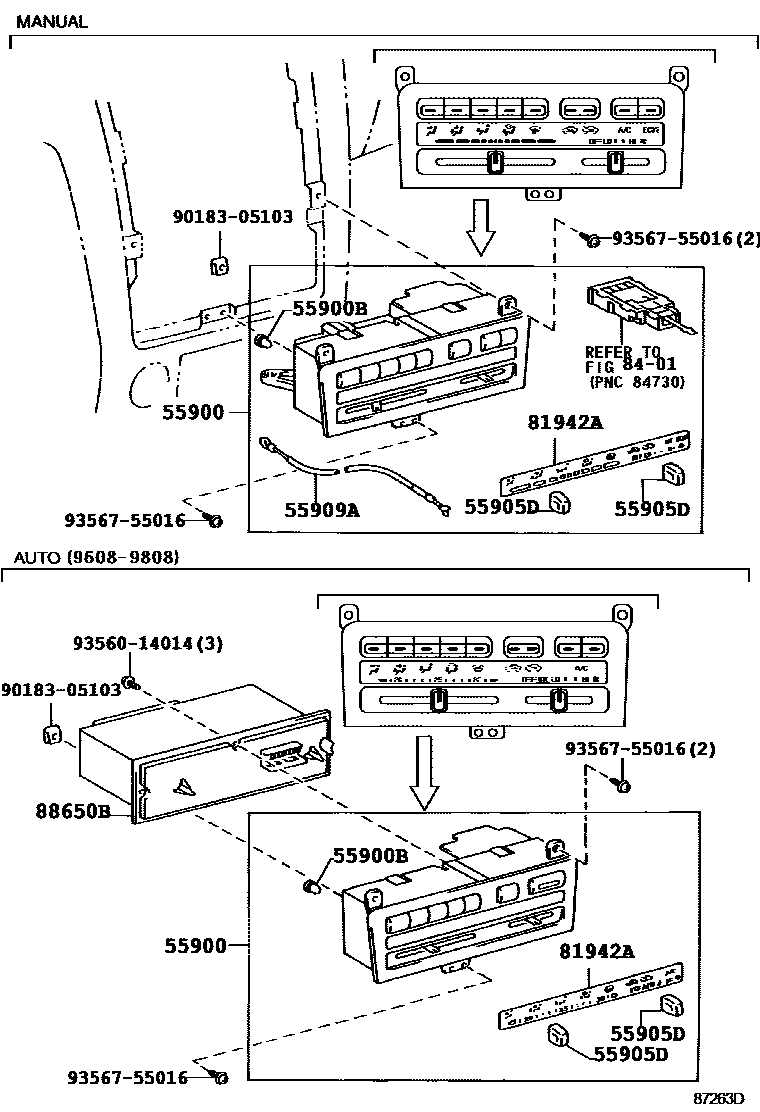

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1��� ���� 0003 1�� ���� 0004 1���

55900CONTROL ASSY, AIR CONDITIONER

main55900-2B120iAT211,212199808

main55900-2B130iCT21#,ST215199808

main55900-2B350iAT210,212,CT21#199608-199808

main55900-2B360iAT21#,CT21#,ST215199704-199808

main55900-2B400iAT210199808

55900BBULB, AIR CONDITIONER CONTROL

main84999-70018×2iAT21#,CT21#,ST215199608-199808

main90010-05101×6iAT21#,CT21#,ST215199808

55905DKNOB SUB-ASSY, CONTROL

main55905-20380×2iAT21#,CT21#,ST215199608-199808

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20190iAT210,212,CT21#199608-199808

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-20470iAT210,212,CT21#199608-199808

main81942-20500iAT211,212,CT21#,ST215199608-199704

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-2B510iCT21#,ST215199608-199808

main88650-2B520iAT211199608-199808

main88650-2B530iAT212199608-199808

main88650-2B570iAT210199704-199808

9018305103

main90183-05103

9356014014

main93560-14014

9356755016

main93567-55016

10 parts on this diagram · 4 diagrams in section
