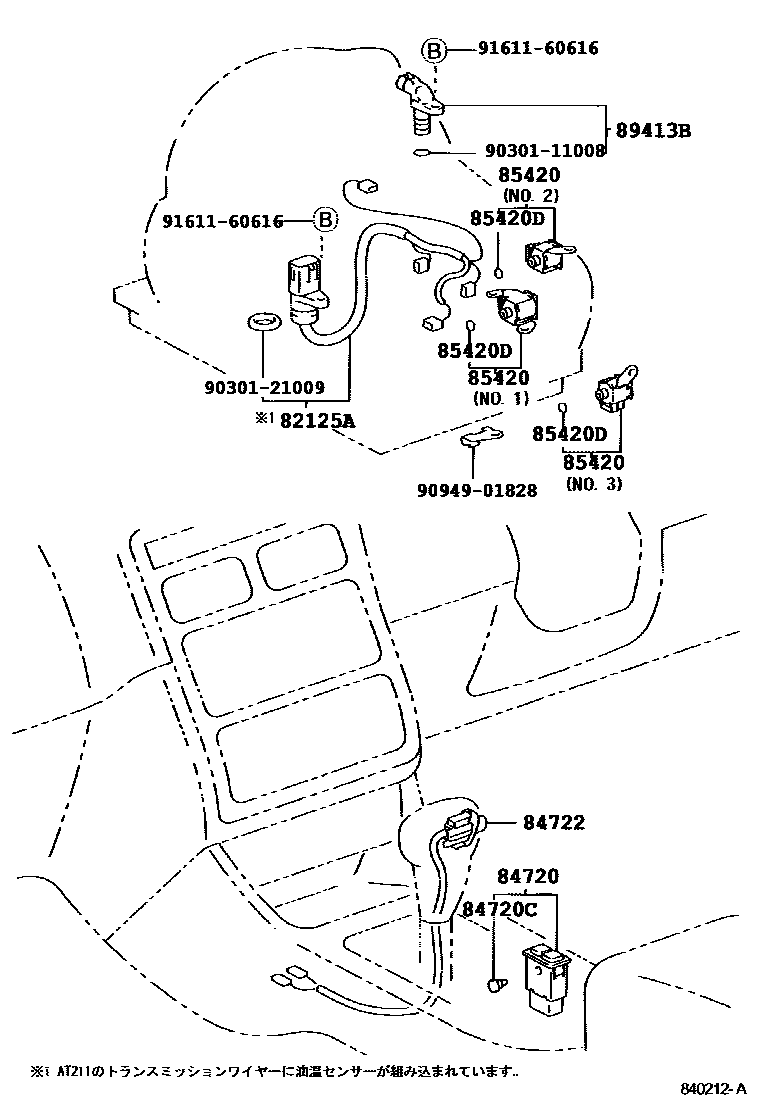

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1

82125AWIRE, TRANSMISSION

main82125-12350iAT210..4FC199608

main82125-20220iCT21#,ST215..4FC199808

main82125-20230iAT211..4FC199608

main82125-20240iAT212,CT210..4FC199608

main82125-32050iST215..4FC199608-199808

84720SWITCH ASSY, PATTERN SELECT

main84720-20170iAT210,211,ST215..4FC199608

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-20110iAT210,211,ST215..4FC199608

84722SWITCH, TRANSMISSION CONTROL

main84722-20170-C0iAT211,212,CT210,ST215..4FC199608-199808

BLACK,TRIM1#,4#

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iAT210,211..4FC199608-199809

main85420-12120iAT210,211..4FC199608-199809

main85420-12140iAT210..4FC199608-199809

main85420-20140iCT211..4FC199808-199809

main85420-20160iAT211..4FC199608-199809

main85420-20180iAT212,CT210..4FC199608-200112

main85420-21010iAT210,211..4FC199809-200112

main85420-21020iAT210,211..4FC199809-200112

main85420-21030iAT210,211..4FC199809-200112

main85420-21040iAT210,211..4FC199809-200112

main85420-21050iAT210..4FC199809-200112

main85420-21060iAT210..4FC199809-200112

main85420-21070iCT216,ST215..4FC199808-200112

main85420-21080iCT211..4FC199809-199810

main85420-21090×2iCT211..4FC199809-200112

main85420-21100×2iCT211..4FC199809-200112

main85420-21110iAT211..4FC199809-200112

main85420-21120iAT211..4FC199809-200112

main85420-30200iCT211..4FC199808-199809

main85420-32102iST215..4FC199608-199808

main85420-32111iST215..4FC199701-199808

main85420-32120iST215..4FC199608-199701

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iAT210,211,CT211,216,ST215..4FC; AT212,CT210..4FC199608

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-20010iAT211..4FC199802

main89413-32010iAT211..4FC199608-199802

9030111008

main90301-11008

9030121009

main90301-21009

9094901828

main90949-01828

9161160616

main91611-60616

11 parts on this diagram · 4 diagrams in section
