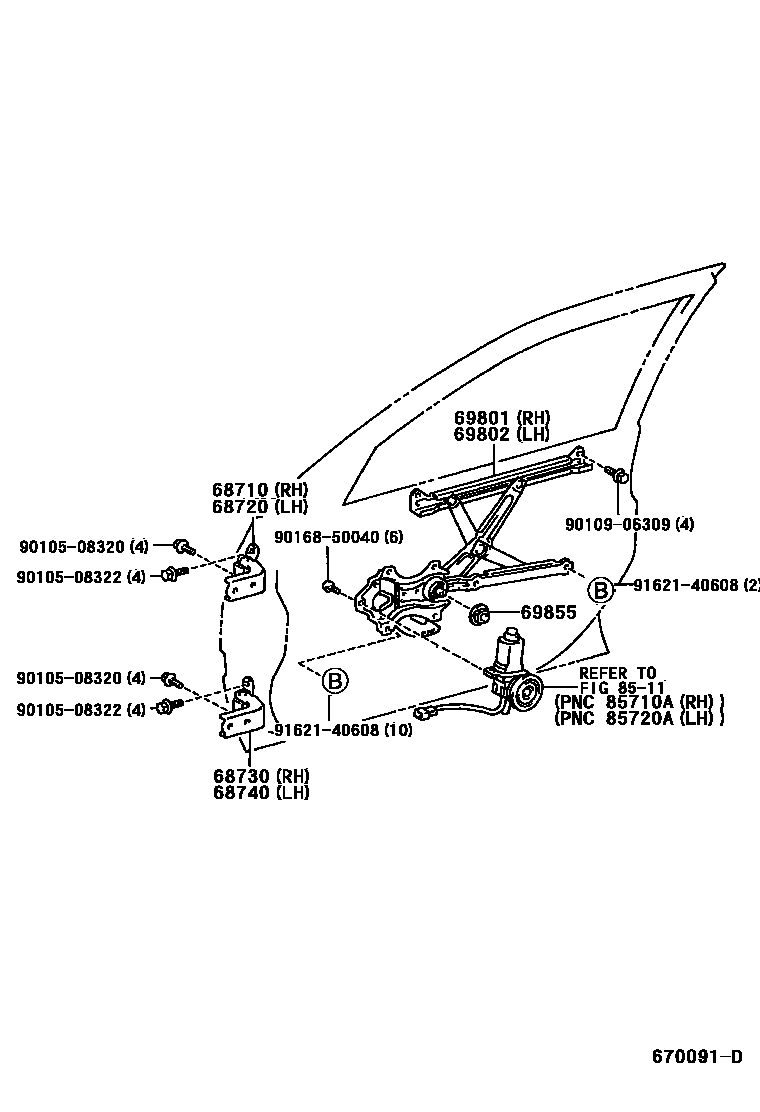

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68740-12110iAT21#,CT21#,ST215199608

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-12110iAT21#,CT21#,ST215199608

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12150iAT21#,CT21#,ST215199608

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12150iAT21#,CT21#,ST215199608

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20280iAT21#,CT21#,ST215199608

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20300iAT21#,CT21#,ST215199608

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2iAT21#,CT21#,ST215199608

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508320

main90105-08320

9010508322

main90105-08322

9010906309

main90109-06309

9016850040

main90168-50040

9162140608

main91621-40608

13 parts on this diagram · 1 diagram in section
