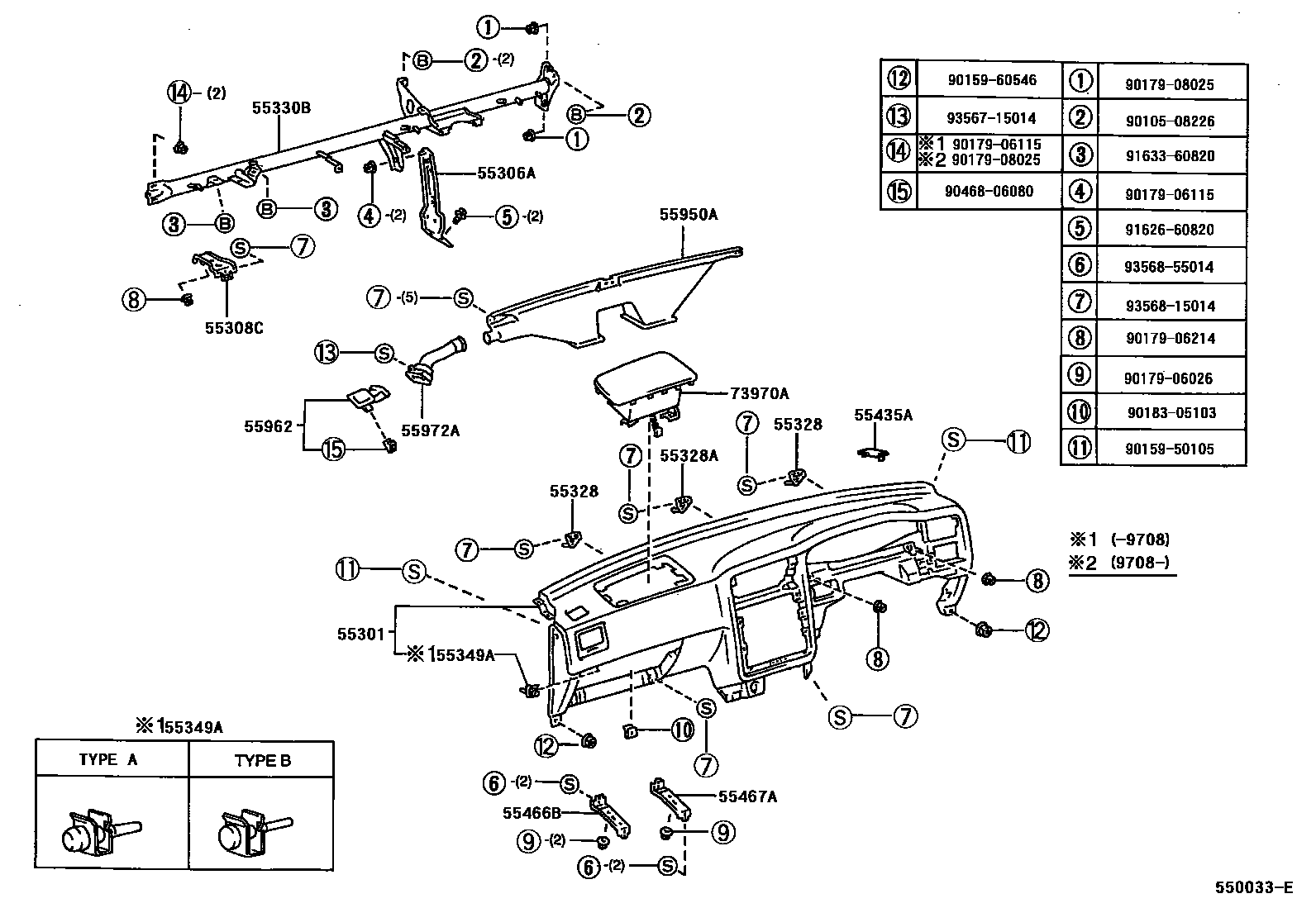

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
SHADOW GRAY,TRIM13
DK.CHARCOAL,TRIM12
ANTELOPE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55328PIN, INSTRUMENT PANEL, NO.1
55328ASTAY, INSTRUMENT PANEL, NO.3
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55435APANEL, INSTRUMENT PANEL FINISH, END RH
SHADOW GRAY,TRIM1#
DK.CHARCOAL,TRIM12
ANTELOPE,TRIM4#
55466BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.1
55467ARETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2
55950ANOZZLE ASSY, DEFROSTER
55962NOZZLE, SIDE DEFROSTER, NO.2
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM13
DK.CHARCOAL,TRIM12
ANTELOPE,TRIM4#
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
SHADOW GRAY,TRIM1#
ANTELOPE,TRIM4#
SHADOW GRAY,TRIM13
DK.CHARCOAL,TRIM12
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM13
DK.CHARCOAL,TRIM12
9010508226
main90105-08226
9015950105
main90159-50105
9015960546
main90159-60546
9017906026
main90179-06026
9017906115
main90179-06115
9017906214
main90179-06214
9017908025
main90179-08025
9018305103
main90183-05103
9046806080
main90468-06080
9162660820
main91626-60820
9163360820
main91633-60820
9356715014
main93567-15014
9356815014
main93568-15014
9356855014
main93568-55014
28 parts on this diagram · 2 diagrams in section
