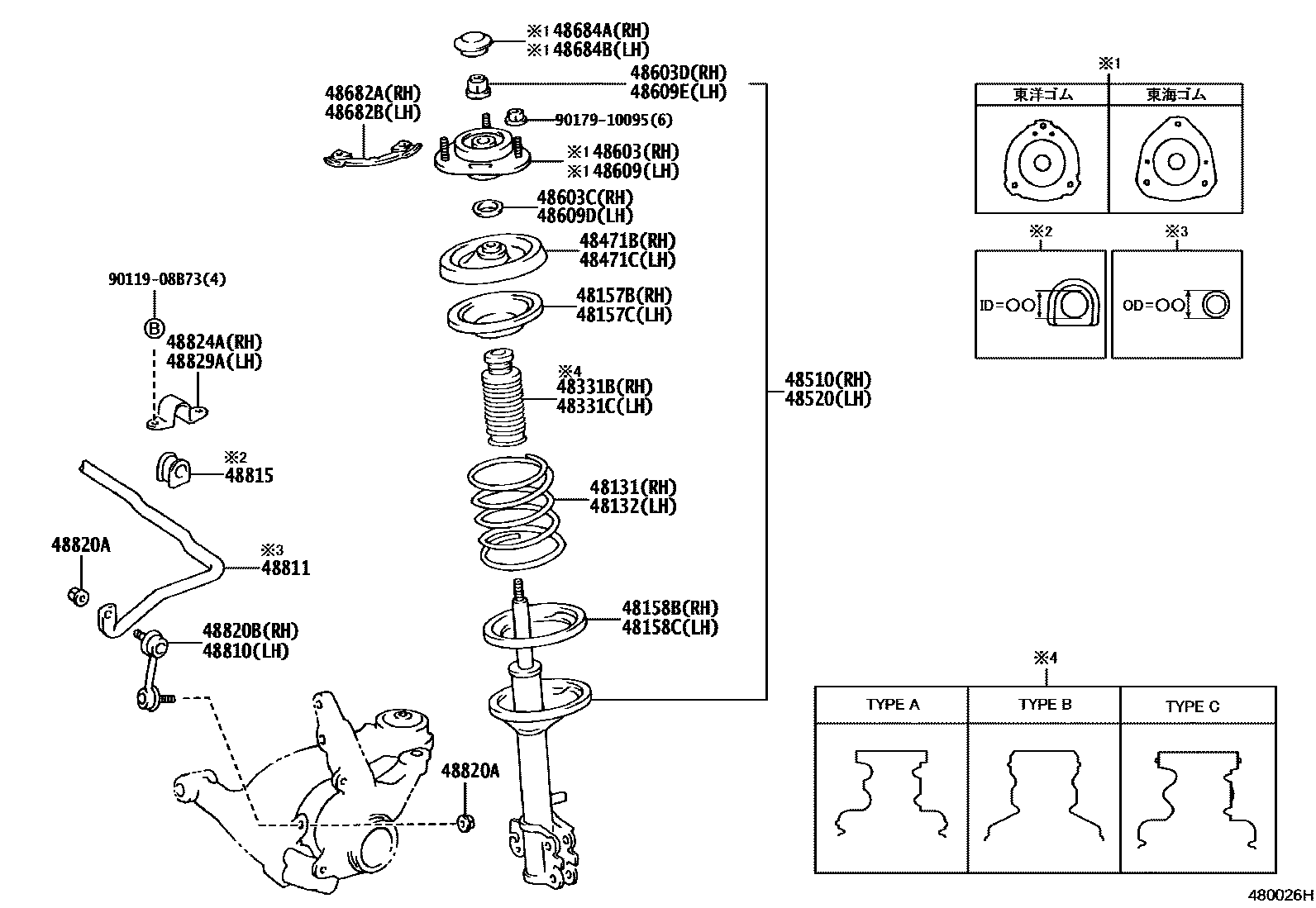

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-21110iCT215;CT210,216..4FC;ST215..4FC..SI199608-199912

main48131-21250iAT21#..MTM199912

main48131-21260iAT21#..4FC199912

main48131-21270iCT211..5F199912

main48131-21280iST215..5F199912

main48131-21290iST215..4FC199912

main48131-21300iCT216199912

main48131-21310iCT211..4FC199912

main48131-2P040iST215..5F199808-199912

main48131-2P060iCT210,211..5F;ST215..5F..SI199608-199912

main48131-2P510iCT211,ST215..4FC199808-199912

main48131-2P660iAT210..6F199808-199912

main48131-2P680iAT210..4FC199808-199912

main48131-2S570iAT21#..5F199608-199912

main48131-2S580iAT21#..4FC199608-199808

48132SPRING, FRONT COIL, LH

main48131-21110iCT215;CT210,216..4FC;ST215..4FC..SI199608-199912

main48131-21250iAT21#..MTM199912

main48131-21260iAT21#..4FC199912

main48131-21270iCT211..5F199912

main48131-21280iST215..5F199912

main48131-21290iST215..4FC199912

main48131-21300iCT216199912

main48131-21310iCT211..4FC199912

main48131-2P040iST215..5F199808-199912

main48131-2P060iCT210,211..5F;ST215..5F..SI199608-199912

main48131-2P510iCT211,ST215..4FC199808-199912

main48131-2P660iAT210..6F199808-199912

main48131-2P680iAT210..4FC199808-199912

main48131-2S570iAT21#..5F199608-199912

main48131-2S580iAT21#..4FC199608-199808

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12070iAT21#,CT21#,ST215199608

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12070iAT21#,CT21#,ST215199608

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-20080iAT21#,CT21#,ST215199608

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-20080iAT21#,CT21#,ST215199608

48331BBUMPER, FRONT SPRING, RH

main48331-12140iAT211,212199608

main48331-12150iAT210,CT21#,ST215199608

main48331-12151iAT210,CT21#,ST215199702

48331CBUMPER, FRONT SPRING, LH

main48331-12140iAT211,212199608

main48331-12150iAT210,CT21#,ST215199608

main48331-12151iAT210,CT21#,ST215199702

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-20040iAT21#,CT21#,ST215199608

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-20040iAT21#,CT21#,ST215199608

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-29395iAT212199808

main48510-29396iAT211,212199608-199706

main48510-29405iCT210199608-199801

main48510-29406iCT210199801-199808

main48510-29415iCT215,ST215199608-199712

main48510-29535iAT210199608-199801

main48510-29536iAT210199801-199808

main48510-29625iAT211,212199706

main48510-29645iCT215,ST215199712-199801

main48510-29646iCT215,ST215199801-199808

main48510-29675iCT211199808

main48510-29685iAT210199808

main48510-29695iCT216,ST215199808-199912

main48510-29775iCT216,ST215199912

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-29205iAT212199808

main48520-29206iAT211,212199608-199706

main48520-29215iCT210199608-199801

main48520-29216iCT210199801-199808

main48520-29225iCT215,ST215199608-199712

main48520-29315iAT210199608-199801

main48520-29316iAT210199801-199808

main48520-29335iAT211,212199706

main48520-29355iCT215,ST215199712-199801

main48520-29356iCT215,ST215199801-199808

main48520-29385iCT211199808

main48520-29395iAT210199808

main48520-29415iCT216,ST215199808-199912

main48520-29485iCT216,ST215199912

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-20410iST215..SI;AT211,212,CT210,211,215199608

main48609-20420iST215..SI;AT211,212,CT210,211,215199608

main48609-20430iAT210199608-199808

main48609-20460iAT210199808

main48609-21020iCT216,ST215199808

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAT21#,CT21#,ST215199608

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAT21#,CT21#,ST215199608-199808

main94184-61401iAT21#,CT21#,ST215199808

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-20410iST215..SI;AT211,212,CT210,211,215199608

main48609-20420iST215..SI;AT211,212,CT210,211,215199608

main48609-20430iAT210199608-199808

main48609-20460iAT210199808

main48609-21020iCT216,ST215199808

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAT21#,CT21#,ST215199608

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAT21#,CT21#,ST215199608-199808

main94184-61401iAT21#,CT21#,ST215199808

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-20020iAT21#,CT21#,ST215199608-199808

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-20020iAT21#,CT21#,ST215199608-199808

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-20020iST215..SI;AT211,212,CT210,211,215199608

main48684-20060iAT210199608-199808

main48684-32010iAT210199808

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-20020iST215..SI;AT211,212,CT210,211,215199608

main48684-20060iAT210199608-199808

main48684-32010iAT210199808

48810LINK ASSY, FRONT STABILIZER, LH

main48810-20020iAT21#,CT21#,ST215199608

48811BAR, STABILIZER, FRONT

main48811-20760iCT215,216,ST215199608

main48811-20890iAT211,212,CT210199608-199808

main48811-44010iAT210199608-199808

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20060×2iAT211,212,CT210199608-199808

ID=21

main48815-30040×2iCT216,ST215199808

main48815-44010×2iAT21#,CT211199808

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183×4iAT21#,CT21#,ST215199608

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-20040iAT21#,CT21#,ST215199608

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-20080iCT216,ST215199808

main48824-44010iAT210199608-199808

main48824-44020iAT21#,CT211200004

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-20080iCT216,ST215199808

main48824-44010iAT210199608-199808

main48824-44020iAT21#,CT211200004

9011908B73

main90119-08B73

9017910095

main90179-10095

31 parts on this diagram · 1 diagram in section
