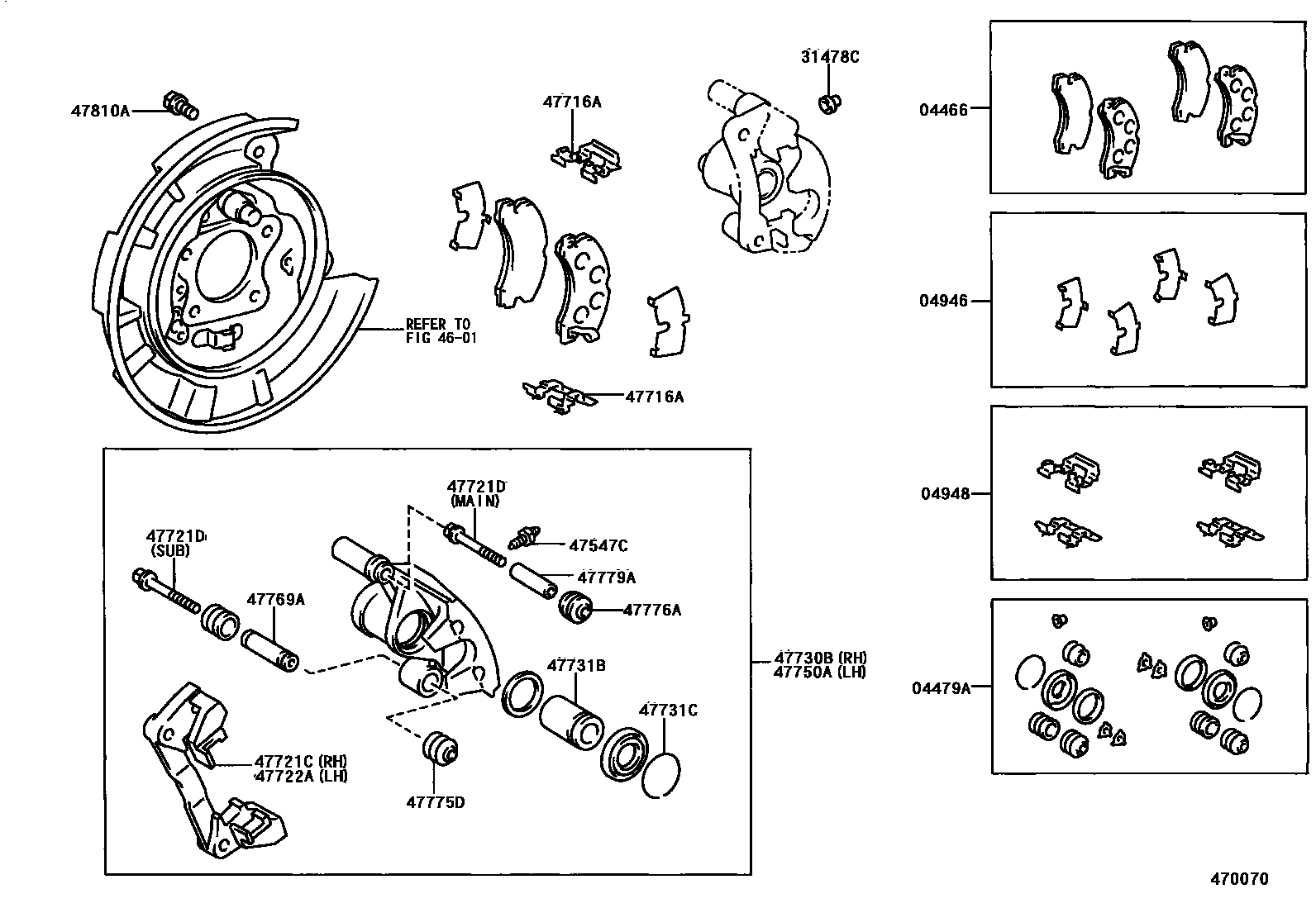

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-20020iAT210199608

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20090iAT210199608-199808

main04479-32100iAT210199808

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12020iAT210199608

04948FITTING KIT, DISC BRAKE, REAR

main04948-12020iAT210199608

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iAT210199608

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iAT210199608

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-12020×4iAT210199608

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20430iAT210199608

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098×2iAT210199608

main90119-08431×2iAT210199608

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20430iAT210199608

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20420iAT210199608-199808

main47730-20540iAT210199808

47731BPISTON, REAR DISC BRAKE

main47731-20110×2iAT210199608-199808

main47731-20210×2iAT210199808

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-45001×2iAT210199608

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20420iAT210199608-199808

main47750-20540iAT210199808

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010×2iAT210199608

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010×2iAT210199608

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12020×2iAT210199608

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010×2iAT210199608

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379×4iAT210199608

20 parts on this diagram · 1 diagram in section
