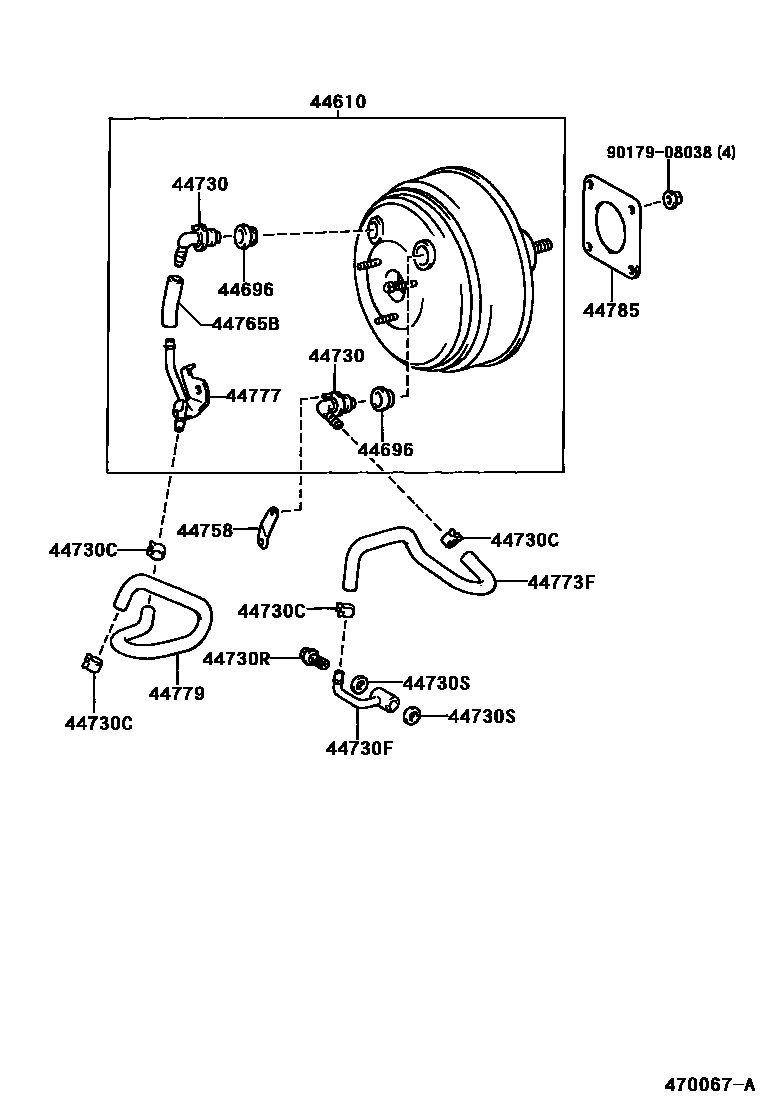

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-21030iCT216199808

main44610-21040iST215199808

main44610-21070iAT211,212199808

main44610-2D750iAT211,212199608-199808

main44610-2D760iCT210199608-199808

main44610-2D770iCT215199608-199808

main44610-2D810iST215199608-199808

main44610-2D830iAT212199711

main44610-2D840iAT210199608-199808

main44610-2D860iAT210199808

main44610-2D880iCT211199808

44696GROMMET, CHECK VALVE

main90480-24439iAT211,212; ST215199808

main90480-24517iAT210199711-199808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iAT211,212; ST215199808

main44730-20150iAT210199608-199808

main44730-28010iST215199608-199711

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×4iAT210,CT210,215; AT211,212,CT211,216,ST215199608

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAT211,212,ST215199608

main90405-09162iAT210199608

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-10054iAT210199608

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-10015×2iAT210199608

44758BRACKET, VACUUM CHECK VALVE

main44758-20230iAT210,ST215199608

main44758-20290iAT211,212199608

44765BHOSE, CONNECTOR TO BRAKE BOOSTER

main90445-17044iAT210199608

44773FHOSE, UNION TO CHECK VALVE

main44773-20810iAT211,212199608

main44773-21040iCT21#199808

main44773-2B060iCT21#199608-199808

main44773-2B070iST215199608

main44773-2B100iAT210199608

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-20090iAT210199608

44779HOSE, UNION TO CONNECTOR

main44773-2B110iAT210199608

44785GASKET, BRAKE BOOSTER

main44785-20020iAT21#,CT21#,ST215199608

9017908038

main90179-08038

14 parts on this diagram · 4 diagrams in section
